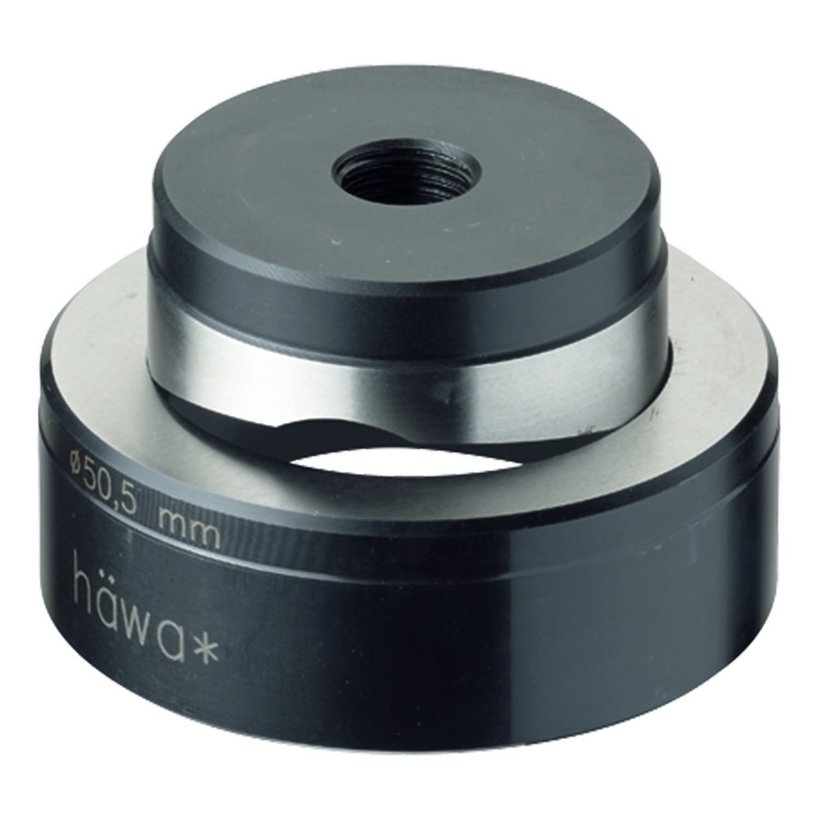

Round Punches with 72 mm External Die Diameter

2643-0240-20-00

Round Punches with 72 mm External Die Diameter

  • Long lifetime
  • Maximum productivity with minimum effort

Product description

For the use in bow punches

Low tool wear through optimum cutting geometry

Quick, precise and burr-free punching.

Technical Data

  • Order No.: 2643-0240-20-00
  • Max. sheet metal thickness: Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 3,5 mm - see note
  • PRODUKTFAMILIE: For workshop equipment
  • Type: For Maxi-Press 500
  • Diameter of the die holder: 72 mm
  • Size: ø 40,2 mm
  • 1 round punch, consisting of punch and die
Round Punch Rubber Wipers for Bow Punches
2680-0900-40-20
Round Punch Rubber Wipers for Bow Punches
Product range
For workshop equipment
For punch size
40.2 mm
Maxi-Press 500
2643-7106-00-00
Maxi-Press 500
Application
Punching of cut-outs
Suitable for
round punches up to ø 63.5 mm / square punches up to 46 mm / rectangular punches up to 60 mm diagonal
Material thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 4 mm
Punch holder
ø 20 mm
Processing depth
500 mm
Round Punches with 72 mm External Die Diameter
Round Punches with 72 mm External Die Diameter
For the use in bow punches
Low tool wear through optimum cutting geometry
Quick, precise and burr-free punching.

notice
For workshop equipment
For Maxi-Press 500
ø 45,5 mm
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 3,5 mm - see note
For workshop equipment
For Maxi-Press 500
ø 47 mm
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 3,5 mm - see note
For workshop equipment
For Maxi-Press 500
ø 50,2 mm
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 3,5 mm - see note
For workshop equipment
For Maxi-Press 500
ø 53,9 mm
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 3,5 mm - see note
For workshop equipment
For Maxi-Press 500
ø 60 mm
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 3,5 mm - see note
For workshop equipment
For Maxi-Press 500
ø 63,2 mm
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 3,5 mm - see note
