2643-0700-01-00

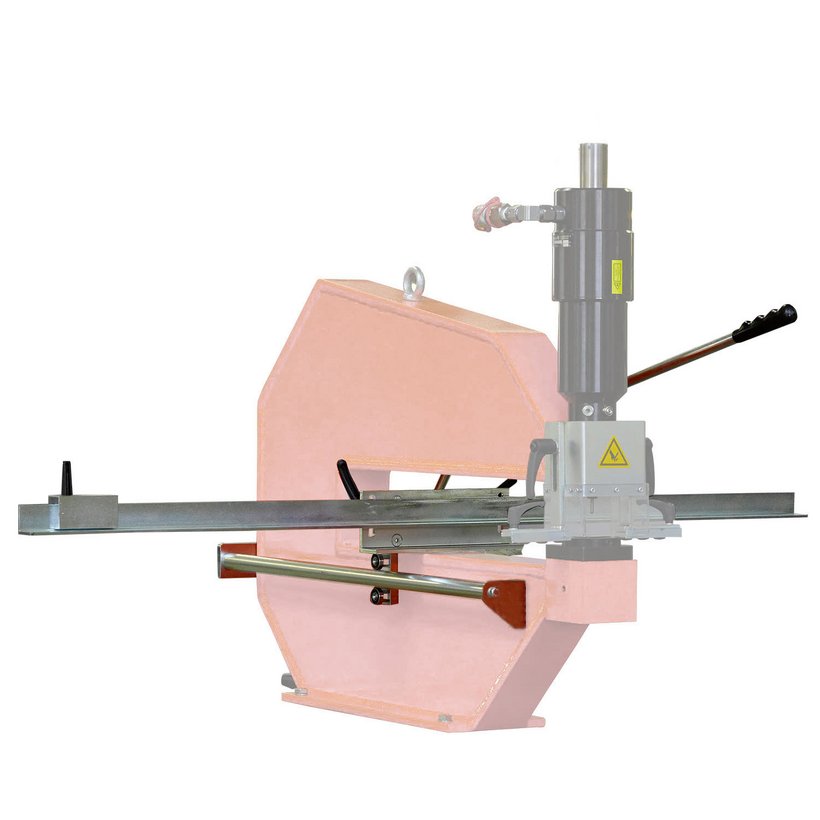

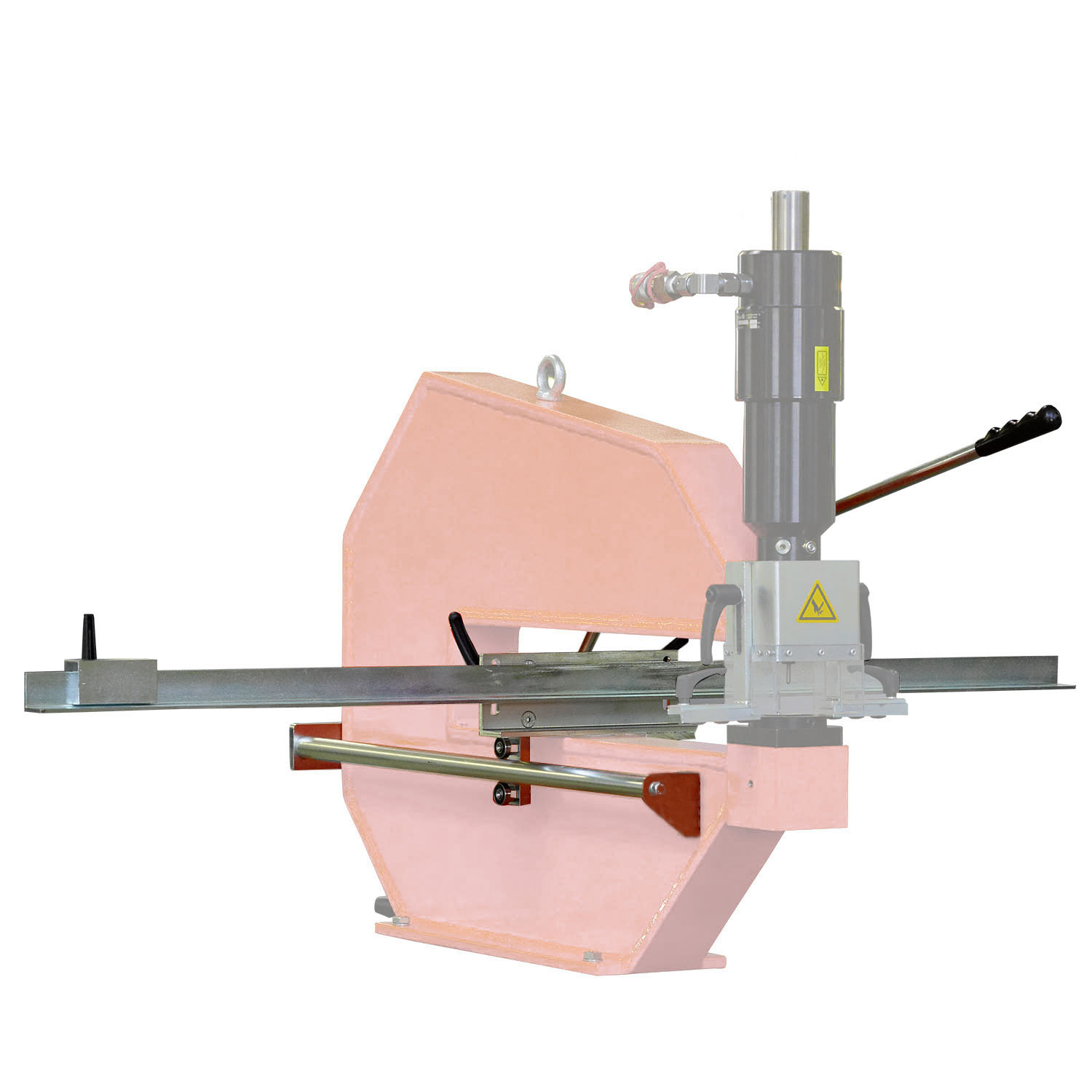

Length and Depth Stop for Maxi-Press 500
Product description
Angle profile, guided on slide bearings without measuring scale for attachment to Maxi-Press 500, is used as depth stop and workpiece support
Including two continuously adjustable (length) stop blocks with clamping lever
In order to be able to punch up to 30 mm / 1.18“, the angle profile can be also adjusted to height
The depth clamping of the stop is effected via a hand lever that can be reached easily from the front
Technical data
-
Article number: 2643-0700-01-00
-
Product family: For workshop equipment
-
PRODUKTGRUPPENNAMEEBENE6: Accessories Maxi-Press 500
-
Setting range: Adjustable up to 600 mm on both sides of the cylinder
Notice
- Mounting by qualified häwa personnel
- For on-site installation: travelling costs according to quotation
- 1 length and depth stop with two adjustable stop blocks and mounting hardware
2643-7105-00-00
Hydraulic Maxi-Press 500
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Processing depth
500 mm
Punch holder (diameter)
20 mm
2643-7106-00-00
Hydraulic Maxi-Press 500 with center point indicator
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Processing depth
500 mm
Punch holder (diameter)
20 mm
