3142-0148-00-07
Inlet Filters for IP 55 Protected Against Water Jets
- Protection class IP 55
- Maximum air flow with minimum size due to slanted filter pad position.
Product description
Protection cover either of powder coated sheet steel or externally brushed stainless steel.
For top mounting: protection class IP52. Depending on the mounting type, the air outlet can be adjusted to the front, sides or back.
Technical Data
-
Order No.: 3142-0148-00-07
-
Protection type: IP55
-
Type Rating: Type 12
-
Type: 0148
-
Material: Sheet steel
-

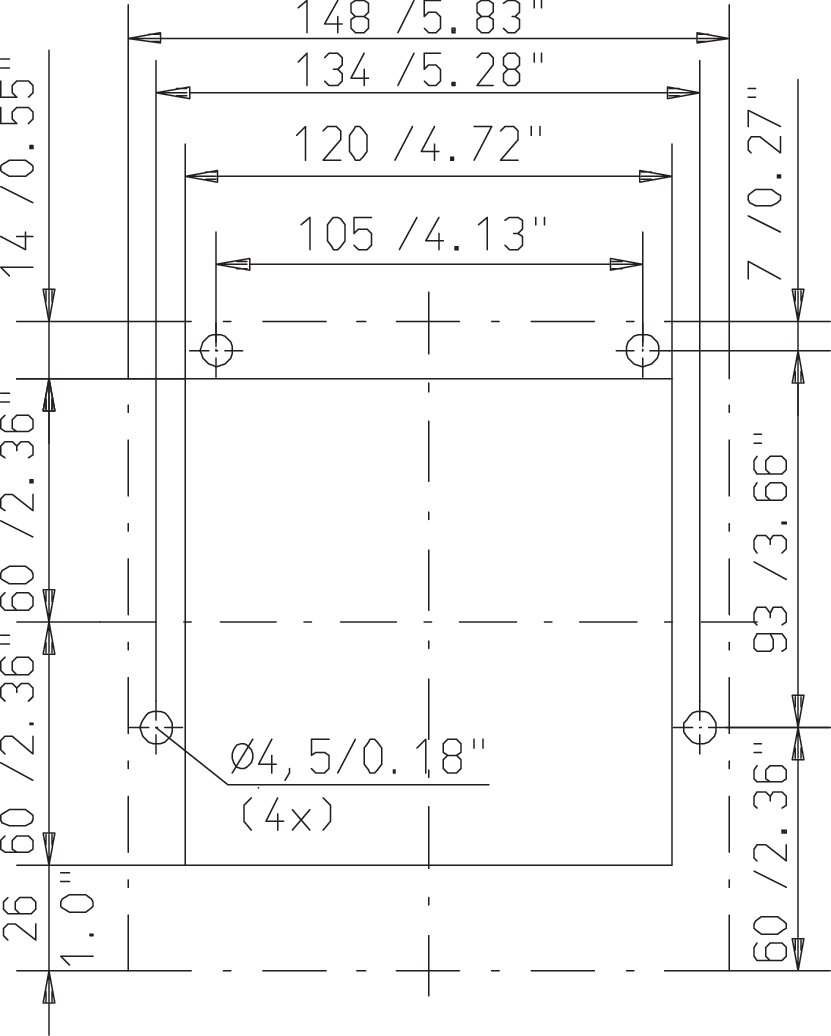

Cut-out: 148x148 mm/5.83"x5.83"
-
Approval: cURus
-
Weight: 0.52 kg
-
Dimension: Width : 148 mm Height : 160 mm Depth : 40 mm
-
Surface: RAL 7035
- Filter protection cover with foamed sealing, filter pad G4 with mounting hardware
Assembly instructions:
CAD data and other file formats:
