1204-1530-00-00

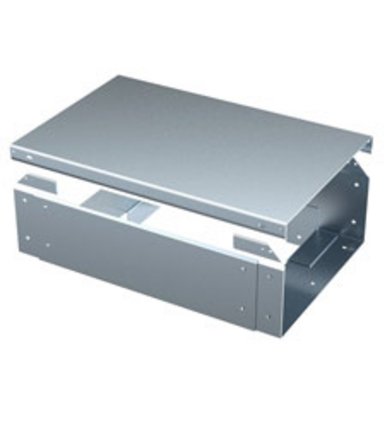

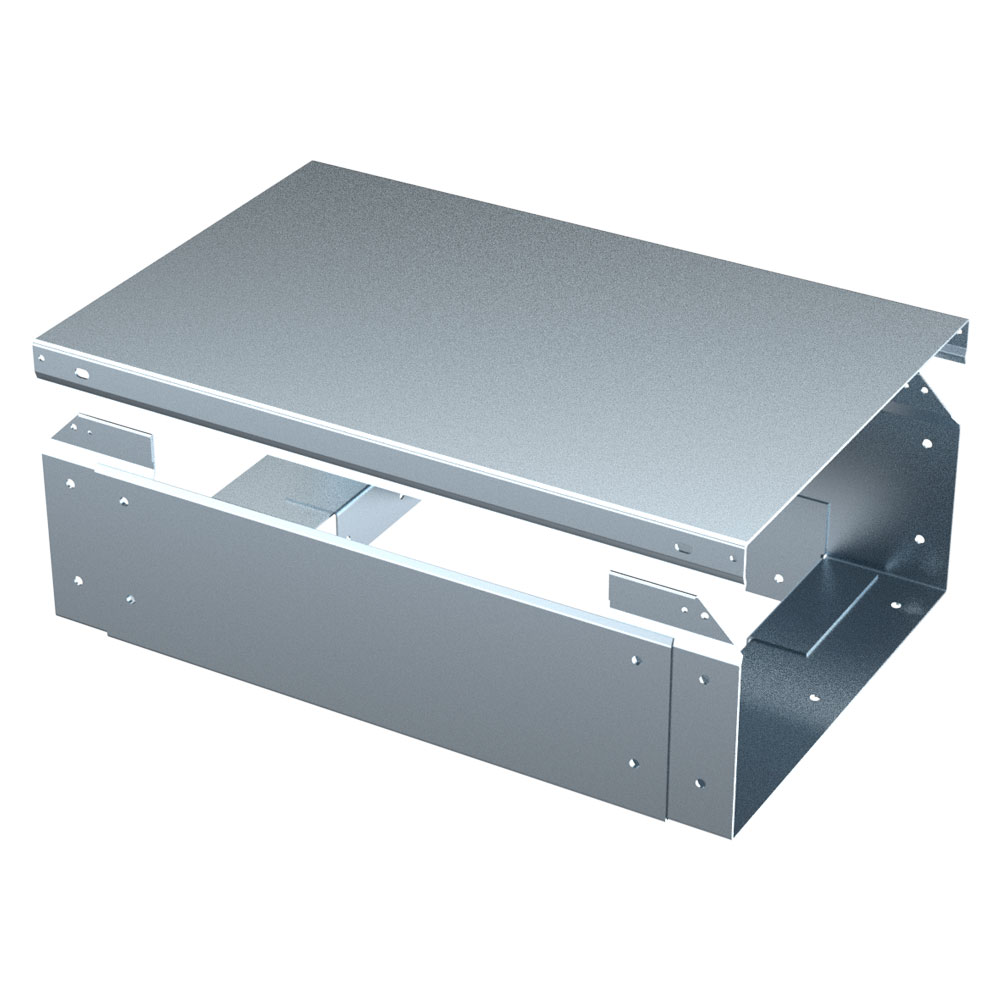

Reversing T-Section
- Continuously open insertion
Product description

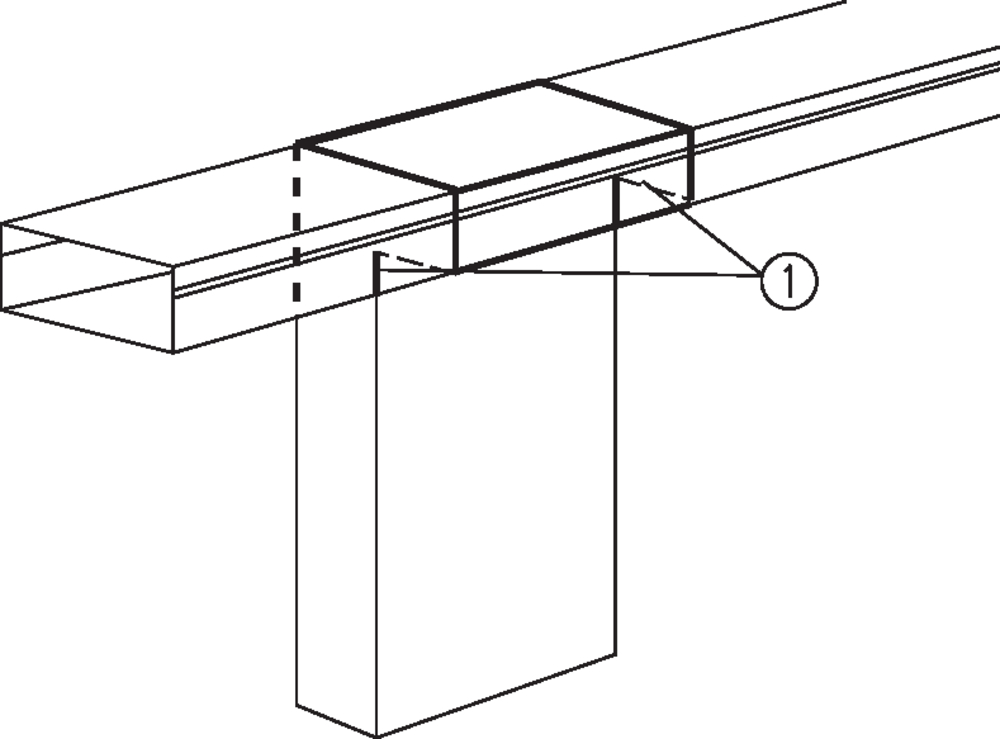

Vertical outlet from horizontal cable routing direction.
This form part has drillings for the connecting screws of the U-connections or connection brackets.
Technical Data
-
PRODUCT NUMBER: 1204-1530-00-00
-
Type: Cable duct system type 1204
-

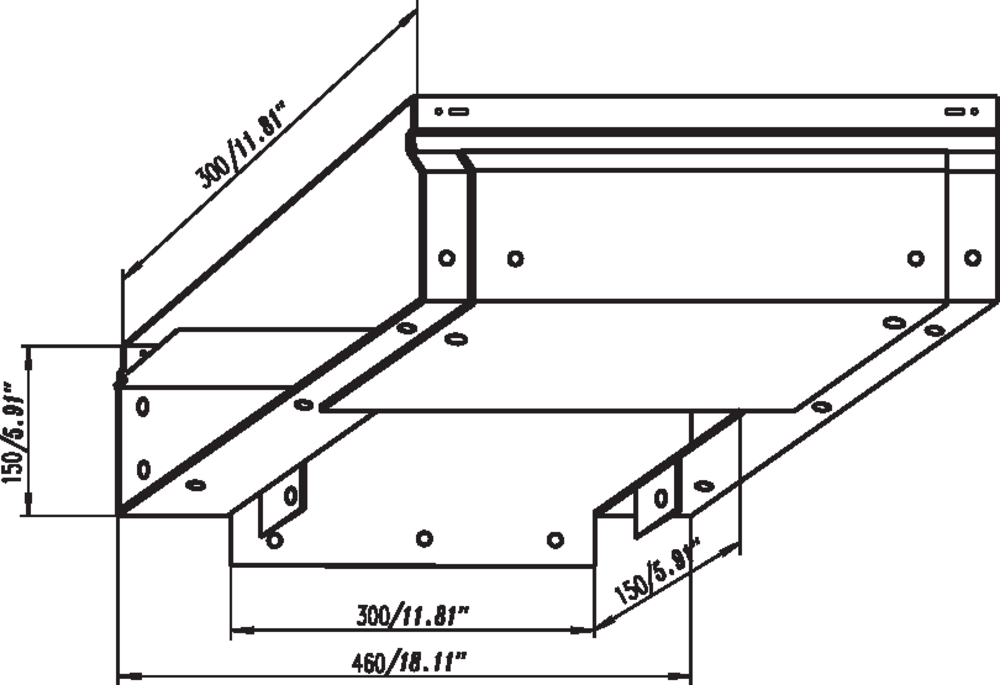

Cross-section: 11,81 x 5,91 inch
-
Protection type: IP2X
-
Material: Sheet steel
-
Surface: electrolytically-galvanised
-
Sheet thickness: 1,5 mm/0,0,6"
-
Weight: 5.3 kg
Notice
- U-brackets or connection brackets are required for assembly.
- The various connection options are shown in the catalog. See “Cable Duct Catalog" in the Download Center.
- Equipotential bonding must be provided by the customer. See “Protective conductor structure - xxx” in the Download Center.
- 1 reversing T-section with cover
1204-9001-05-08
Screw with Nut
Thread
M5
Length of thread L
8 mm
Material
Sheet steel
Surface
Galvanized
1204-9004-05-08
Screw with Washer
Thread
M5
Length of thread L
8 mm
Material
Sheet steel
Surface
Galvanized
1204-0030-05-00
Cable Duct
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Length
500 mm
Material
Sheet steel
1204-0030-10-00
Cable Duct
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Length
1000 mm
Material
Sheet steel
1204-0030-20-00
Cable Duct
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Length
2000 mm
Material
Sheet steel
1204-0330-90-00
Elbow
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Angle
90°
Routing direction
horizontal
Material
Sheet steel
1204-0430-00-00
T-Section
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Angle
90°
Routing direction
variable
Material
Sheet steel
1204-1330-00-90
Elbow
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Angle
90°
Material
Sheet steel
1204-1330-01-35
Elbow
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Angle
45°
Material
Sheet steel
1204-1330-02-25
Elbow
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Angle
45°
Material
Sheet steel
1204-1330-02-70
Elbow
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Angle
90°
Material
Sheet steel
