Reversing elbow

1204-1430-90-01

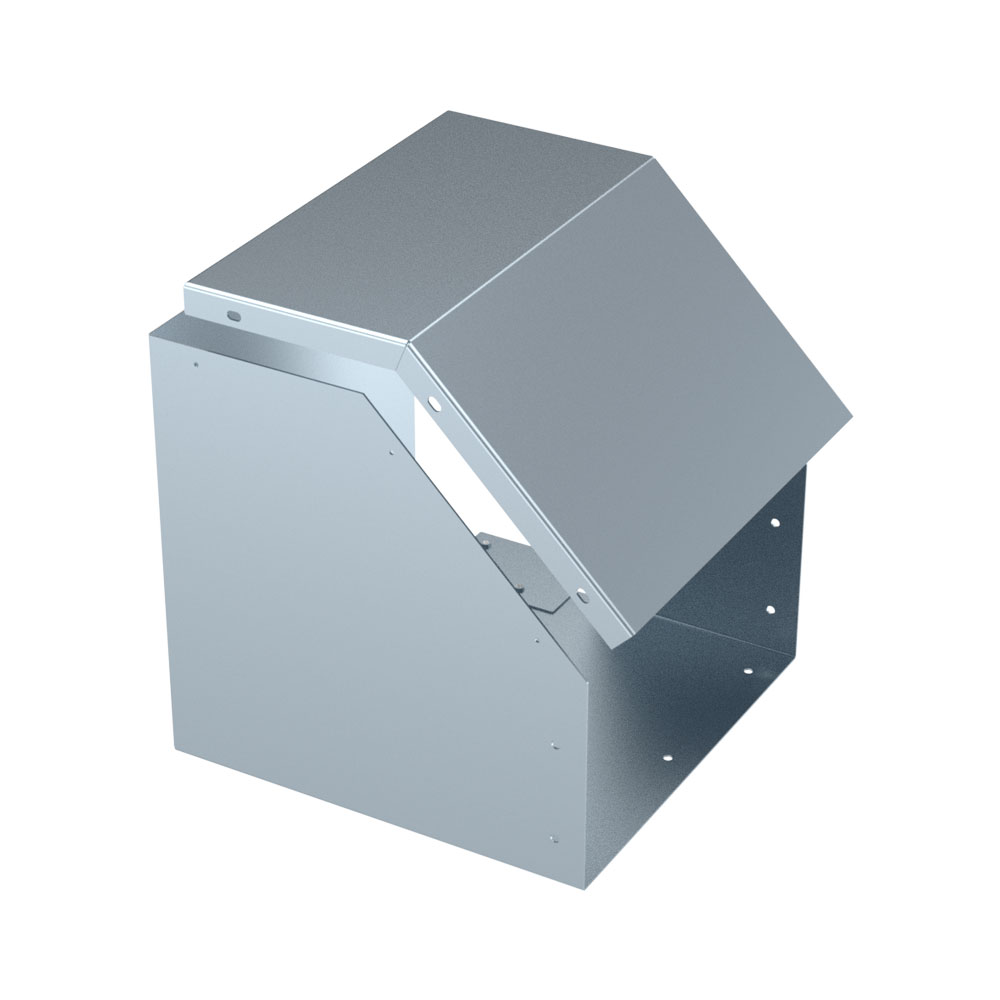

Reversing elbow

  • Continuously open insertion

Product description

For changing the profile from horizontal to vertical cable routing.

The snap-on cable duct covers require minimum space to open.

If necessary, they can be secured with screws after installation.

The cable duct ends are provided with pre-drilled holes for the attachment screws of U-brackets or connection brackets.

Technical data

  • Article number: 1204-1430-90-01
  • type: Cable duct system type 1204
  • PRODUKTGRUPPENNAMEEBENE4: Accessories Type 1204/1207

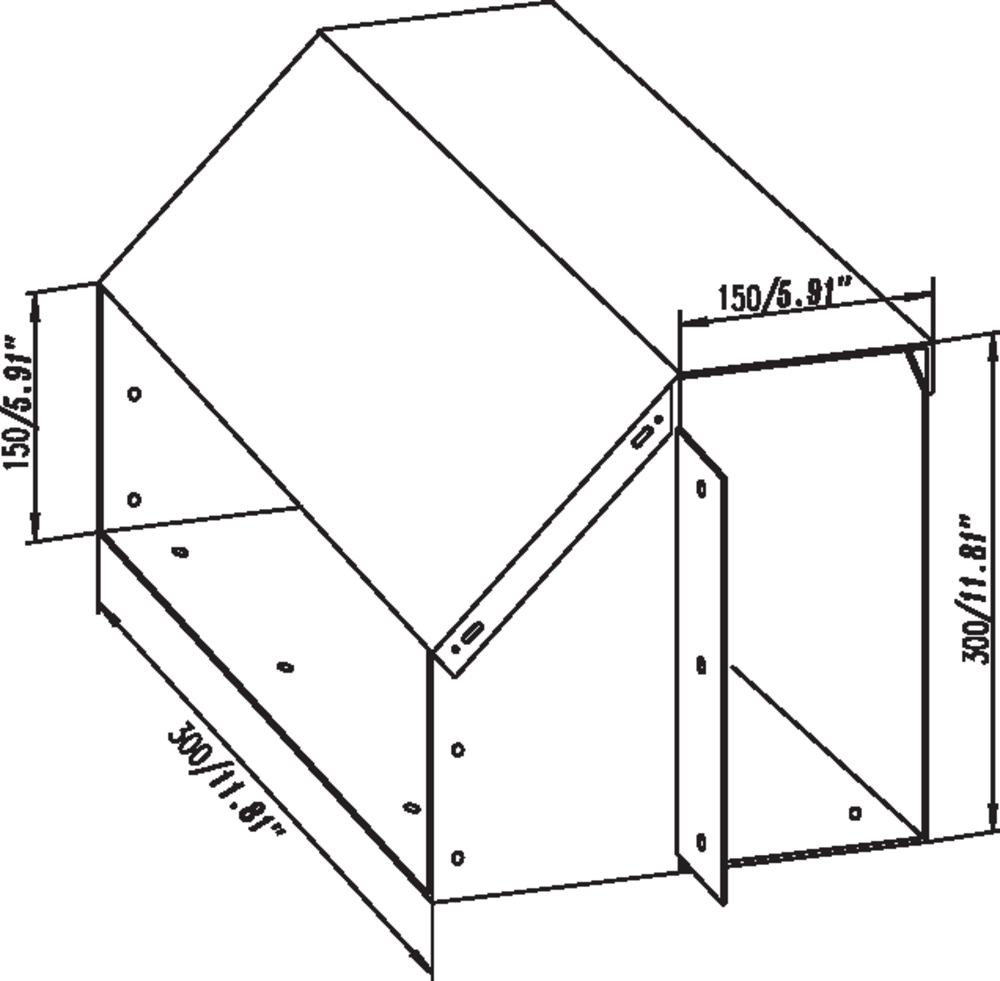

  • Cross section: 11,81 x 5,91 inch
  • WINKEL: 90°
  • VERLEGERICHTUNG: Outlet at right rear side
  • Protection class: IP2X
  • Material: Sheet steel
  • Surface: electrolytically-galvanised
  • Sheet thickness: 1,5 mm/0,0,6"
  • Weight: 5.05 kg

Notice

  • U-brackets or connection brackets are required for assembly to a cable duct or another accessory.
  • Depending on the angle and the design of the next connected accessory, attachment brackets with various angles are required.
  • The various connection options are shown in the catalog. See “Cable Duct Catalog" in the Download Center.
  • Equipotential bonding must be provided by the customer. See “Protective conductor structure - xxx” in the Download Center.
  • 1 reversing elbow with cover
Cable Duct
1204-0030-05-00
Cable Duct
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Length
500 mm
Material
Sheet steel
Cable Duct
1204-0030-10-00
Cable Duct
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Length
1000 mm
Material
Sheet steel
Cable Duct
1204-0030-20-00
Cable Duct
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Length
2000 mm
Material
Sheet steel
Elbow
1204-0330-13-00
Elbow
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Angle
45°
Routing direction
horizontal
Material
Sheet steel
Elbow
1204-0330-90-00
Elbow
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Angle
90°
Routing direction
horizontal
Material
Sheet steel
T-Section
1204-0430-00-00
T-Section
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Angle
90°
Routing direction
variable
Material
Sheet steel
Elbow
1204-1330-00-90
Elbow
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Angle
90°
Material
Sheet steel
Elbow
1204-1330-01-35
Elbow
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Angle
45°
Material
Sheet steel
Elbow
1204-1330-02-25
Elbow
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Angle
45°
Material
Sheet steel
Elbow
1204-1330-02-70
Elbow
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Angle
90°
Material
Sheet steel
Reversing elbow
Reversing elbow
For changing the profile from horizontal to vertical cable routing.
The snap-on cable duct covers require minimum space to open.
If necessary, they can be secured with screws after installation.
The cable duct ends are provided with pre-drilled holes for the attachment screws of U-brackets or connection brackets.

Remember
Cable duct system type 1204
11,81 x 5,91 inch
90°
Outlet at right rear side
Sheet steel
Cable duct system type 1204
11,81 x 5,91 inch
90°
Outlet at left rear side
Sheet steel
Cable duct system type 1207
11,81 x 5,91 inch
90°
Outlet at right rear side
Stainless steel no. 1.4301
Cable duct system type 1207
11,81 x 5,91 inch
90°
Outlet at left rear side
Stainless steel no. 1.4301
