0396-0020-40-63
Partition panel
Product description
Seperates individual units in modular cabinet suites. Protection class is maintained
Technical Data
-
PRODUCT NUMBER: 0396-0020-40-63
-
Dimension: Suitable for height : 2000 mm Suitable for depth : 400 mm
-
Protective ground connection: available
-
Surface: Galvanized
-
Material: Sheet steel
-
Weight: 5.8 kg
-
Sheet thickness: 1,5 mm/0,0,6"
-

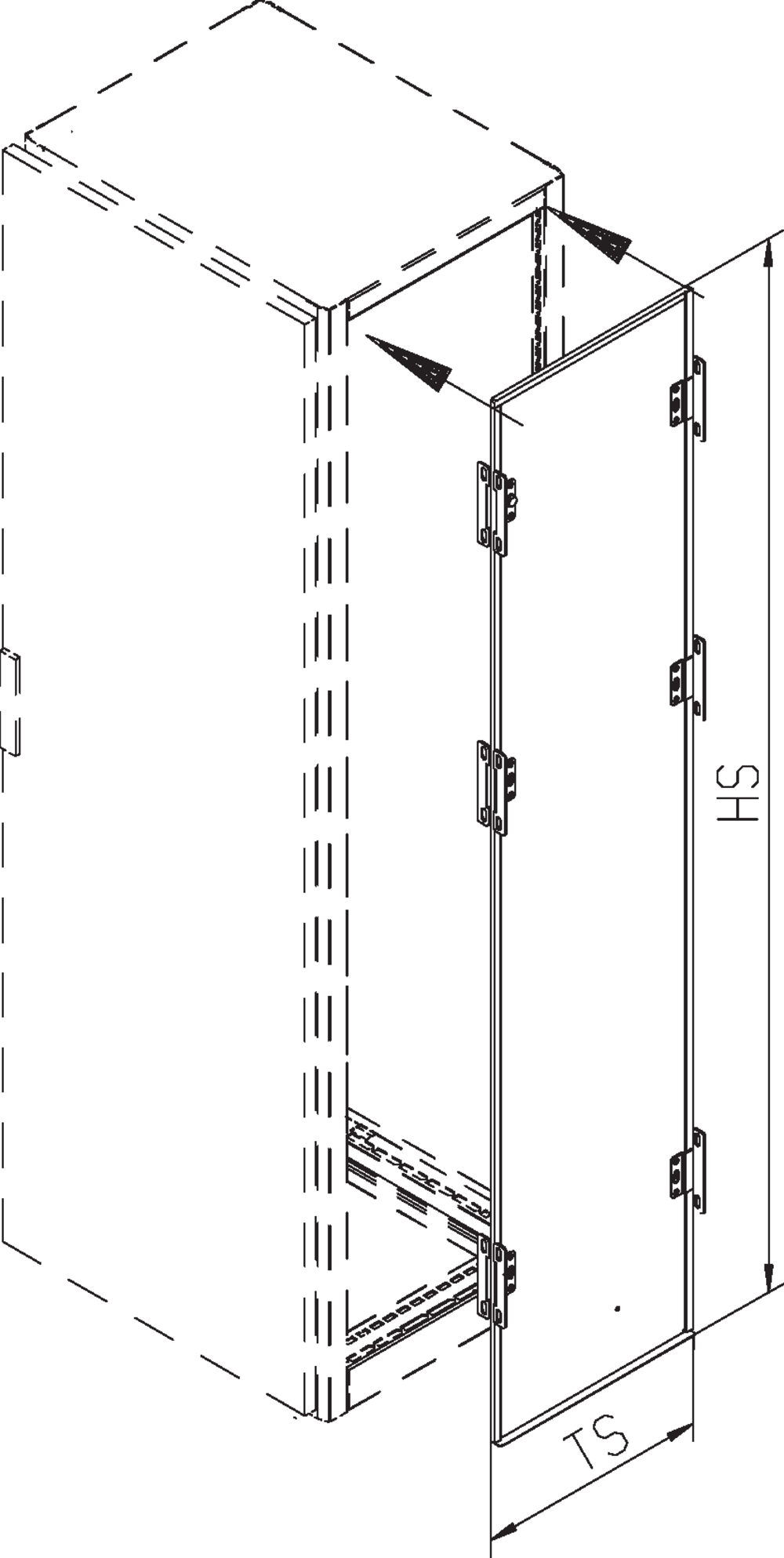

Dimension HS: 1888 mm
-
TS: 268 mm
Notice
- For connector set for partition panels, see accessories. Please use the standard connector set for reinforcing heavy modular cabinets or for transportation. The rubber gasket for modular assembly maintains the IP type rating.
- 1 partition panel wihout mounting hardware
0375-1020-40-00
Modular cabinets Stainless steel H375, single door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-1020-40-10
Modular cabinets Stainless steel H375, single door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-1120-40-00
Modular cabinets Stainless steel H375, double door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-1120-40-10
Modular cabinets Stainless steel H375, double door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-1220-40-00
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-1220-40-10
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-6020-40-00
Modular cabinets Stainless steel H375, single door
Width
600 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-6020-40-10
Modular cabinets Stainless steel H375, single door
Width
600 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-8020-40-00
Modular cabinets Stainless steel H375, single door
Width
800 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-8020-40-10
Modular cabinets Stainless steel H375, single door
Width
800 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-0120-40-07
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-0120-40-17
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-1020-40-07
Modular cabinets Sheet steel H395, single door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-1020-40-17
Modular cabinets Sheet steel H395, single door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-1120-40-07
Modular cabinets Sheet steel H395, double door
Width
1100 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-1220-40-07
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-1220-40-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-6020-40-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6020-40-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8020-40-07
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8020-40-17
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8520-40-07
Modular cabinets Sheet steel H395, single door
Width
850 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
CAD data and other file formats:
