Hook-in center attachment rails

0396-0003-60-05

Hook-in center attachment rails

  • Supporting and additionally securing heavy mounting plates, sub-mounting plates, swing frames, etc.

Product description

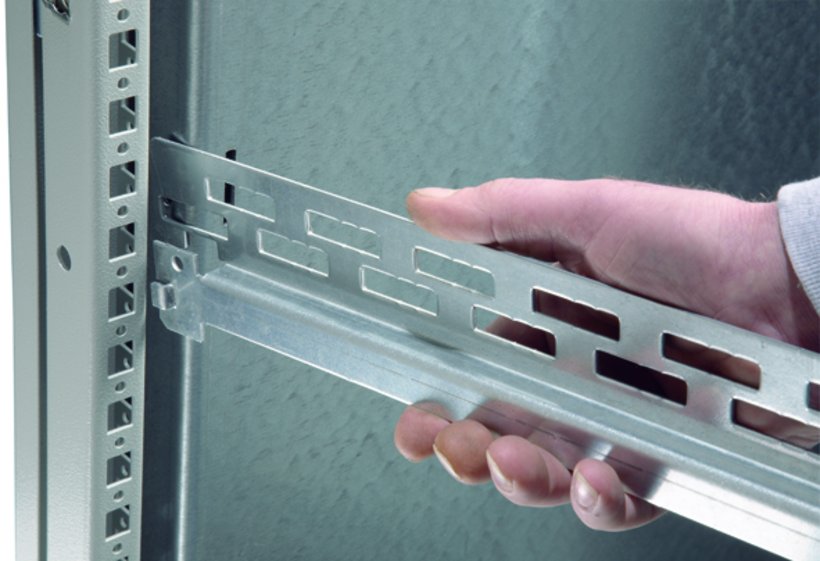

Center attachment rails with oblong holes for flexible attachment of components and accessories.

Can be hooked in the frame of H370/H390 (see note) and H375/395 cabinets, with front locking hole.

Technical data

  • Article number: 0396-0003-60-05
  • Dimensions: suitable for depth : 600 mm
  • Variant: left + right version
  • Surface: Galvanized
  • Material: Sheet steel
  • Dimension perforation (a): 495 mm
  • Size: Length : 542 mm
  • Weight: 0.5 kg
  • Sheet thickness: 2 mm

Notice

  • To attach a partial mounting plate, use mounting kit 3080-7111-92-06.
  • Caution: When mounting in H370/H390 cabinets, use the vertical mounting rails type 0391-90xx-00-03.
  • 1 set (1x left + 1x right) center attachment rail including 4 fixing screws Gefu M5x124 and assembly instructions order no. 0396-0003-00-77.
PC-Cabinet 2096
2096-6016-60-07
PC-Cabinet 2096
Width
600 mm
Height
1600 mm
Depth
625 mm
PC-Cabinet 2096
2096-6018-60-07
PC-Cabinet 2096
Width
600 mm
Height
1800 mm
Depth
625 mm
Hook-in center attachment rails
Hook-in center attachment rails
Center attachment rails with oblong holes for flexible attachment of components and accessories.
Can be hooked in the frame of H370/H390 (see note) and H375/395 cabinets, with front locking hole.

Remember
400 mm
left + right version
500 mm
left + right version
600 mm
left + right version
800 mm
left + right version
