0396-0003-40-05

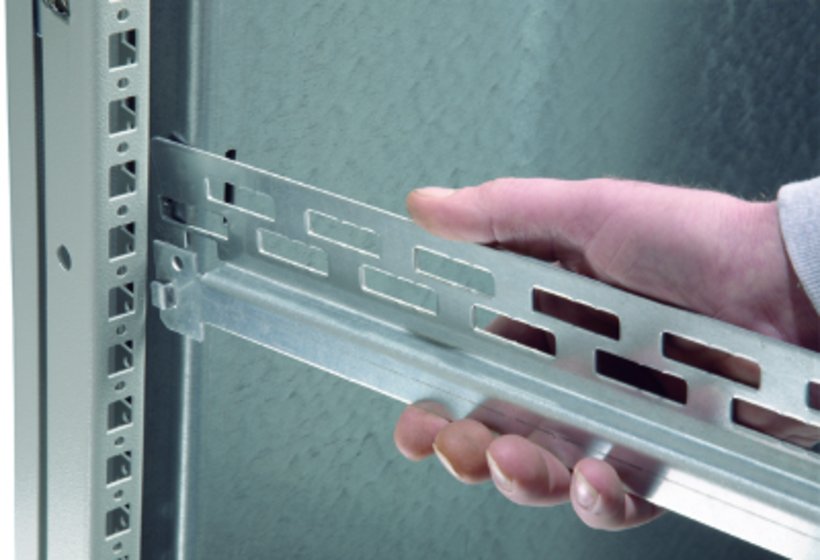

Hook-in center attachment rails
- Supporting and additionally securing heavy mounting plates, sub-mounting plates, swing frames, etc.
Product description
Center attachment rails with oblong holes for flexible attachment of components and accessories.
Can be hooked in the frame of H370/H390 (see note) and H375/395 cabinets, with front locking hole.
Technical data
-
Article number: 0396-0003-40-05
-
Dimensions: suitable for depth : 400 mm
-
Variant: left + right version
-
Surface: Galvanized
-
Material: Sheet steel
-
Dimension perforation (a): 295 mm
-
Size: Length : 342 mm
-
Weight: 0.3 kg
-
Sheet thickness: 2 mm
Notice
- To attach a partial mounting plate, use mounting kit 3080-7111-92-06.
- Caution: When mounting in H370/H390 cabinets, use the vertical mounting rails type 0391-90xx-00-03.
- 1 set (1x left + 1x right) center attachment rail including 4 fixing screws Gefu M5x124 and assembly instructions order no. 0396-0003-00-77.
Mounting instructions:
