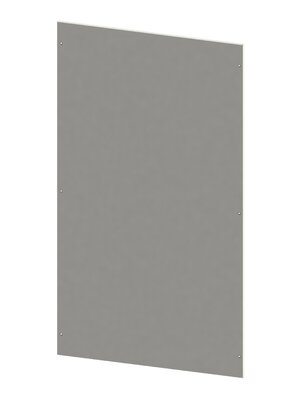

Bolted rear panel made of sheet steel

0395-6016-03-97

Bolted rear panel made of sheet steel

  • For H395

Product description

Protective ground connection to DIN EN 61439-1, 1 stud M8x20

With seamlessly foamed gasket

Fixed with 6 or 8 screws

Technical data

  • Article number: 0395-6016-03-97
  • Protective conductor connection: according to DIN EN 61439-1
  • PRODUKTGRUPPENNAMEEBENE4: Accessories control cabinets outside
  • PRODUKTGRUPPENNAMEEBENE5: Doors/Back panel/Front frame
  • Dimensions: Width : 600 mm  Height : 1600 mm
  • Surface: Powder coating RAL 7035, texture finish
  • Material: Sheet steel
  • Protection class: corresponds to IP55
    complies with the technical requirements to type 12
  • Sheet thickness: 1.5 mm
  • 1 rear panel with mounting hardware
Modular cabinets Sheet steel H395, single door
0395-6016-40-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Approval
cULus
Modular cabinets Sheet steel H395, single door
0395-6016-40-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Approval
cULus
Modular cabinets Sheet steel H395, single door
0395-6016-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Approval
cULus
Modular cabinets Sheet steel H395, single door
0395-6016-60-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Approval
cULus

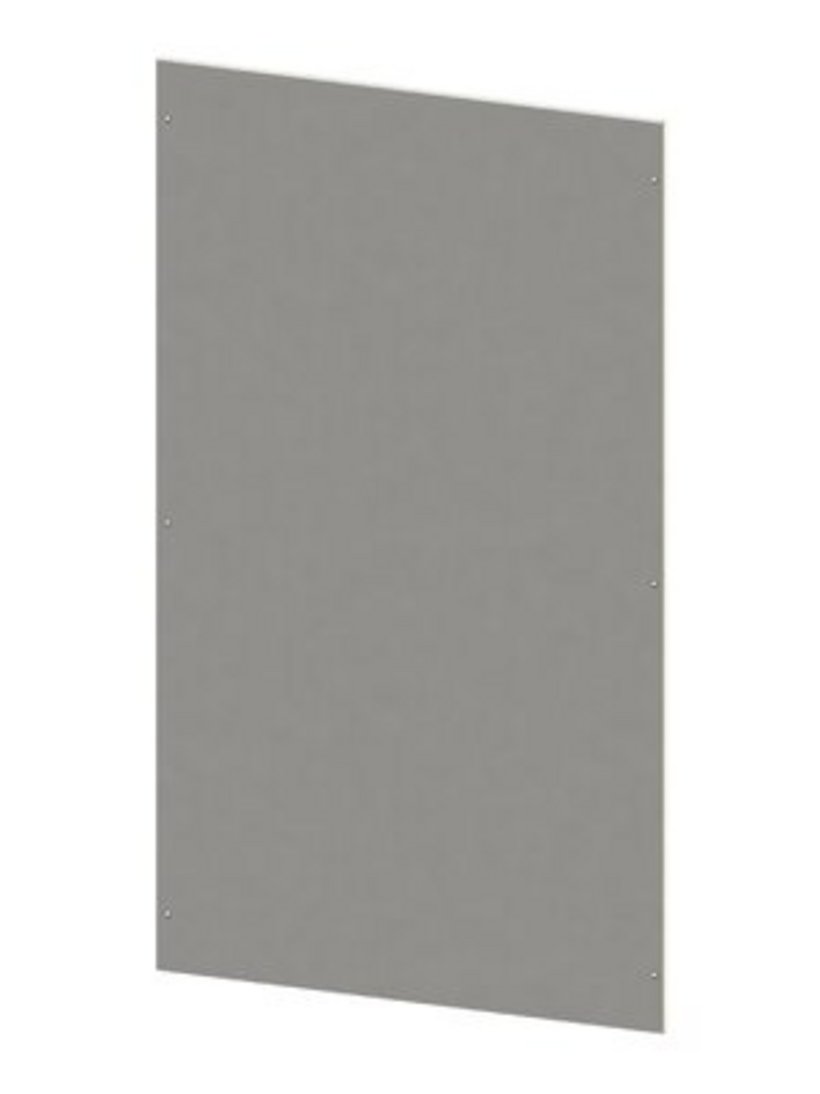

Bolted rear panel made of sheet steel
Bolted rear panel made of sheet steel
Protective ground connection to DIN EN 61439-1, 1 stud M8x20
With seamlessly foamed gasket
Fixed with 6 or 8 screws

Remember
600 mm
1600 mm
600 mm
1800 mm
600 mm
2000 mm
600 mm
2200 mm
800 mm
1600 mm
800 mm
1800 mm
800 mm
2000 mm
1000 mm
1800 mm
1000 mm
2000 mm
1000 mm
2200 mm
1200 mm
1600 mm
1200 mm
1800 mm
1200 mm
2000 mm
1200 mm
2200 mm
