0395-1216-03-97

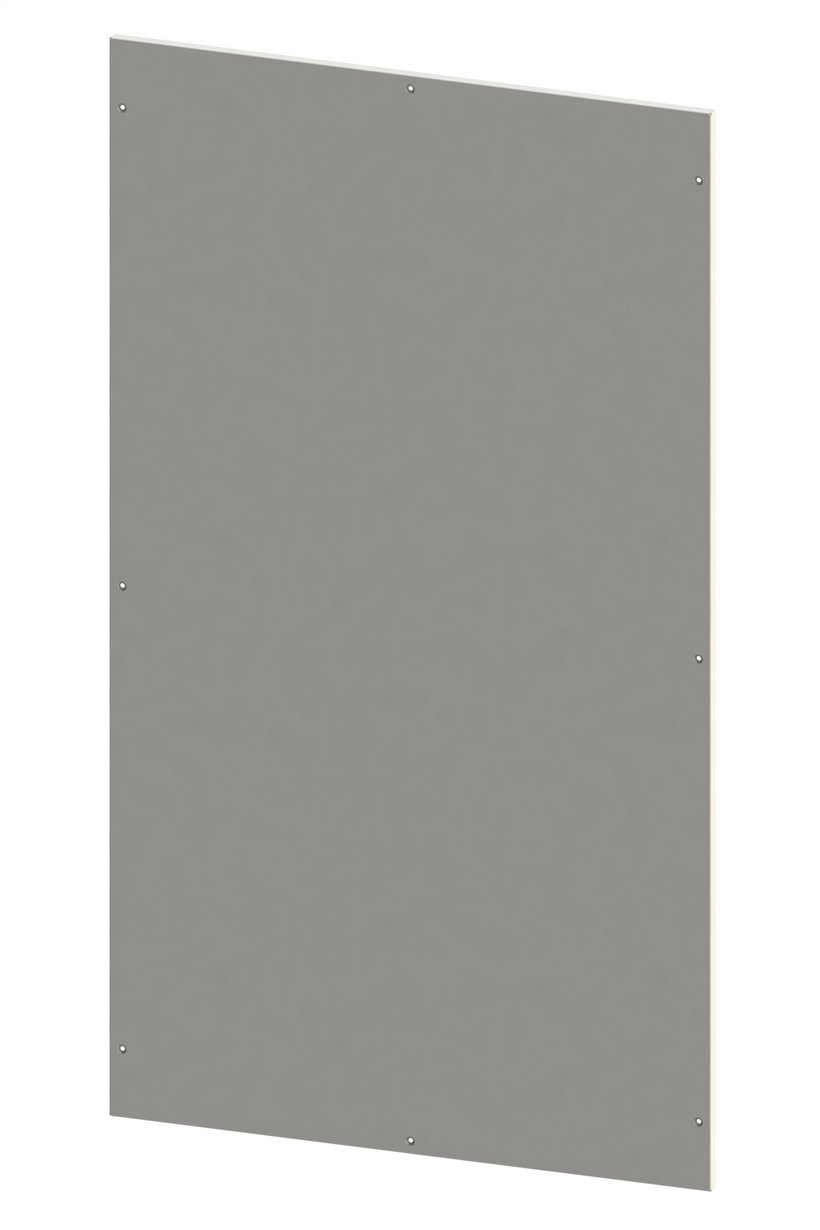

Bolted rear panel made of sheet steel
- For H395
Product description
Protective ground connection to DIN EN 61439-1, 1 stud M8x20
With seamlessly foamed gasket
Fixed with 6 or 8 screws
Technical Data
-
Order No.: 0395-1216-03-97
-
Protective ground connection: according to DIN EN 61439-1
-
Dimension: Width : 1200 mm Height : 1600 mm
-
Surface: Powder coating RAL 7035, texture finish
-
Material: Sheet steel
-
Protection type: corresponds to IP55
complies with the technical requirements to type 12 -
Sheet thickness: 1,5 mm
- 1 rear panel with mounting hardware
0395-1216-40-07
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-1216-40-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-1216-60-07
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1600 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-1216-60-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1600 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
