0375-6010-03-90

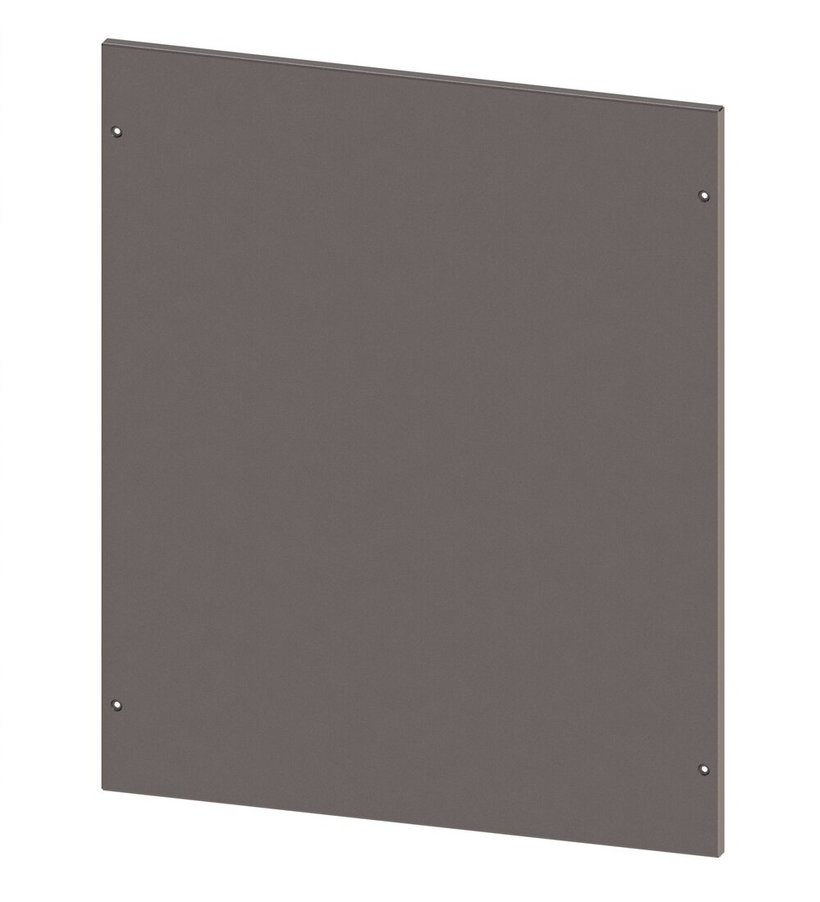

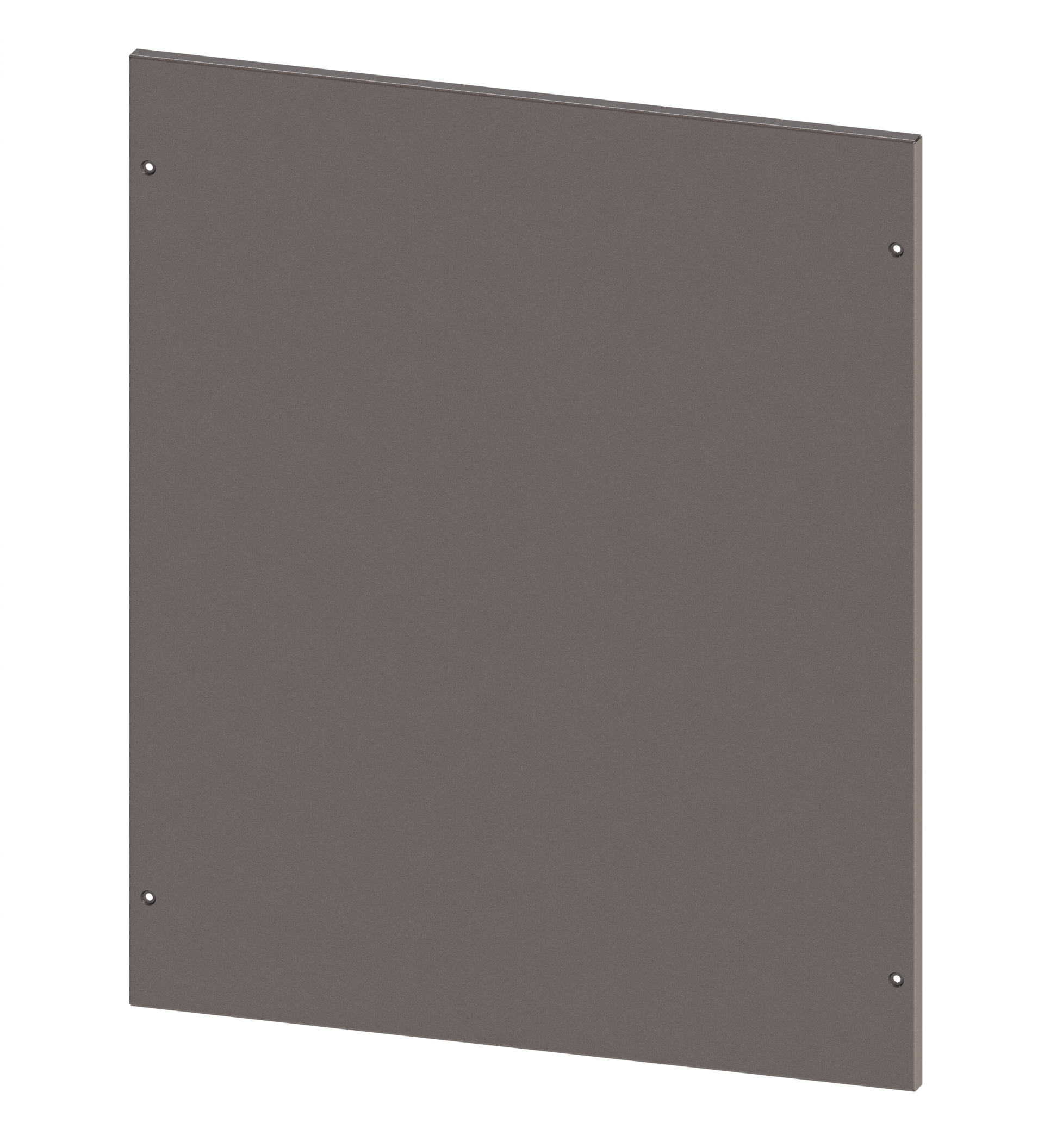

Bolted stainless steel rear panel
- For H375
Product description
Protective ground connection according to DIN EN 61439-1, 1 grounding stud M8x20
With seamless foamed-in gasket
fixed with 6 or 8 bolts
Technical Data
-
PRODUCT NUMBER: 0375-6010-03-90
-
Protective ground connection: according to DIN EN 61439-1
-
Dimension: Width : 600 mm Height : 1000 mm
-
Surface: Brushed
-
Material: Sheet steel
-
Protection type: corresponds to IP55
complies with the technical requirements to type 12 -
Sheet thickness: 1,5 mm/0,0,6"
- 1 rear panel with mounting hardware
0375-6010-40-00
Modular cabinets Stainless steel H375, single door
Width
600 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-6010-40-10
Modular cabinets Stainless steel H375, single door
Width
600 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
