3080-7006-33-01

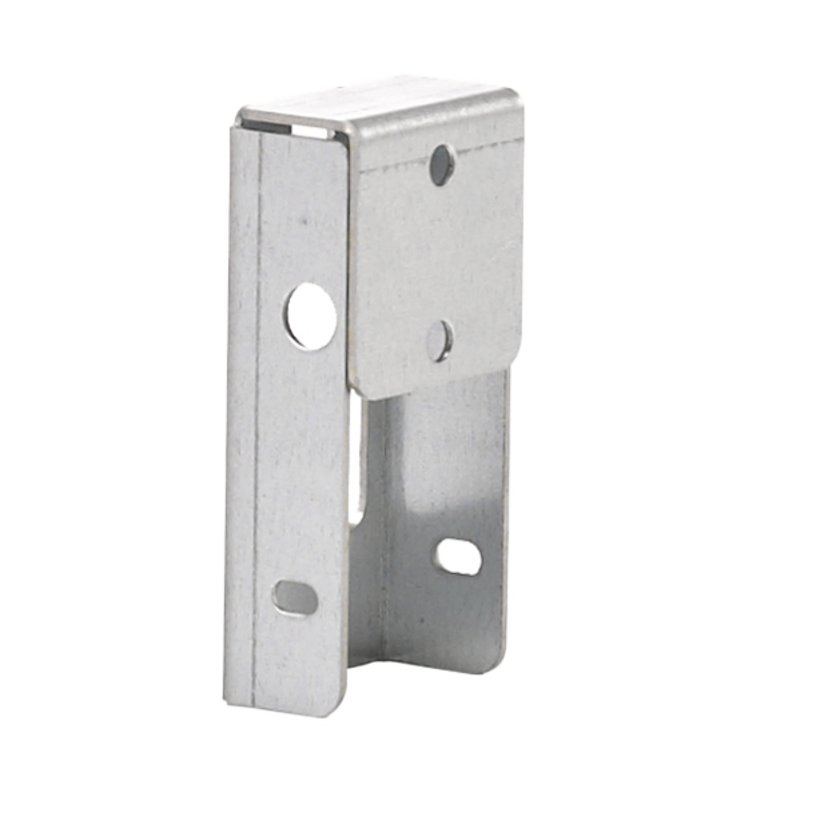

Mounting kit universal lamp
Product description
to mount universal lamp in wall enclosure series 33
can be used on either side of the wall enclosure by turning the mounting bracket
Technical data
-
Article number: 3080-7006-33-01
-
Material: Sheet steel 1,5 mm / 16 ga
-
Variant: up to an enclosure height of 400 mm
-
Surface: Galvanized
- Attachment kit consisting of 1 attachment bracket and mounting hardware
3331-4040-20-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
400 mm
Height
400 mm
Depth
200 mm
Type
without mounting plate
3331-4040-20-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
400 mm
Height
400 mm
Depth
200 mm
Type
with mounting plate
3331-4060-20-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
400 mm
Height
600 mm
Depth
200 mm
Type
without mounting plate
3331-4060-20-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
400 mm
Height
600 mm
Depth
200 mm
Type
with mounting plate
3331-4530-20-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
450 mm
Height
300 mm
Depth
200 mm
Type
without mounting plate
3331-4530-20-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
450 mm
Height
300 mm
Depth
200 mm
Type
with mounting plate
3331-6040-20-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
400 mm
Depth
200 mm
Type
without mounting plate
3331-6040-20-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
400 mm
Depth
200 mm
Type
with mounting plate
3331-6040-35-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
400 mm
Depth
350 mm
Type
without mounting plate
3331-6040-35-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
400 mm
Depth
350 mm
Type
with mounting plate
3351-4040-20-06
Wall-mount enclosures EMC, stainless steel , 1-door
Width
400 mm
Height
400 mm
Depth
200 mm
Type
without mounting plate
3351-4040-20-16
Wall-mount enclosures EMC, stainless steel , 1-door
Width
400 mm
Height
400 mm
Depth
200 mm
Type
with mounting plate
3331-4040-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
400 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4040-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
400 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4530-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
450 mm
Height
300 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4530-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
450 mm
Height
300 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6040-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6040-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6040-35-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6040-35-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3351-4040-20-00
Wall-mount enclosures series 33, stainless steel, single door
Width
400 mm
Height
400 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus
3351-4040-20-10
Wall-mount enclosures series 33, stainless steel, single door
Width
400 mm
Height
400 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus
Mounting instructions:
