3351-1012-02-90
Product description

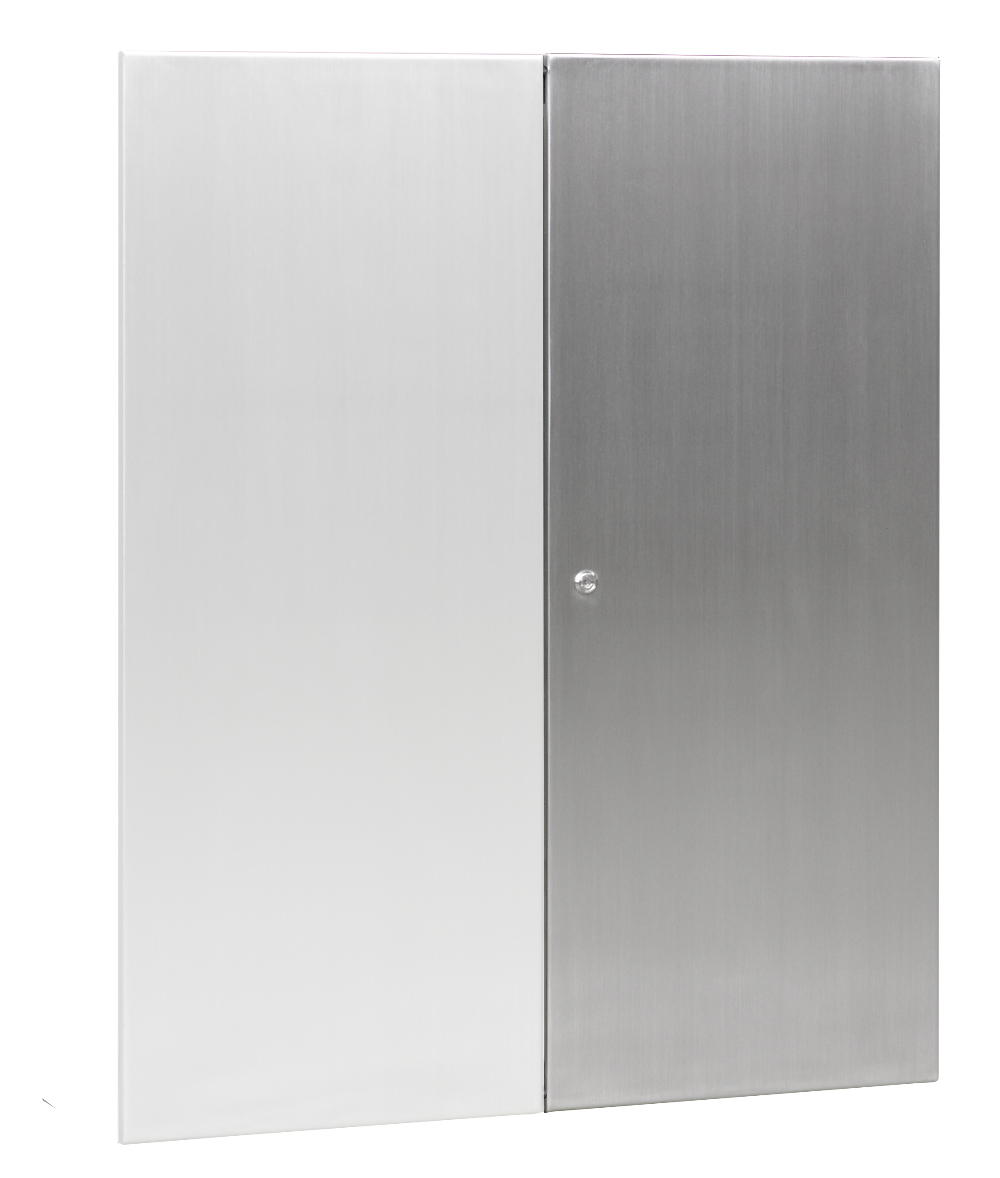

Replacement door for wall-mount enclosures of series 33.
Protective ground connection to DIN EN 61439-1, bolt M6x16
With seamlessly foamed seal
Hidden stainless steel hinges, opening angle 180°, each door with 3 hinges
Lock: with standard bar lock, 3 mm double mandrel
Door on both sides with reinforcing / perforated profile with attachment holes with a diameter of 4.2 mm in a 25 mm grid.
Technical Data
-
Order No.: 3351-1012-02-90
-
Material: Stainless steel
-
Type: right
-
Suitabel for width: 1000 mm
-
Suitable for height: 1200 mm
-
Sheet thickness: Door: 2 mm
-
Protective ground connection: according to DIN EN 61439-1
-
Surface: Externally brushed
- Complete with lock, hinges and mounting hardware, as well as one key.
3351-1012-30-00
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3351-1012-30-10
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3351-1012-35-00
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3351-1012-35-10
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3351-1012-40-00
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3351-1012-40-10
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
