3351-1012-01-90

Product description

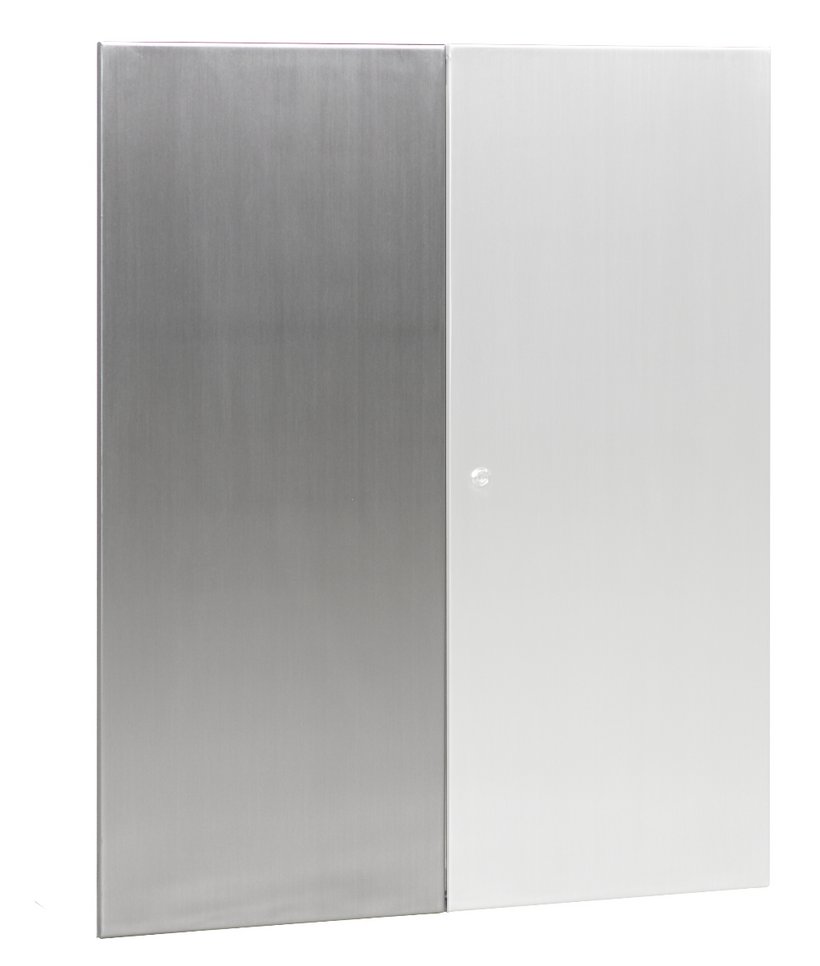

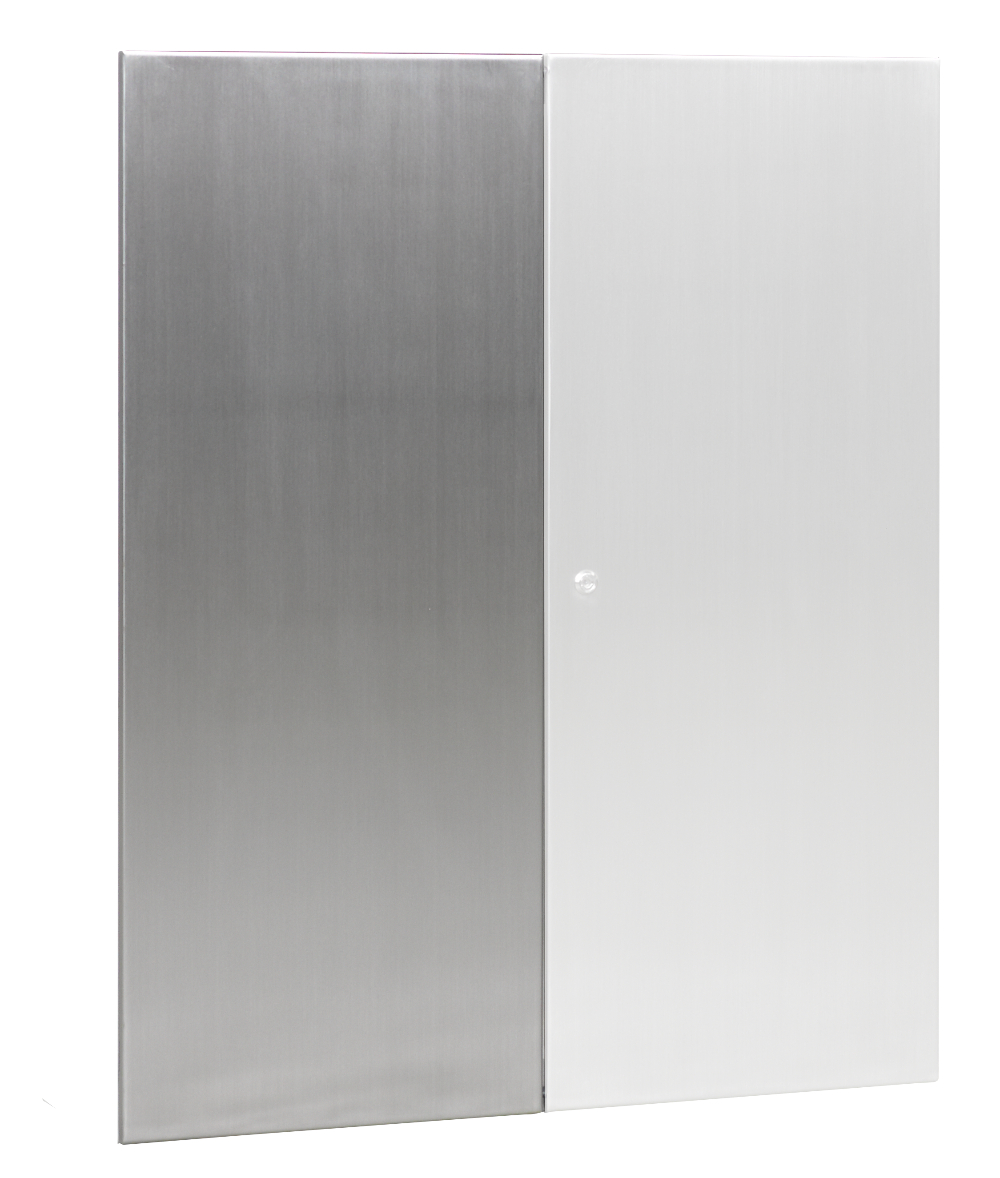

Replacement door for wall-mount enclosures of series 33.

Protective ground connection to DIN EN 61439-1, bolt M6x16

With seamlessly foamed seal

Hidden stainless steel hinges, opening angle 180°, each door with 3 hinges

Door on both sides with reinforcing / perforated profile with attachment holes with a diameter of 4.2 mm in a 25 mm grid.

Technical data

  • Article number: 3351-1012-01-90
  • PRODUKTGRUPPENNAMEEBENE4: Accessories for wall-mount enclosures (exterior)
  • PRODUKTGRUPPENNAMEEBENE5: Doors
  • Material: Stainless steel
  • Variant: Left door of double door set
  • suitable for width: 1000 mm
  • suitable for height: 1200 mm
  • Sheet thickness: Door: 2 mm
  • Protective conductor connection: according to DIN EN 61439-1
  • Surface: Externally brushed
  • Complete with hinges and mounting hardware, as well as one key.
Wallmount enclosures series 33, 2-doors-stainless steel
3351-1012-30-00
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
Wallmount enclosures series 33, 2-doors-stainless steel
3351-1012-30-10
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
Wallmount enclosures series 33, 2-doors-stainless steel
3351-1012-35-00
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
Wallmount enclosures series 33, 2-doors-stainless steel
3351-1012-35-10
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
Wallmount enclosures series 33, 2-doors-stainless steel
3351-1012-40-00
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
Wallmount enclosures series 33, 2-doors-stainless steel
3351-1012-40-10
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
Replacement door for wall-mount enclosures of series 33.
Protective ground connection to DIN EN 61439-1, bolt M6x16
With seamlessly foamed seal
Hidden stainless steel hinges, opening angle 180°, each door with 3 hinges
Door on both sides with reinforcing / perforated profile with attachment holes with a diameter of 4.2 mm in a 25 mm grid.
