3331-1080-02-97

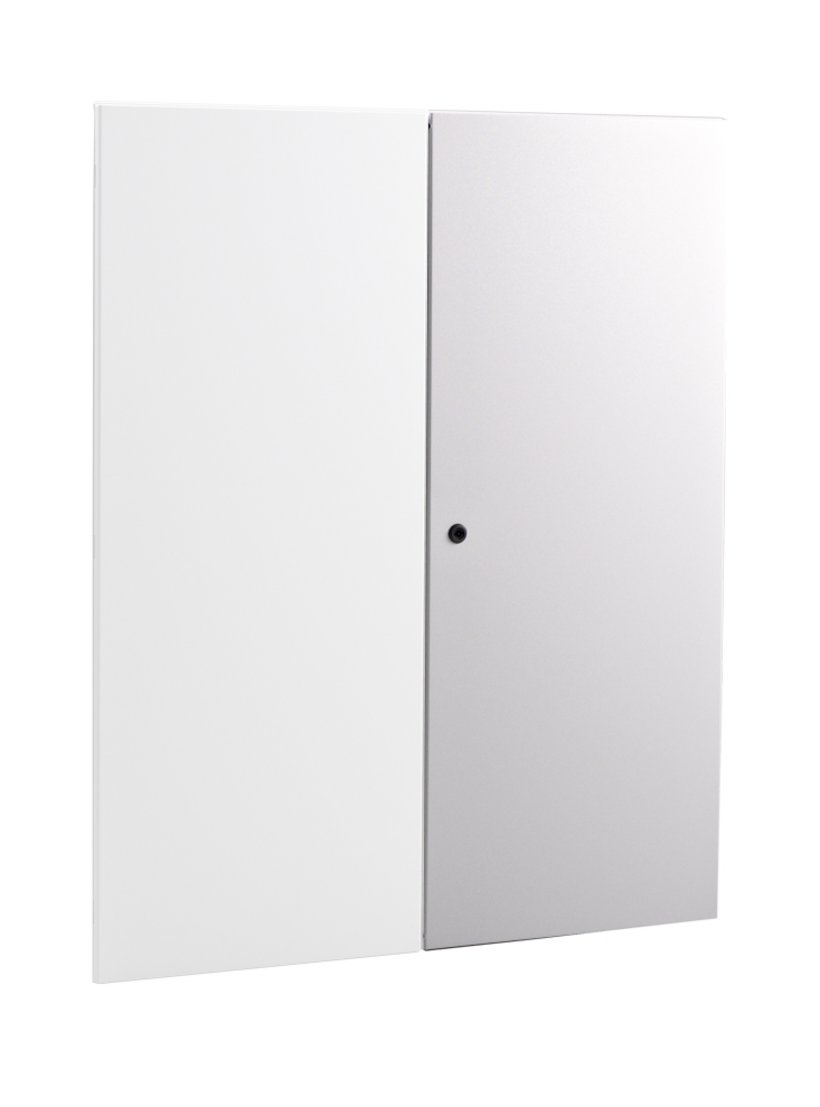

Replacement door for sheet steel enclosures of Series 33
Product description
Replacement door for wall-mount enclosures of series 33
Protective ground connection to DIN EN 61439-1, bolt M6x16
With seamlessly foamed seal
Hidden sheet steel hinges, opening angle 180°, each door with 3 hinges
Lock: with standard bar lock, 3 mm double mandrel
Door on both sides with reinforcing / perforated profile with attachment holes with a diameter of 4.2 mm in a 25 mm grid.
Technical Data
-
Order No.: 3331-1080-02-97
-
Material: Sheet steel
-
Type: right
-
Suitabel for width: 1000 mm
-
Suitable for height: 800 mm
-
Sheet thickness: Door: 2 mm
-
Protective ground connection: according to DIN EN 61439-1
-
Surface: Powder coating RAL 7035, texture finish
- Complete with lock, hinges and mounting hardware, as well as one key.
3331-1080-35-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1080-35-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1080-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1080-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
