3157-0050-11-23

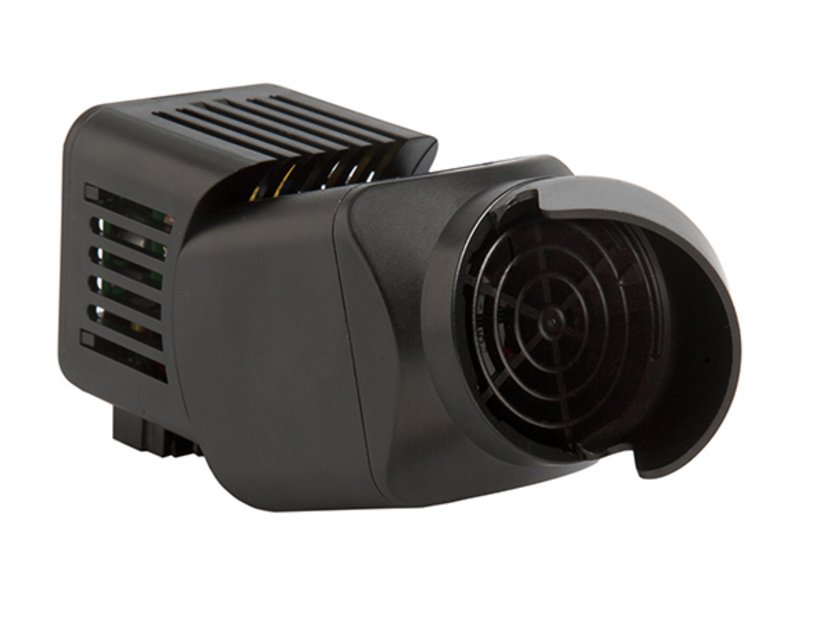

Built-In Fans
- Prevent HotSpots
Product description
Used for air circulation inside the cabinet to avoid build-up of heat in certain areas.
Technical Data
-
Order No.: 3157-0050-11-23
-
Frequency: 50 Hz/60 Hz
-
Protection type: IP20
-
Temperature range: from : -10 °C to : +60 °C
-
Unimpeded air flow: unimpeded air flow at 50/60 Hz: 27,6 m3/h
-
Nominal voltage: 100-240 V AC (min. 90, max. 265 V)
-
Material: housing: black plastic, UL94 V-0
-
Mounting type: clip for snap-on attachment
-
Motor connection: 2 pole dual pressure clamp
-
Power consumption: 4 W
-
Approval: CE; cURus
-
Weight: 0.2 kg
-

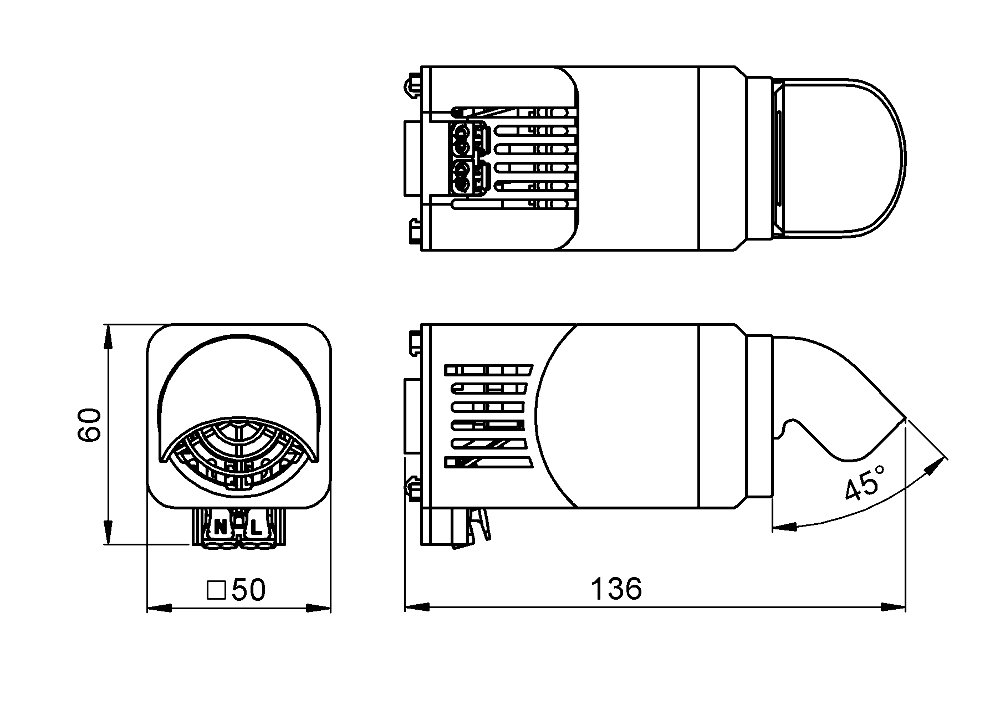

Dimension: Width : 50 mm Height : 60 mm Depth : 136 mm
-
Surface: black
Notice
- Versions with special voltages are available upon request
- 1 built-in fan (complete with snap-on or screw attachment)
