1206-1802-00-00

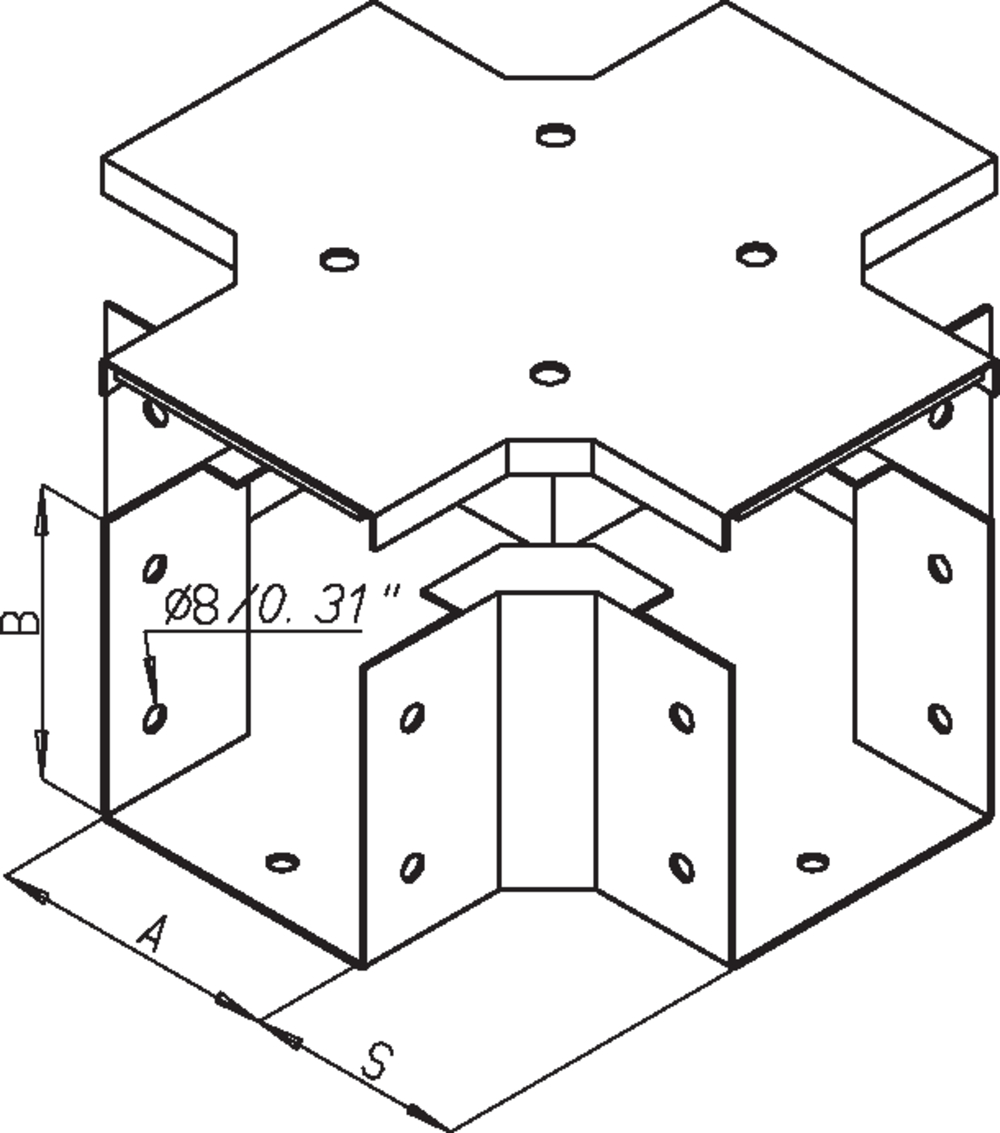

Cross section top access
- Protection class IP54
- continuous insertion
- very robust
Product description
Duct with threaded bolt M6 for potential equalization
With cover and turn locks made of steel (provided loose)
Retaining cord for securing cover to cable duct as well as groundingcable need to be ordered separately.
All gaskets are made from oil-resistant material.
Technical Data
-
PRODUCT NUMBER: 1206-1802-00-00
-
Type: without flange
-
Material: Sheet steel
Notice
- Connection to other parts require a U-bracket.
- Lengths AxB are inner dimensions
- 1 cross section with cover
- gasket 12x4 mm self-adhesive on one side and turn locks (provided loose)
