T-section external access

1206-0802-00-00

T-section external access

  • Protection class IP54
  • continuous insertion
  • very robust

Product description

Duct with threaded bolt M6 for potential equalization

With cover and turn locks made of steel (provided loose)

Retaining cord for securing cover to cable duct as well as groundingcable need to be ordered separately.

All gaskets are made from oil-resistant material.

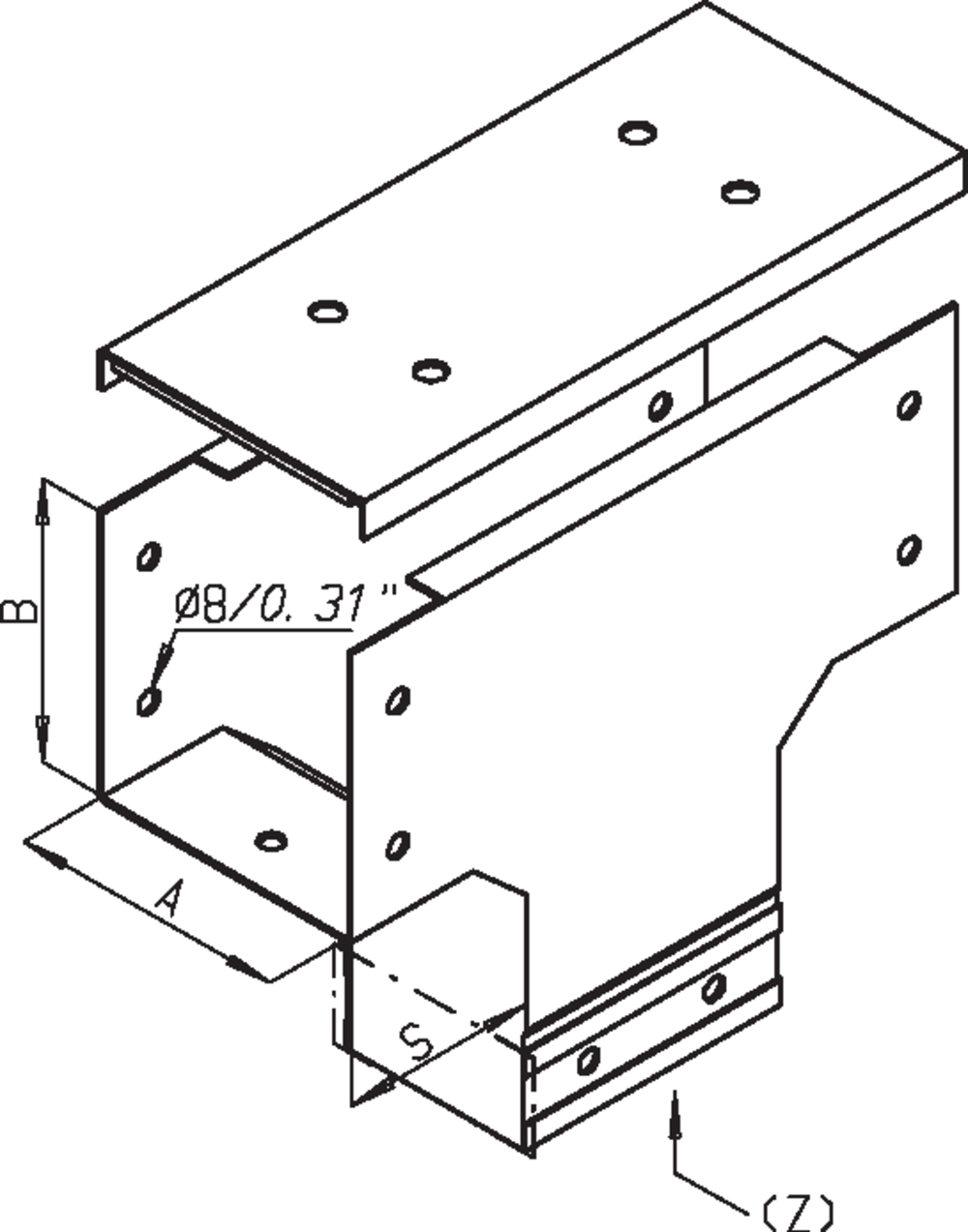

This form part has a connective U-bracket integrated (see pos. Z)

Technical data

  • Article number: 1206-0802-00-00
  • Variant: without flange
  • Material: Sheet steel

Notice

  • Connection to other parts require a U-bracket.
  • Lengths AxB are inner dimensions
  • 1 T-section with cover
  • gasket 12 x 4 mm self-adhesive on one side and turn locks (provided loose)
T-section external access
T-section external access
Duct with threaded bolt M6 for potential equalization
With cover and turn locks made of steel (provided loose)
Retaining cord for securing cover to cable duct as well as groundingcable need to be ordered separately.
All gaskets are made from oil-resistant material.
This form part has a connective U-bracket integrated (see pos. Z)

Remember
without flange
without flange
without flange
without flange
without flange
without flange
without flange
