90° Elbow Top access

1206-0202-00-00

90° Elbow Top access

  • Protection class IP54
  • continuous insertion
  • very robust

Product description

Duct with threaded bolt M6 for potential equalization

With cover and turn locks made of steel (provided loose)

Retaining cord for securing cover to cable duct as well as groundingcable need to be ordered separately.

All gaskets are made from oil-resistant material.

Technical data

  • Article number: 1206-0202-00-00
  • Variant: without flange
  • Material: Sheet steel

Notice

  • Connection to other parts require a U-bracket.

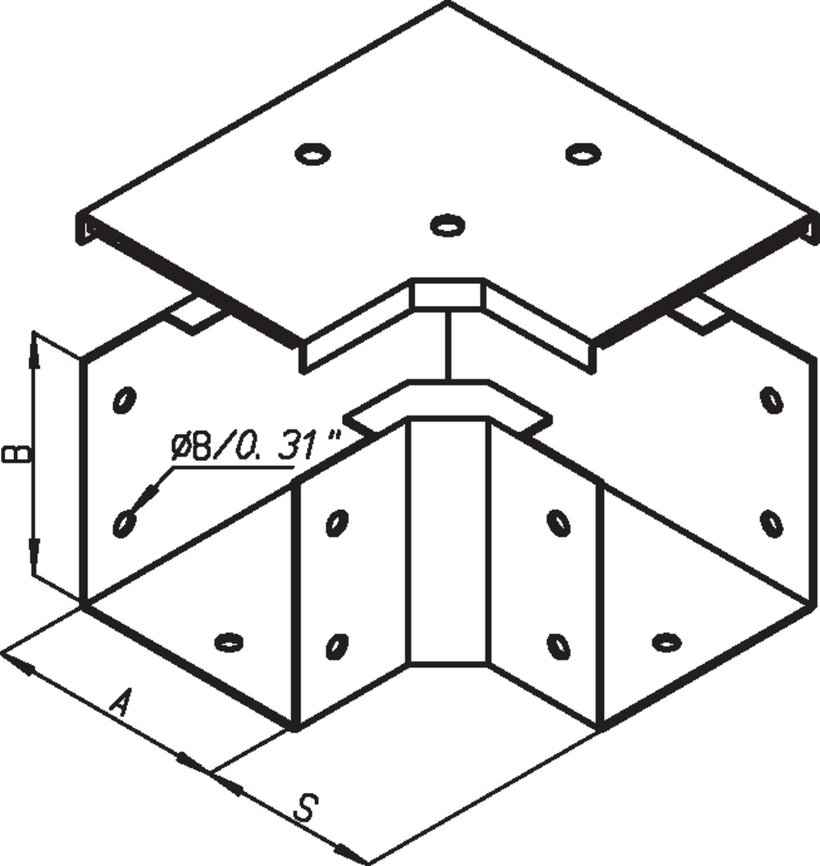

  • Lengths AxB are inner dimensions
  • 1 elbow with cover
  • gasket 12 x 4 mm self-adhesive on one side and turn locks (provided loose)
90° Elbow Top access
90° Elbow Top access
Duct with threaded bolt M6 for potential equalization
With cover and turn locks made of steel (provided loose)
Retaining cord for securing cover to cable duct as well as groundingcable need to be ordered separately.
All gaskets are made from oil-resistant material.

Remember
without flange
without flange
without flange
without flange
without flange
without flange
without flange
