3080-7042-25U73

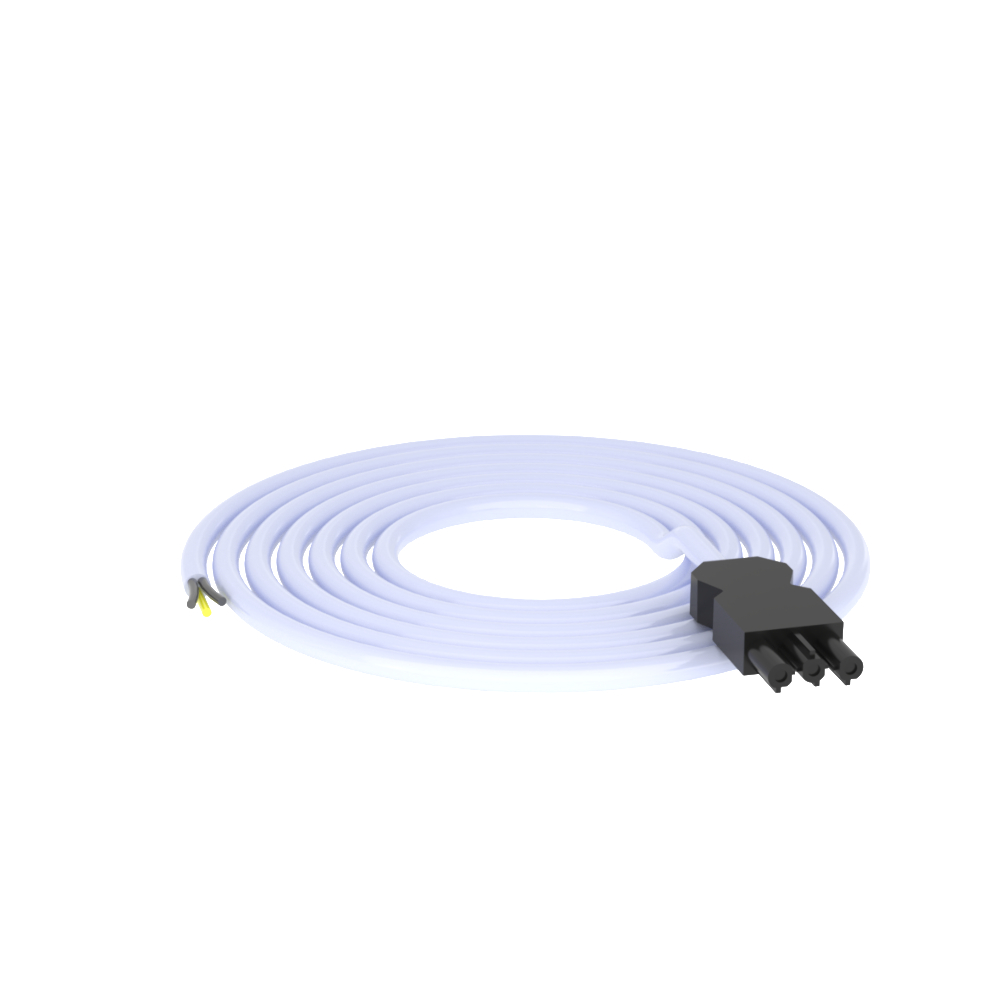

Connection cable for LED lamp SOL 704
- Pre-assembled and ready for connection
Product description
Connection cable to the power supply for sensor operated LED lamp SOL 704.
Male and female connectors (at LED lamp) with locking device.
UL approved when used with sensor operated LED lamp SOL 704.
Technical Data
-
Order No.: 3080-7042-25U73
-
Length: 3000 mm
-
Voltage type: AC
-
Use for: Input side
-
Color: Female connector: black; Cable: grey
-
Approval: cURus approved when used with sensor operated LED lamp SOL 704
- 1 connection cable with mounted plug
3080-7042-14-17
Sensor Operated LED Lamp, SOL 704
Operating voltage
230 V~ (50 Hz/60 Hz) +/- 10%
Socket
Schuko CEE 7/3 load: Max. 16 A
Mounting
Screw mounted version
Length
440 mm
Approval
CE, VDE EMC, UKCA
3080-7042-15-07
Sensor Operated LED Lamp, SOL 704
Operating voltage
120 V-230 V~ (50 Hz/60 Hz) +/- 10%
120 V-277 V~ (50 Hz/60 Hz) +/- 10%
120 V-277 V~ (50 Hz/60 Hz) +/- 10%
Mounting
Screw mounted version
Length
440 mm
Approval
UKCA, cULus, cURus, CE, VDE EMC
3080-7042-25-27
Sensor Operated LED Lamp, SOL 704
Operating voltage
120 V~ (50 Hz/60 Hz) +/- 10%
Socket
NEMA 5-15 load: - max. 11.9 A
Cascaded - max.10.6 A
Cascaded - max.10.6 A
Mounting
Screw mounted version
Length
440 mm
Approval
UKCA, cULus, cURus, CE, VDE EMC
3080-7043-15-07
Sensor Operated LED Lamp, SOL 704
Operating voltage
120 V-230 V~ (50 Hz/60 Hz) +/- 10%
120 V-277 V~ (50 Hz/60 Hz) +/- 10%
120 V-277 V~ (50 Hz/60 Hz) +/- 10%
Mounting
magnetic
Length
440 mm
Approval
UKCA, cULus, cURus, CE, VDE EMC
