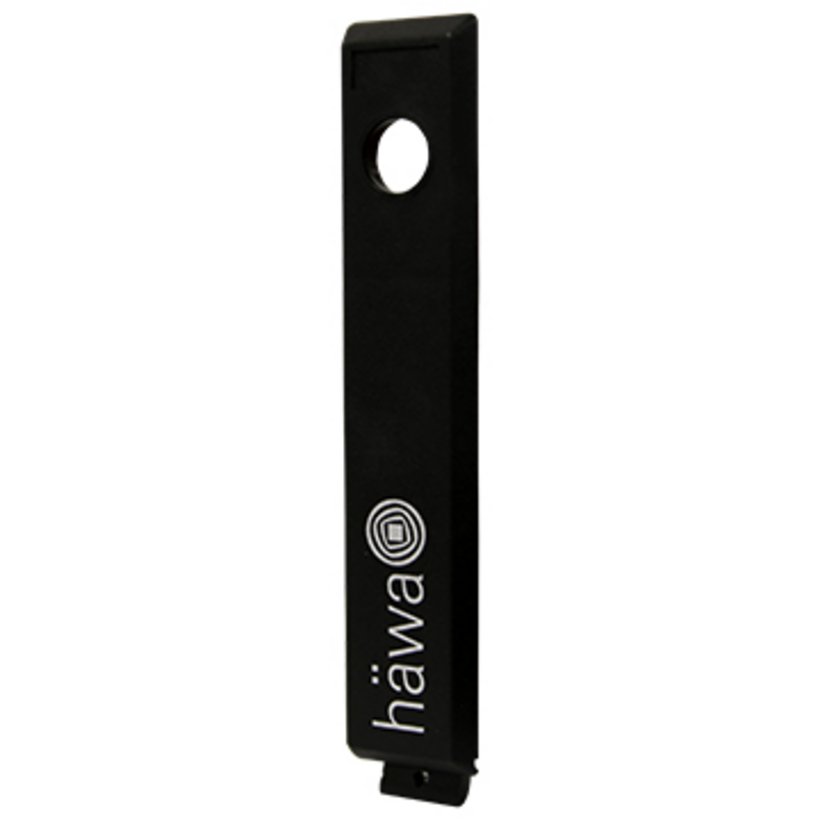

Key plate for free-standing and modular cabinets

3070-0308-00-00

Key plate for free-standing and modular cabinets

  • Square mounting holes
  • For bar locks
  • For häwa free-standing and modular cabinets type H370/H390 and H375/H395 with 1 or 2 doors
  • Max. type rating IP65

Product description

Key plate for cabinet doors, can be mounted at right or left side.

The type rating is dependent on the mounting position, max. possible type rating IP65.

Prepared for mounting of locking bolt.

Technical data

  • Article number: 3070-0308-00-00
  • PRODUKTGRUPPENNAMEEBENE4: Universal accessories / Accessories control cabinets inside
  • PRODUKTGRUPPENNAMEEBENE5: Closure systems/Handles
  • Version: Square mounting hole
    With hole spacing 100 mm / 39.37“
    Pan with hooks
  • TUERBLECHSTAERKE_DICT: 1,5 - 2,5 mm/0,06" - 0,1"
  • Variant: with häwa logo
  • Protection class: IP65
  • Closing: Prepared for locking bolt, see accessories

Notice

  • The key plate corresponds to the standard version of free-standing and modular cabinets.
  • 1 key plate with mounting hardware and seals.
CAD data and other illustrations:
Key plate for free-standing and modular cabinets
Key plate for free-standing and modular cabinets
Key plate for cabinet doors, can be mounted at right or left side.
The type rating is dependent on the mounting position, max. possible type rating IP65.
Prepared for mounting of locking bolt.

Art No.
Protection type
Type
Remember
IP65
with häwa logo
