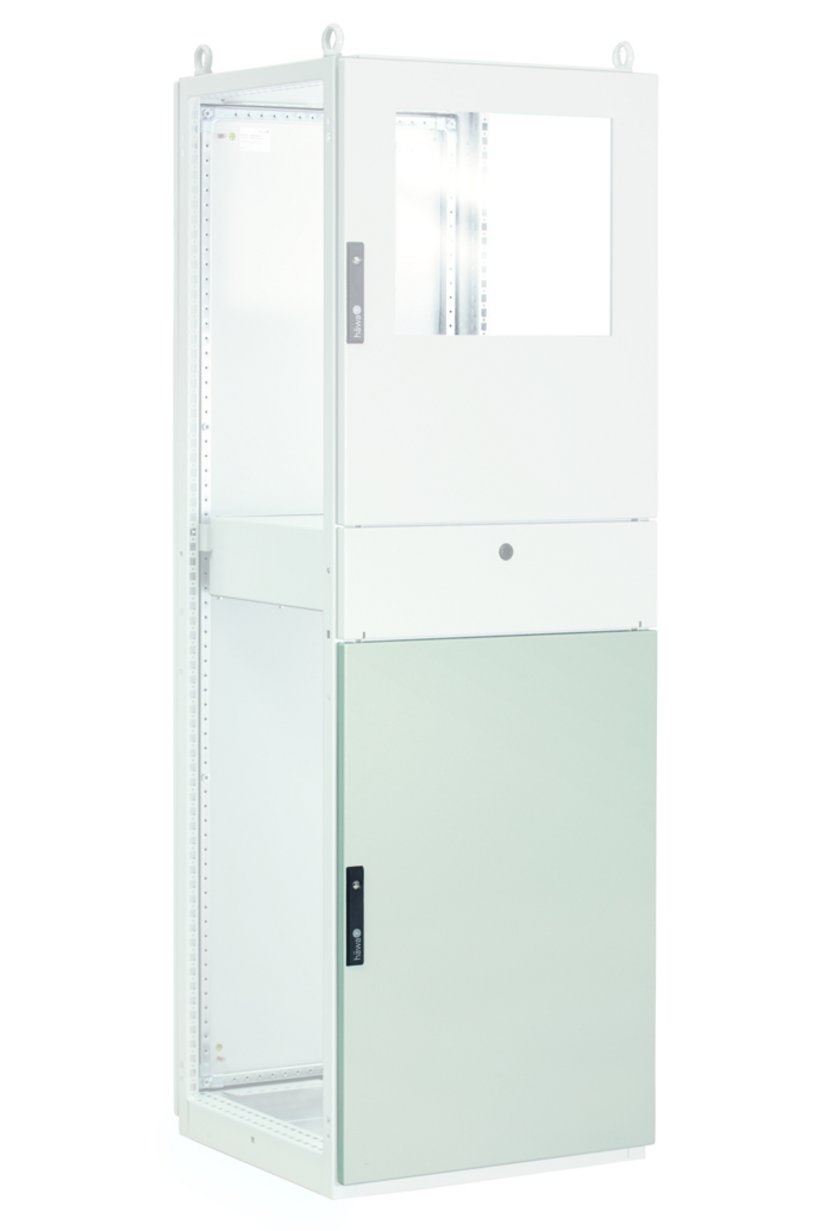

Partial bottom doors, width 600 mm/23.62"

0396-6086-20-37

Partial bottom doors, width 600 mm/23.62"

  • For H390 and H395 cabinets
  • Standard stop on the right side

Product description

Protective ground connection according to DIN EN 61439-1, 1 pc. M8x20 mm bolt

With seamlessly foamed seal

120° hinges, which can be easily exchanged with 180° hinges

Door with bar lock outside the sealing area

Lock: with standard bar lock, 3 mm double mandrel

Technical data

  • Article number: 0396-6086-20-37
  • Protective conductor connection: according to DIN EN 61439-1
  • PRODUKTGRUPPENNAMEEBENE4: Accessories control cabinets outside
  • PRODUKTGRUPPENNAMEEBENE5: Doors/Back panel/Front frame
  • Dimensions: Height : 860 mm
  • Surface: Powder coating RAL 7035, texture finish
  • Material: Sheet steel
  • Protection class: corresponds to IP55
    complies with the technical requirements to type 12
  • Sheet thickness: 2 mm

Notice

  • Type 0396-6086-20-17: Depending on the cabinet height, this type can only be used with the keyboard drawer H-150 mm/5.91” and the upper partial door H-545/745 / H-21.46”/29.33” or 945 mm/37.20”.
  • Door complete with lock and 120° hinges and with mounting instructions (0395-0000-00-01)
Partial bottom doors, width 600 mm/23.62"
Partial bottom doors, width 600 mm/23.62"
Protective ground connection according to DIN EN 61439-1, 1 pc. M8x20 mm bolt
With seamlessly foamed seal
120° hinges, which can be easily exchanged with 180° hinges
Door with bar lock outside the sealing area
Lock: with standard bar lock, 3 mm double mandrel
