0396-6052-20-07

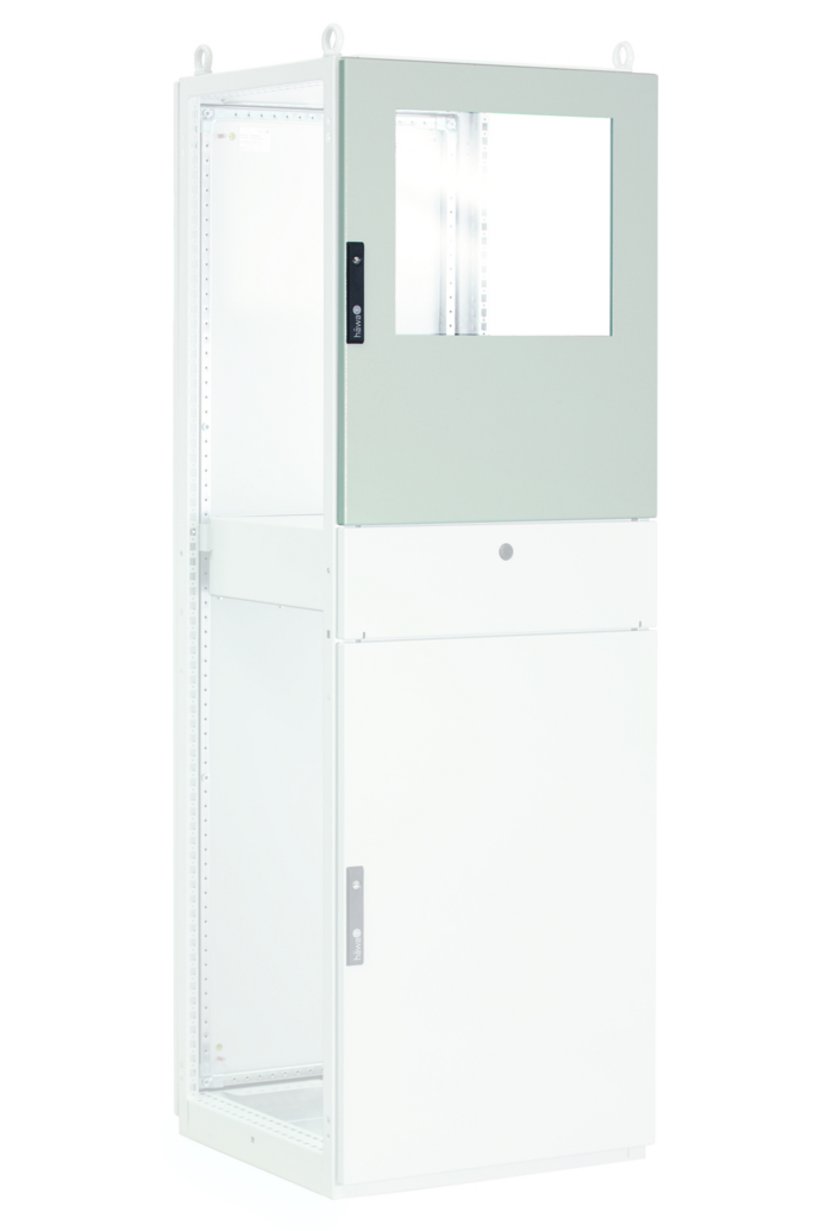

Upper partial doors width 600 mm/ 23.62"
- For H395 cabinets
- Standard stop on the right side
- With viewing window or solid
Product description
Protective ground connection according to DIN EN 61439-1, 1 pc. M8x20 mm bolt
With seamlessly foamed seal
120° hinges, which can be easily exchanged with 180° hinges
Door with bar lock outside the sealing area
Lock: with standard bar lock, 3 mm double mandrel
Technical Data
-
Order No.: 0396-6052-20-07
-
Protective ground connection: according to DIN EN 61439-1
-
Dimension: Height : 523 mm Suitable for height : 1600 mm
-
Type: cloesd
-
Surface: Powder coating RAL 7035, texture finish
-
Material: Sheet steel
-
Viewing window: Makrolon 3 mm
-
Protection type: corresponds to IP55
complies with the technical requirements to type 12 -
Sheet thickness: 2 mm/0,08"
Notice
- For cabinet heights 1600/1800/2000 mm / 62.99/70.86/78.74": can only be used with the keyboard drawer H-150 mm/5.90" and the partial door H-860 mm/33.85".
- Door complete with lock and 120° hinges and with mounting instructions (0395-0000-00-01)
