0396-6015-50-27

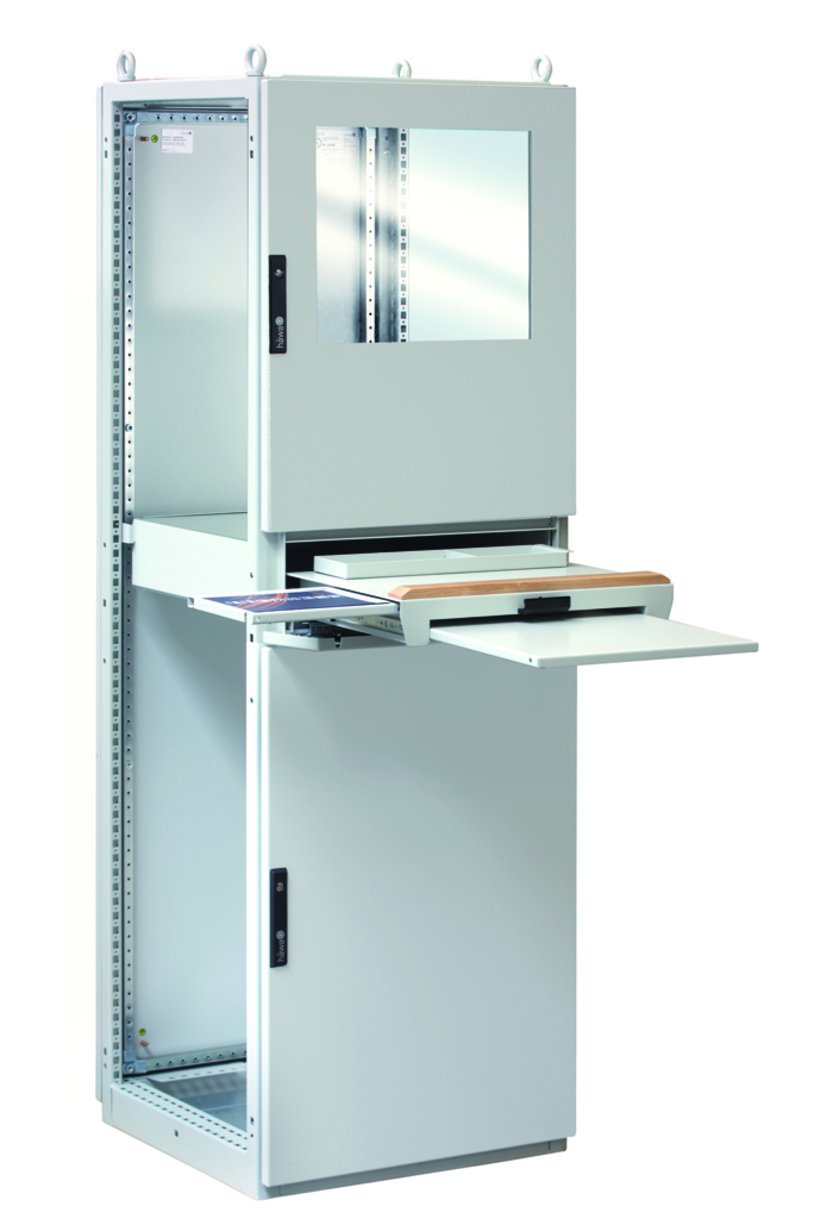

Keyboard drawer for width 600 mm/23.62"
- Palm-rest made of oiled beech wood
- for H395
- Drawer bottom inlaid with felt
Product description
Grounding according to DIN EN 61439-1, 1 grounding bolt M8x20
Max. dimensions of keyboard L = 500 x W = 190 x H = 50 mm
Keyboard drawer with standard 3 mm double mandrel actuation
With storage box and pull-out tray, approx. 275 mm
With seamless foamed seal
Pull-out mouse shelf, approx. 245 mm, each with mouse pad
Technical Data
-
Order No.: 0396-6015-50-27
-
Protective ground connection: according to DIN EN 61439-1
-
Dimension: Height : 150 mm
-
Extension length: 334 mm
-
Construction height: 175 mm
-
Surface: Powder coating RAL 7035, texture finish
-
Material: Sheet steel
-
Protection type: corresponds to IP55
complies with the technical requirements to type 12
Notice
- The sealing frame also serves as upper/lower door frame for top/bottom partial doors
