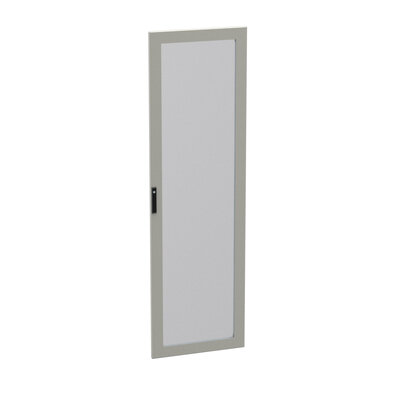

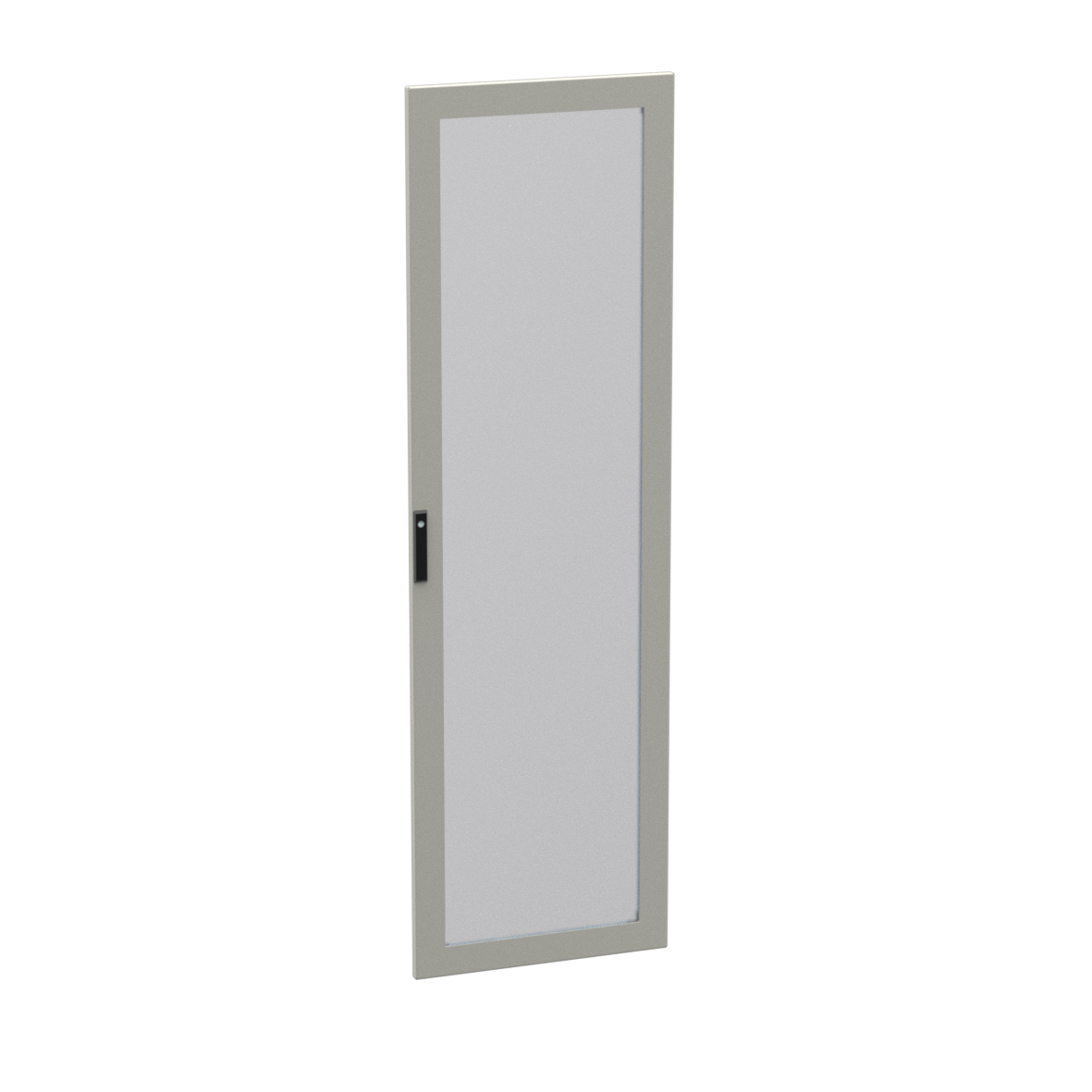

viewing door

0396-0016-60-87

viewing door

  • For cabinets type H390 and H395
  • Standard delivery includes doors hinged on right side,
  • can be changed to left side

Product description

With maximum viewing area for cabinets with one door

Ground connection: through angle connectors e.g. M8x10 bolt or via reinforcement frame e.g. attachment screw type 0348-7500-05-12

with seamless foamed-in gasket

Opening angle 120° can be modified to 180°

Single door with bar lock outside the gasket

Standard with 3 mm double mandrel bolt

Bolted reinforcement and attachment frame of solid square tubes perforated with 4.5 mm holes every 25 mm

Technical data

  • Article number: 0396-0016-60-87
  • Protective conductor connection: according to DIN EN 61439-1
  • PRODUKTGRUPPENNAMEEBENE4: Accessories control cabinets outside
  • PRODUKTGRUPPENNAMEEBENE5: Doors/Back panel/Front frame
  • Dimensions: suitable for width : 600 mm  suitable for height : 1600 mm
  • Surface: Powder coating RAL 7035, texture finish
  • Material: Sheet steel
  • Viewing window: Makrolon 3 mm
  • Protection class: corresponds to IP55
    complies with the technical requirements to type 12
  • Sheet thickness: 2 mm
  • Visible surface (bs): 457 mm
  • Visible surface (hs): 1429 mm

Notice

  • When mounting the plexi doors to existing H390 and H395 cabinets, remount the hinges of the front door. If the rear panel of an H395 cabinet is replaced by a viewing door, you also have to order and mount 3 pcs. 120° hinges order no. 3080-7220-02-03 and a set of double hooks order no. 3080-9208-14-04. You will find the order number for the matching 180° hinge in the mounting instructions type 3080-7220-02-77-01 provided inside the cabinet or in the following downloads.
  • 1 viewing door
Free-Standing cabinets Sheet steel H390, single door
0390-6016-40-07
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Approval
cULus
Free-Standing cabinets Sheet steel H390, single door
0390-6016-40-17
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Approval
cULus
Modular cabinets Sheet steel H395, single door
0395-6016-40-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Approval
cULus
Modular cabinets Sheet steel H395, single door
0395-6016-40-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Approval
cULus
Modular cabinets Sheet steel H395, single door
0395-6016-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Approval
cULus
Modular cabinets Sheet steel H395, single door
0395-6016-60-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Approval
cULus
viewing door
viewing door
With maximum viewing area for cabinets with one door
Ground connection: through angle connectors e.g. M8x10 bolt or via reinforcement frame e.g. attachment screw type 0348-7500-05-12
with seamless foamed-in gasket
Opening angle 120° can be modified to 180°
Single door with bar lock outside the gasket
Standard with 3 mm double mandrel bolt
Bolted reinforcement and attachment frame of solid square tubes perforated with 4.5 mm holes every 25 mm

Remember
600 mm
1600 mm
600 mm
1800 mm
600 mm
2000 mm
600 mm
2200 mm
800 mm
1600 mm
800 mm
1800 mm
800 mm
2000 mm
800 mm
2200 mm
