0396-6866-55-17

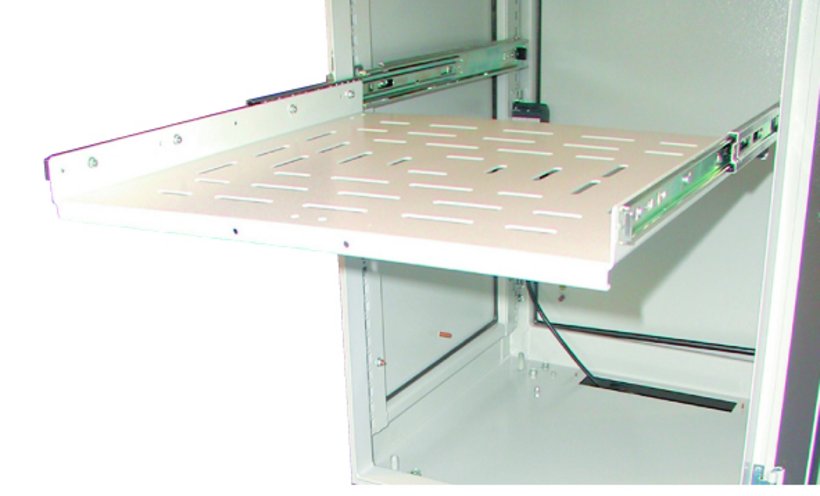

Extendable shelf for heavy loads
- Retainer - in closed position
- Over-extension
Product description
For the use in PC2096 cabinets and suitable for modular/free-standing häwa cabinets.
For mounting to cabinet frame.
The perforated bottom prevents the build-up of heat.
Technical Data
-
Order No.: 0396-6866-55-17
-
Material: Sheet steel
-
Extension length: 530 mm
-
Sheet thickness: 2 mm/0,08"
-
Construction height: 66 mm/2,60"
-
Load capacity: 68 kg
-
Suitabel for width: 600 mm
-
Suitable for depth: 625 mm
-
Weight: 7.8 kg
-
Surface: Powder coating RAL 7035, texture finish
-
Footprint: Width: 488 mm x Depth: 500 mm
Notice
- See operation manual type 2096-0000-01-77 on page 5 for the mounting instructions.
- For the mounting in free-standing cabinets type H390, 2 sets each of vertical mounting rails 0391-90xx-00-03 are required.
- Shelf with telescopic rails and mounting hardware.
0390-6018-60-07
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-6020-60-07
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6016-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6018-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6020-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6022-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2200 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
Assembly instructions:
