FixCool Filter Fans
- Snap-in version for quick mounting without tools
- Secure fit through sturdy plastic clips
- Easy filter pad exchange due to practical folding mechanism
- Available in the standard colors RAL 7035 and RAL 9005
Product description

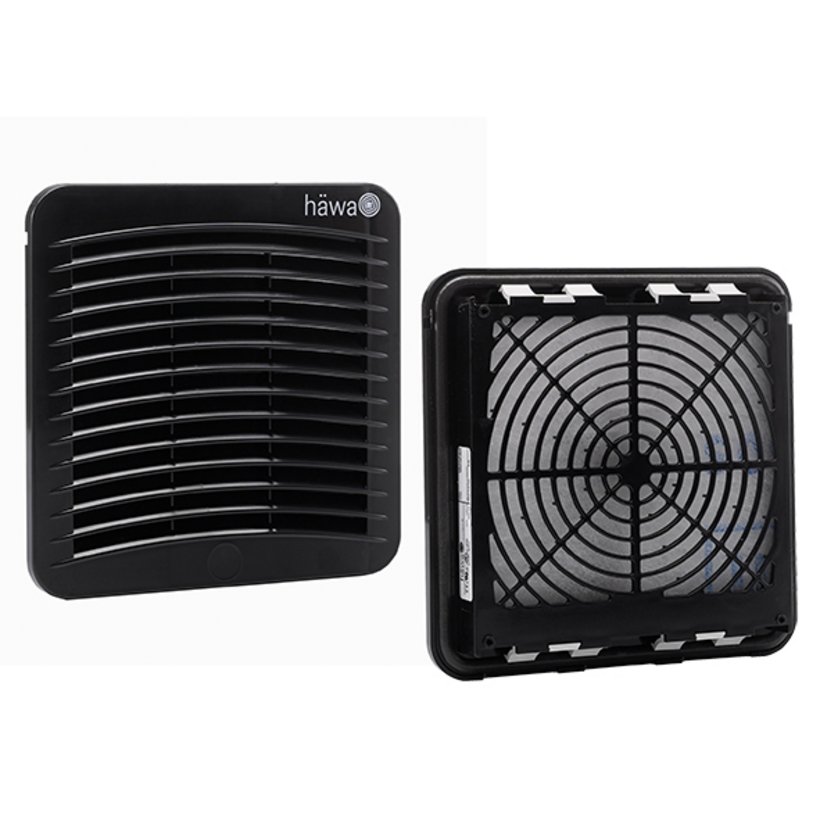

FixCool filter fan with standard filter pad in an innovative design for economical control cabinet cooling.
The front grid is made of robust, self-extinguishing plastic with seamless foamed-in seal.
Sturdy plastic clips allow quick installation and ensure a secure fit.
Two lateral auxiliary grooves facilitate the opening of the front grid, which is simply opened to the front to change the filter pad.
Technical Data
-
Order No.: 3156-0177-00-00-00
-
Protection type: IP54
-
Type Rating: Type 12
-
Cut-out Filter fan: 177x177 mm
-
Type: AC20
-
Material: plastic housing:PC/ABS
-
Approval: cURus; cULus
-
Weight: 0.37 kg
-
Dimension: Width : 204 mm Height : 204 mm Depth : 33.5 mm
-
Surface: RAL 9005
Notice
- For wall thicknesses from 3 mm (for type FC10 / AC10 from 2 mm), use the mounting hardware included in the scope of delivery as specified in the operating instructions.
- The air output can be increased by using several or larger exhaust filters
- Other options available on request
- 1 pc. FixCool filter fan
- Filter pad G3
3156-9003-20-00-00
Replacement Filter Pads for filter fans 3156
Suitable for
Filter fan FC20 / Exhaust filter AC20
Width
170 mm
Height
162 mm
3156-0177-11-00-00
FixCool Filter Fan
Nominal voltage
115 V AC
Protection class
IP54
Cut out dimension
177x177 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 108/114 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
Approvals
CE; cURus; cULus
Typ
FC20
3156-0177-23-00-00
FixCool Filter Fan
Nominal voltage
230 V AC
Protection class
IP54
Cut out dimension
177x177 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 108/114 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
Approvals
CE; cURus; cULus
Typ
FC20
3156-0177-24-00-00
FixCool Filter Fan
Nominal voltage
24 V DC
Protection class
IP54
Cut out dimension
177x177 mm
Unimpeded air flow
unimpeded air flow: 108 m3/h
with exhaust filter: 75 m3/h
with exhaust filter: 75 m3/h
Approvals
CE; cURus; cULus
Typ
FC20
