0396.6001.60.27

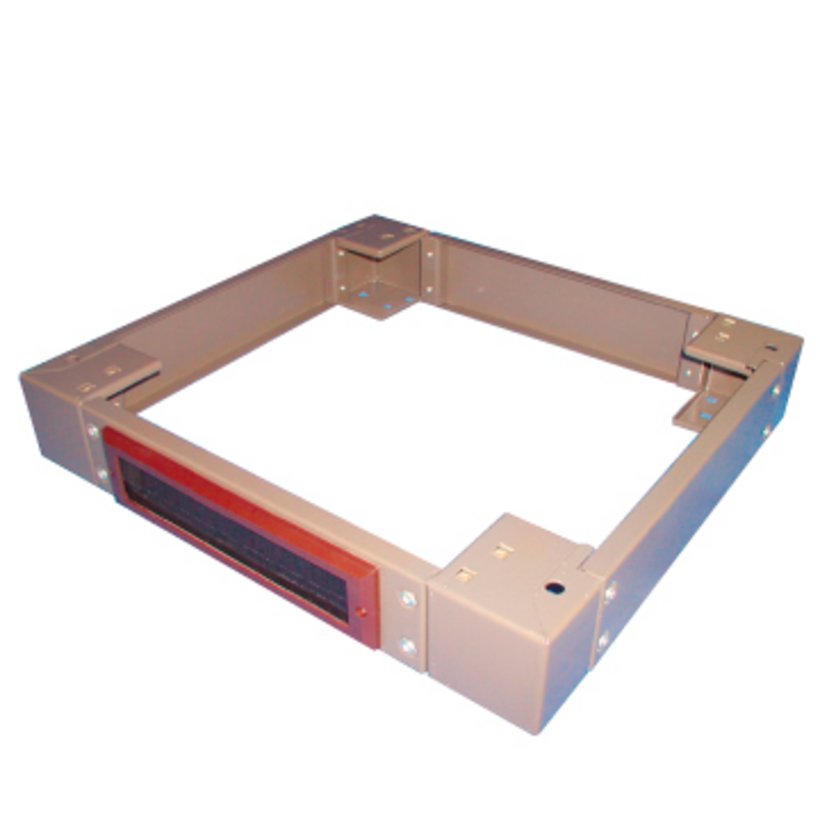

Base 100 mm high with brush strip for cabinets H390, H395 and PC2096
- Minimum set-up and assembly times!
- Free-standing or modular assembly
- High load carrying capacity
- Integrated cable entry
Product description
Base for installation under H390 H390, H395 and PC2096 cabinets. For modular assembly under H395 cabinets, the side panels are not installed to get a continuous cable chamber.
All panels are detachable, one panel with cable entry (brush strip).
Technical Data
-
Order No.: 0396.6001.60.27
-

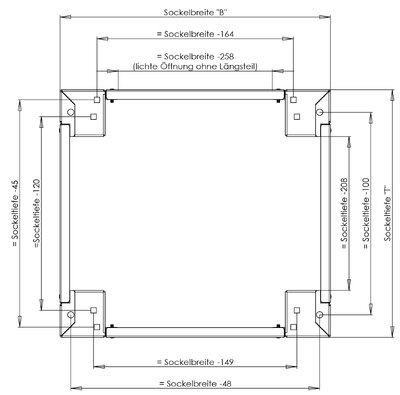

Dimension: Suitable for width: 600 mm/23,62" Suitable for depth: 600/625 mm 23,62"/24,61"
-
Type: with brush strip
-
Surface: Powder coated RAL 7022, texture finish
-
Material: Sheet steel
-
Weight: 7.5 kg
-
Base depth (t): 550 mm
Notice
- Sockets of this type are particularly recommended for PC-cabinets 2096.
- If used with cabinet H390, an offset of 25 mm will be in the back.
- Panels and corner sections pre-assembled, with cross sections and mounting hardware
0390-6018-60-07
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-6018-60-17
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-6020-60-07
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-6020-60-17
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6016-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6016-60-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6018-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6018-60-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6020-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6020-60-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6022-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2200 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6022-60-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2200 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
