8101-213-0703.03

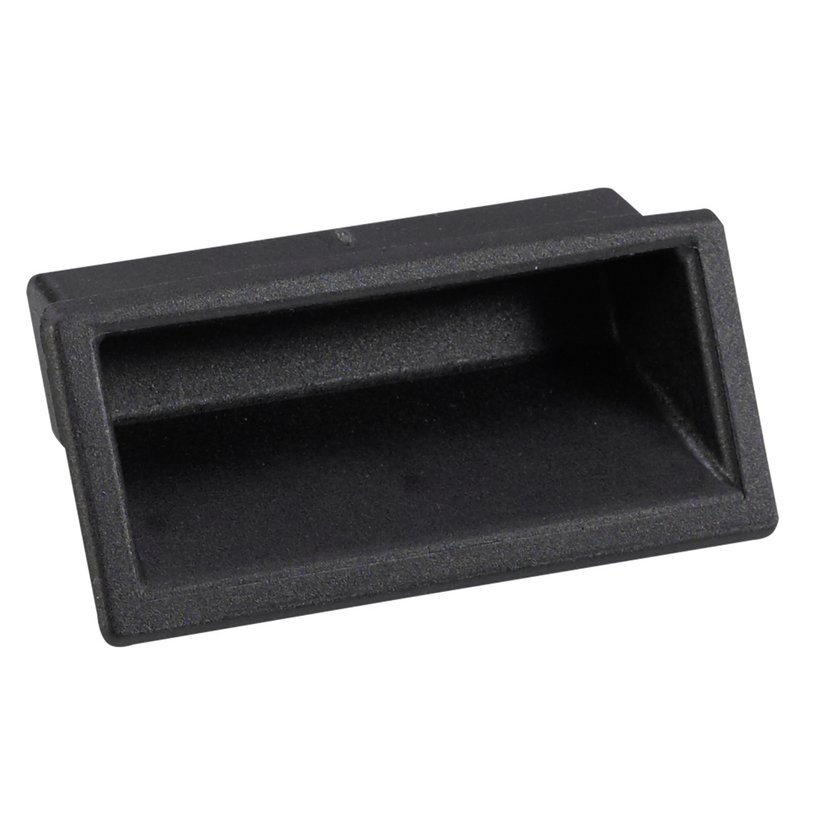

Recessed grip short
Technical Data
-
Order No.: 8101-213-0703.03
-
Material: PA black
-
Type: for sheet metal thickness 0,75 mm - 2,2 mm / 0,03" - 0,09"
-
For door thickness: 0,75 bis 0,79 mm: X=34,8+0,2 mm / Y=85+0,20,8 bis 1,4 mm: X=35,0+0,2 mm / Y=85+0,21,5 bis 2,2 mm: X=36,0+0,2 mm / Y=85+0,2
Notice
- Depending on material thickness used, the cutout has to be adjusted in height. The corresponding dimensions are indicated in the table below.
