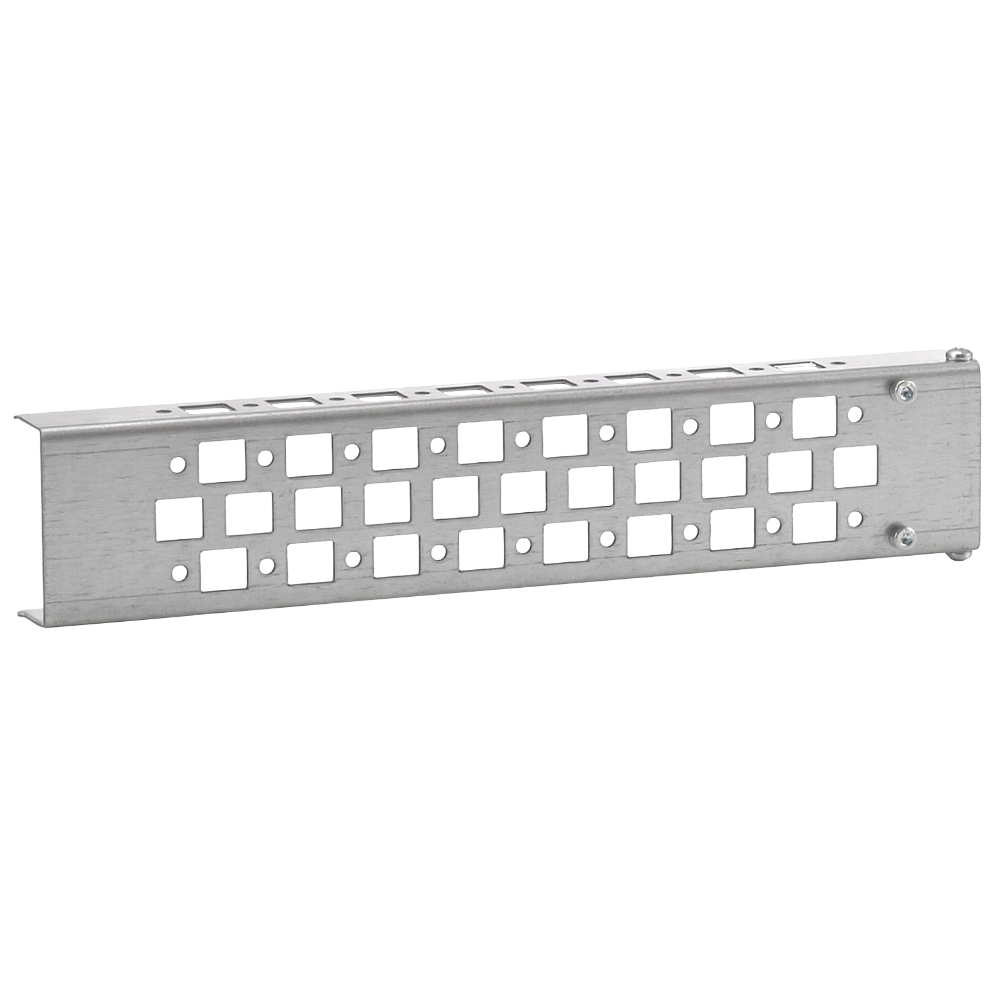

Universal rail

3362-7100-20-00

Universal rail

  • Interior installation to wall enclosures series 33 sheet steel without rework
  • can be used at different heights

Product description

Rail for mounting swivel frame type 0361

universal rail can be used at different heights

the universal rail can be mounted laterally behind the door frame

equipped with bore holes M5 and knockouts 13x11 mm for the use of self-tapping screws M5 and tilting captive nuts

Technical data

  • Article number: 3362-7100-20-00
  • suitable for: Wall-mount enclosures series 33, sheet steel
  • Material: rail: sheet steel (locking mechanism stainless steel)
  • suitable for depth: 200 mm
  • Total load capacity: 20 kg static load
  • Surface: Galvanized

Notice

  • Install smooth mounting plates prior to the mounting of the universal rail.
  • Flanged mounting plates can be mounted with already installed universal rail.
  • Note: The weight of the swing frame type 0361 or of other built-in components must be taken into account for the overall load capacity.
  • 1 set consisting of 2 universal rails
