Product description

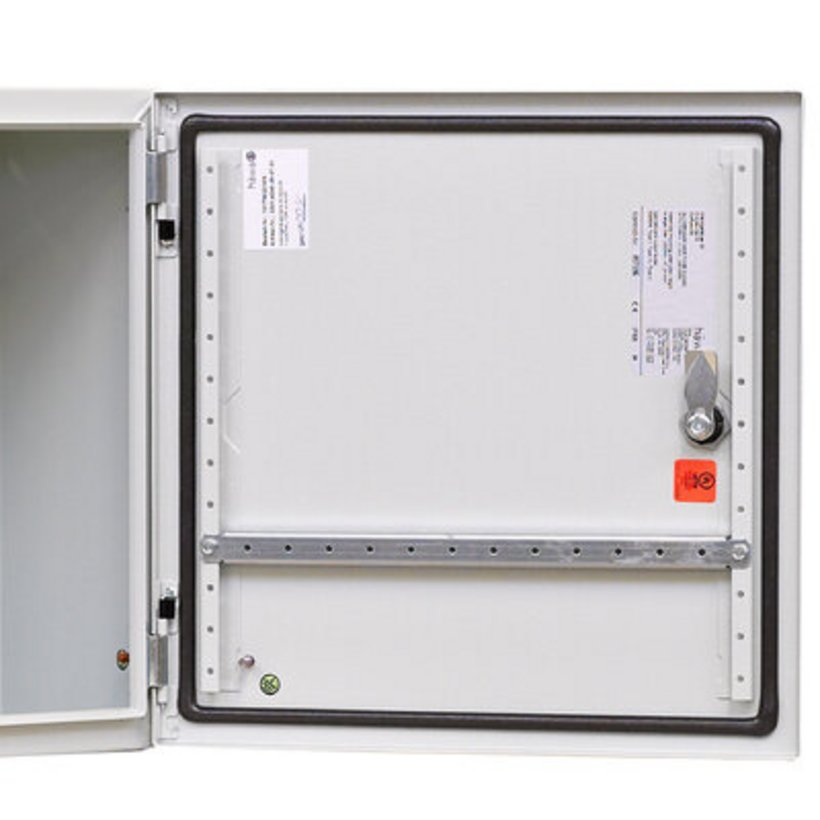

Mounting frames in doors suitable for wall enclosure series 33
Perforation suitable for self-tapping screws M5 in a 25 mm grid
Mounting possibilities e. g. for cable ducts, covers or reinforcements inside of the door
Fixation by self-tapping screws M5 on the perforated grid inside the doors
Technical Data
-
Order No.: 3362-0001-03-70
-
Material: Sheet steel 1,5 mm
-
Length: 384 mm
-
Suitabel for width: 450 mm
-
Surface: Galvanized
Notice
- Please use self-tapping screws 3003-7516-05-10
- 1 mounting frame
3331-4530-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
450 mm
Height
300 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4530-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
450 mm
Height
300 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
R:20199_15327
Wall-mount enclosures series 33 sheet steel, 1 door
Width
450 mm
Height
300 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
R:20199_6362
Wall-mount enclosures series 33 sheet steel, 1 door
Width
450 mm
Height
300 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
R:20203_15389
Wall-mount enclosure EMC, sheet steel 1 door
Width
450 mm
Height
300 mm
Depth
200 mm
Type
without mounting plate
R:20203_6403
Wall-mount enclosure EMC, sheet steel 1 door
Width
450 mm
Height
300 mm
Depth
200 mm
Type
with mounting plate
