Product description

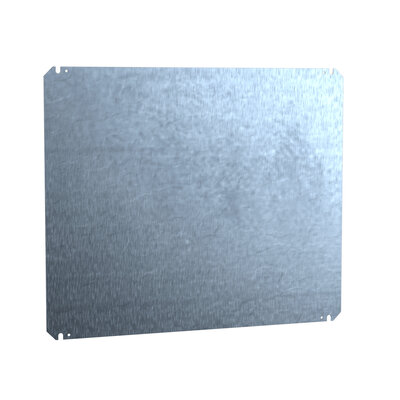

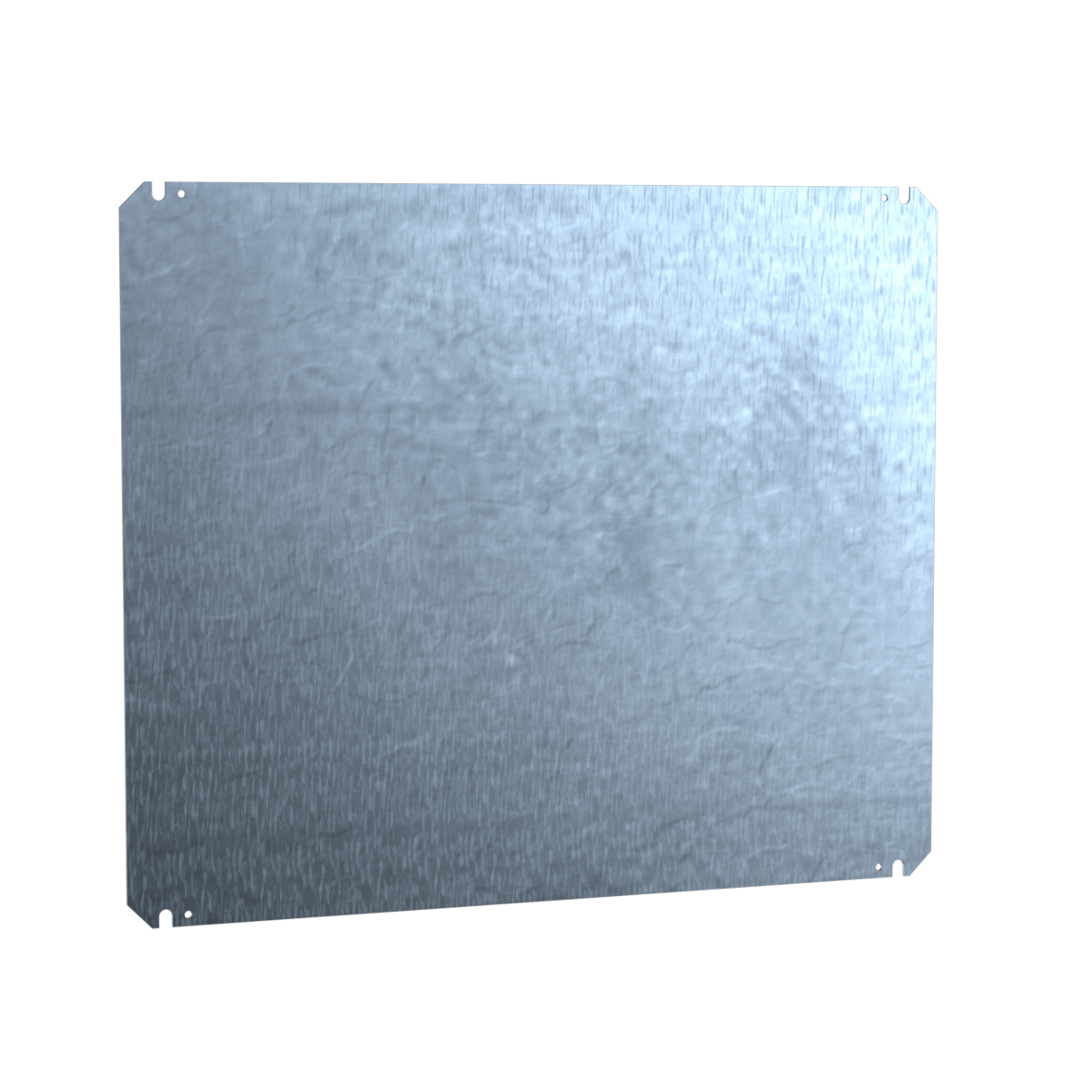

Mounting plate suitable for wall-mount enclosures landscape format.
Protective ground connection according to DIN EN 61439-1
Material: Sheet steel 2.5 mm
From enclosure width >= 800 mm mounting plate with 20 mm flanged edges
Technical Data
-
Order No.: 0339-8070-00-13
-
Width: 770 mm
-
Height: 643 mm
-
Suitabel for width: 800 mm
-
Suitable for height: 700 mm
-
Surface: Galvanized
-
Weight: 10 kg
-
Mounting plate smooth: 1
-
Mounting plate edged: 0
- 1 mounting plate without mounting hardware
3339-8070-30-17
Wall enclosure landscape format, sheet steel
Width
800 mm
Height
700 mm
Depth
300 mm
Type
single door
3339-8070-40-17
Wall enclosure landscape format, sheet steel
Width
800 mm
Height
700 mm
Depth
400 mm
Type
single door
R:20200_7426
Wall enclosure landscape format, sheet steel
Width
800 mm
Height
700 mm
Depth
400 mm
Type
single door
R:20200_7430
Wall enclosure landscape format, sheet steel
Width
800 mm
Height
700 mm
Depth
300 mm
Type
single door
