Product description

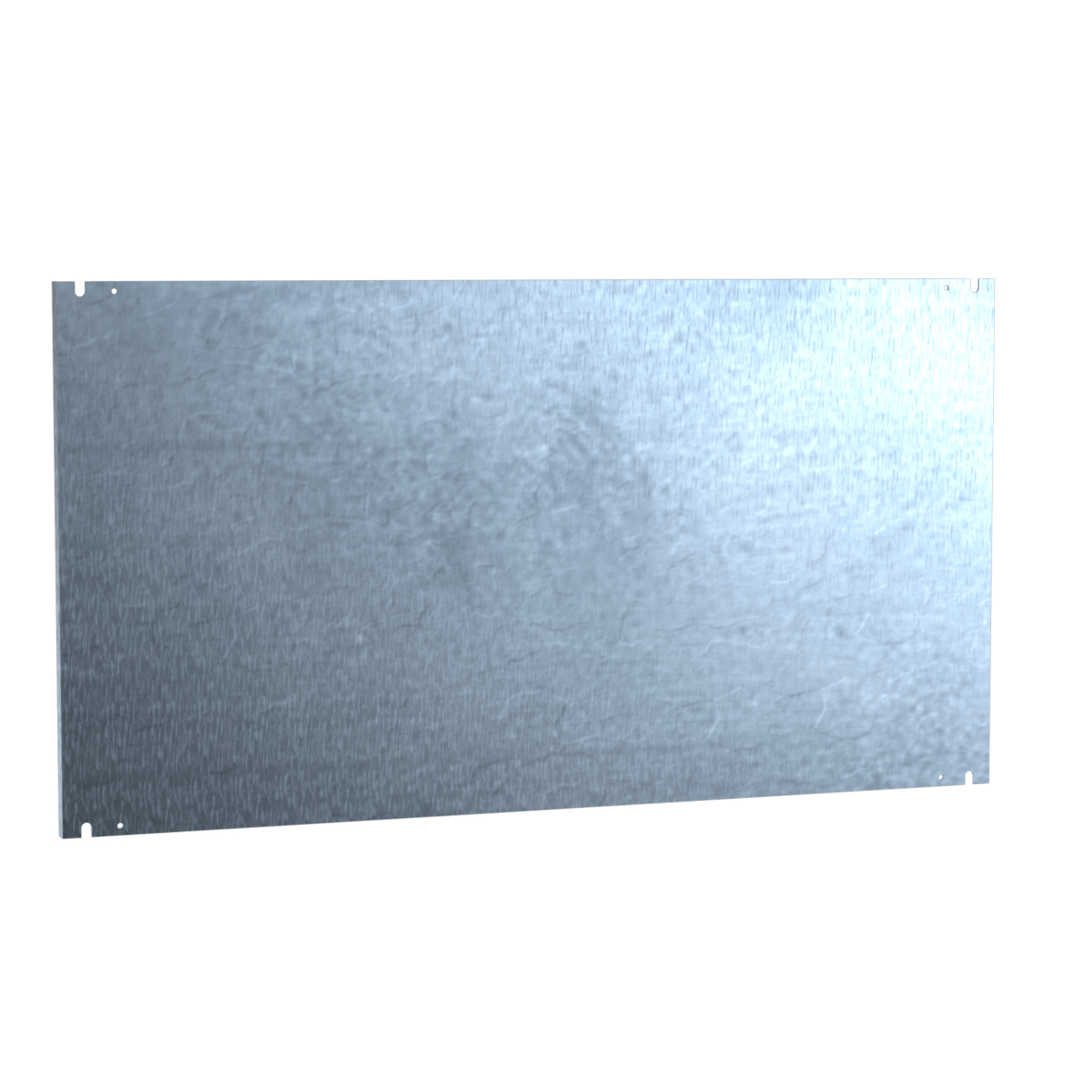

Mounting plate suitable for wall-mount enclosures landscape format.
Protective ground connection according to DIN EN 61439-1
Material: Sheet steel 2.5 mm
From enclosure width >= 800 mm mounting plate with 20 mm flanged edges
Technical Data
-
Order No.: 0339-1270-00-13
-
Width: 1170 mm
-
Height: 628 mm
-
Suitabel for width: 1200 mm
-
Suitable for height: 700 mm
-
Surface: Galvanized
-
Weight: 15 kg
- 1 mounting plate without mounting hardware
3339-1270-40-17
Wall enclosure landscape format, sheet steel
Width
1200 mm
Height
700 mm
Depth
400 mm
Type
double door
