0339-1070-00-13

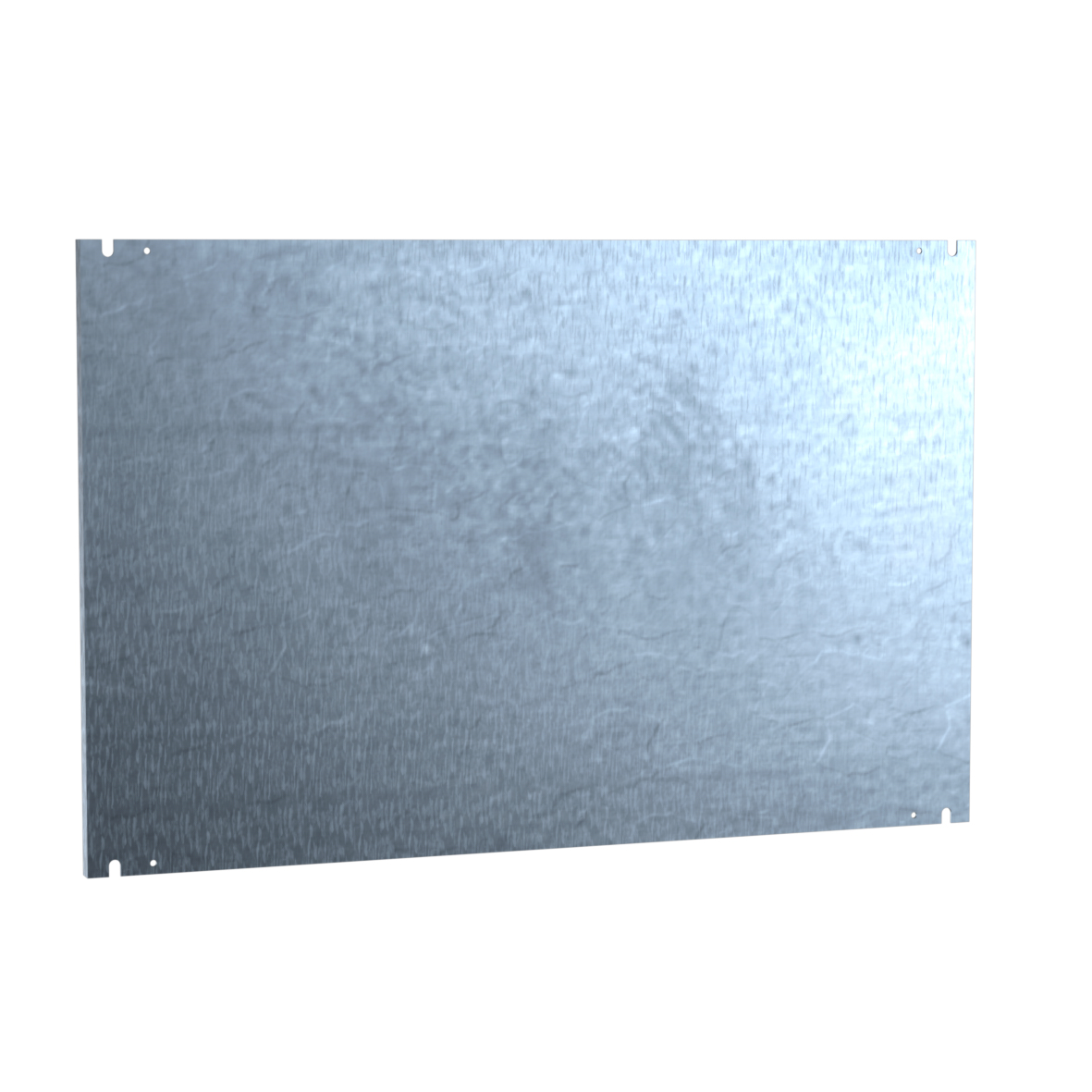

Mounting plate landscape format
Product description
Mounting plate suitable for wall-mount enclosures landscape format.
Protective ground connection according to DIN EN 61439-1
Material: Sheet steel 2.5 mm
From enclosure width >= 800 mm mounting plate with 20 mm flanged edges
Technical data
-
Article number: 0339-1070-00-13
-
Width: 970 mm
-
Height: 628 mm
-
suitable for width: 1000 mm
-
suitable for height: 700 mm
-
Surface: Galvanized
-
Weight: 13 kg
-
Edged mounting plate:
- 1 mounting plate without mounting hardware
3339-1070-40-17
Wall enclosure landscape format, sheet steel
Width
1000 mm
Height
700 mm
Depth
400 mm
Type
single door
CAD data and other illustrations:
