3351-3040-00-90

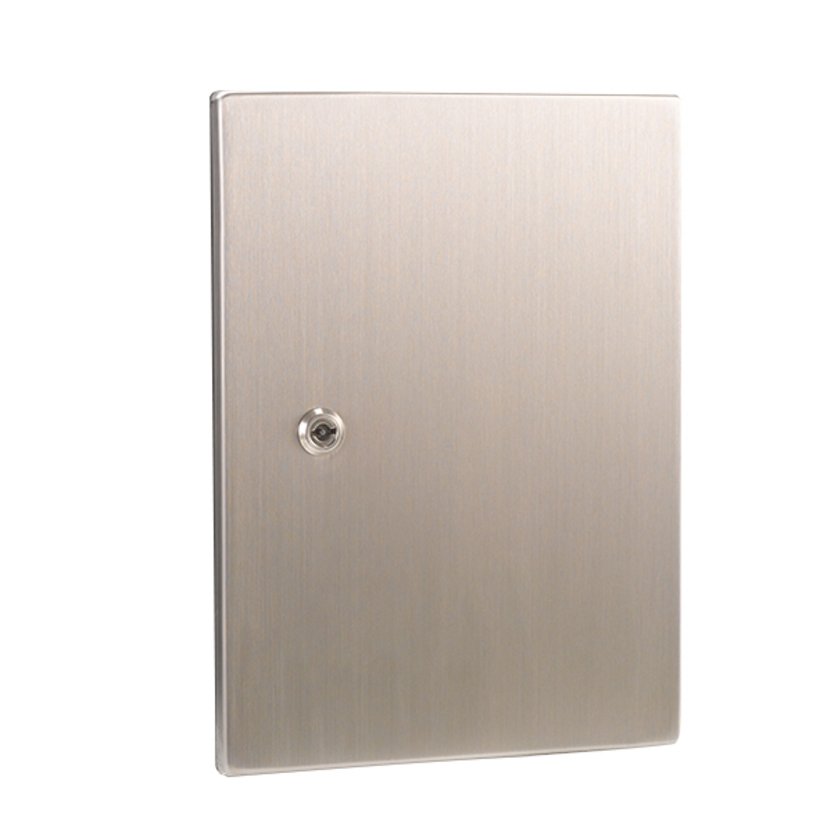

Replacement door for stainless steel enclosures of Series 33
Product description
Replacement door for stainless steel enclosures of Series 33
Protective ground connection to DIN EN 61439-1, bolt M6x16
With seamlessly foamed seal
Hidden stainless steel hinges, opening angle 180°, up to H=800 mm each door with 2 hinges, from H=801 mm with 3 hinges
Lock: up to H=400 mm with 1 quarter turn latch lock, from H=401 mm with 2 quarter turn latch locks, from H=801 mm with standard bar lock, 3 mm double mandrel
Doors from W=300 mm and H=400 mm on both sides with reinforcing / perforated profile with attachment holes with a diameter of 4.2 mm in a 25 mm grid.
Technical Data
-
Order No.: 3351-3040-00-90
-
Material: Stainless steel
-
Type: Single door
-
Suitabel for width: 300 mm
-
Suitable for height: 400 mm
-
Sheet thickness: Door: 1,5 mm
-
Protective ground connection: according to DIN EN 61439-1
-
Surface: Externally brushed
- Complete with lock, hinges and mounting hardware, as well as one key.
3351-3040-15-00
Wall-mount enclosures series 33, stainless steel, single door
Width
300 mm
Height
400 mm
Depth
150 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus
3351-3040-15-10
Wall-mount enclosures series 33, stainless steel, single door
Width
300 mm
Height
400 mm
Depth
150 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus
Assembly instructions:
CAD data and other file formats:
