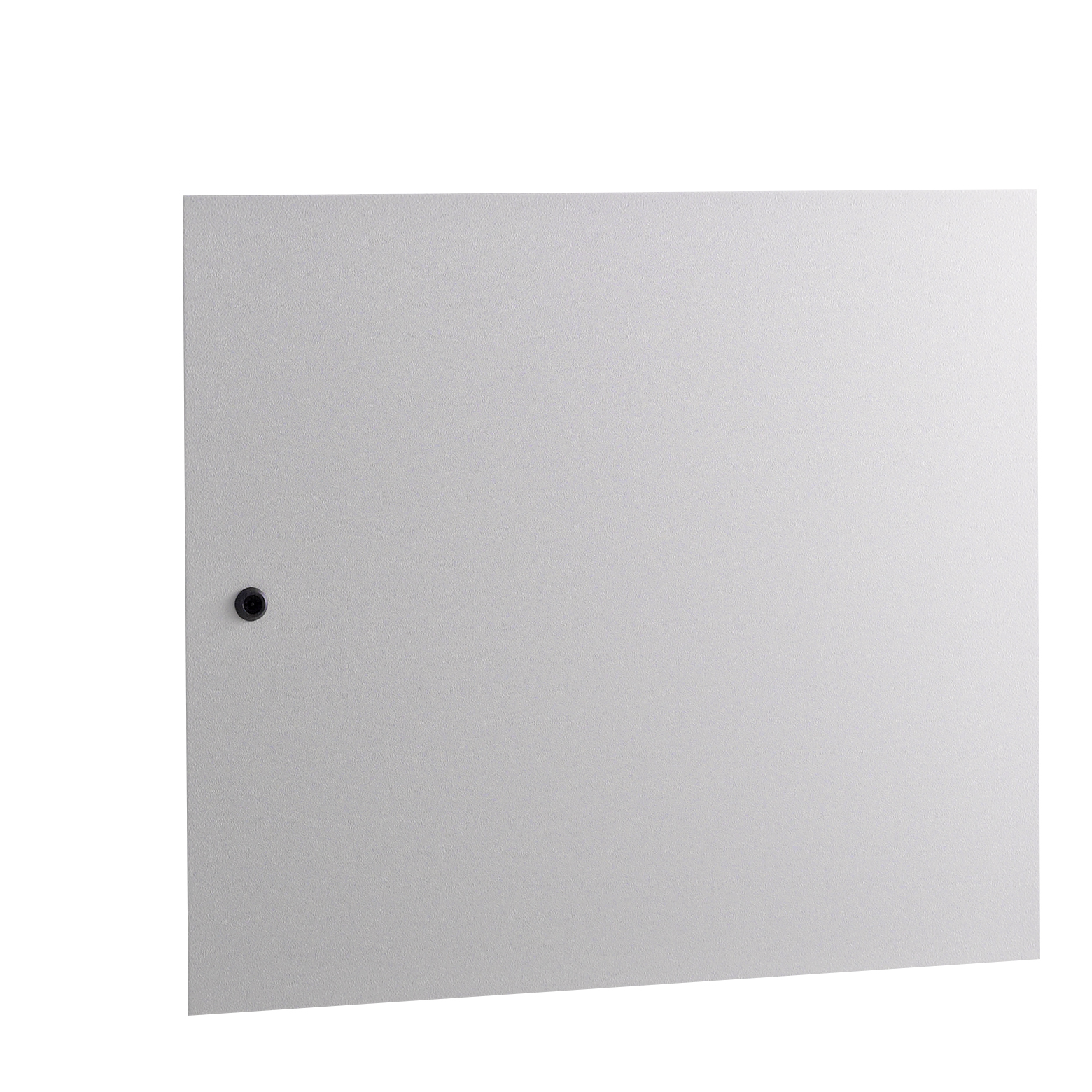

Replacement door wall-mount enclosures landscape format type 3339 made of sheet steel

3339-8070-00-97

Replacement door wall-mount enclosures landscape format type 3339 made of sheet steel

Product description

Replacement door suitable for wall-mount enclosures landscape format type 3339

Protective ground protection according to DIN EN 61439-1, M6x16 studs

With seamless foamed-in sealing

Hidden hinges made of sheet steel, 180° opening angle

Lock: 3-point locking bar, standard 3 mm double mandrel

On both sides with reinforcing / perforated profile with attachment holes Ø 4.2 mm at a 25 mm grid

Technical data

  • Article number: 3339-8070-00-97
  • Material: Sheet steel
  • Variant: Single door
  • suitable for width: 800 mm
  • suitable for height: 700 mm
  • Sheet thickness: 1.5 mm
  • Protective conductor connection: according to DIN EN 61439-1
  • Surface: Powder coating RAL 7035, texture finish
  • Complete with hinges and 1 key
  • Single doors and right doors additionally with lock
  • Double door sets with profile seal and fixing aid
Wall enclosure landscape format, sheet steel
3339-8070-30-17
Wall enclosure landscape format, sheet steel
Width
800 mm
Height
700 mm
Depth
300 mm
Type
single door
Wall enclosure landscape format, sheet steel
3339-8070-40-17
Wall enclosure landscape format, sheet steel
Width
800 mm
Height
700 mm
Depth
400 mm
Type
single door
Replacement door wall-mount enclosures landscape format type 3339 made of sheet steel
Replacement door wall-mount enclosures landscape format type 3339 made of sheet steel
Replacement door suitable for wall-mount enclosures landscape format type 3339
Protective ground protection according to DIN EN 61439-1, M6x16 studs
With seamless foamed-in sealing
Hidden hinges made of sheet steel, 180° opening angle
Lock: 3-point locking bar, standard 3 mm double mandrel
On both sides with reinforcing / perforated profile with attachment holes Ø 4.2 mm at a 25 mm grid
