3331-1080-01-97

Product description

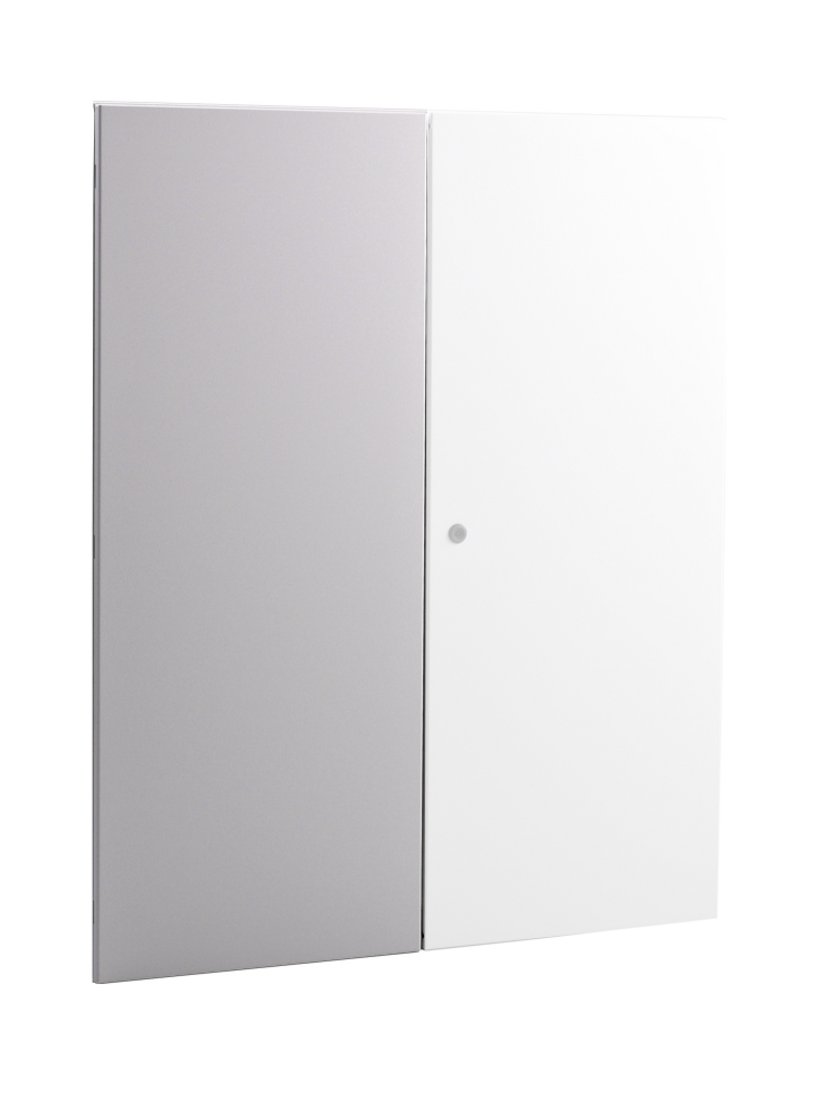

Replacement door for wall-mount enclosures of series 33.

Protective ground connection to DIN EN 61439-1, bolt M6x16

With seamlessly foamed seal

Hidden sheet steel hinges, opening angle 180°, each door with 3 hinges

Door on both sides with reinforcing / perforated profile with attachment holes with a diameter of 4.2 mm in a 25 mm grid.

Technical data

  • Article number: 3331-1080-01-97
  • PRODUKTGRUPPENNAMEEBENE4: Accessories for wall-mount enclosures (exterior)
  • PRODUKTGRUPPENNAMEEBENE5: Doors
  • Material: Sheet steel
  • Variant: Left door of double door set
  • suitable for width: 1000 mm
  • suitable for height: 800 mm
  • Sheet thickness: Door: 2 mm
  • Protective conductor connection: according to DIN EN 61439-1
  • Surface: Powder coating RAL 7035, texture finish
  • Complete with hinges and mounting hardware, as well as one key.
Wall-mount enclosures series 33, sheet steel, 2 doors
3331-1080-35-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
Wall-mount enclosures series 33, sheet steel, 2 doors
3331-1080-35-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
Wall-mount enclosures series 33, sheet steel, 2 doors
3331-1080-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
Wall-mount enclosures series 33, sheet steel, 2 doors
3331-1080-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
Protective ground connection to DIN EN 61439-1, bolt M6x16
With seamlessly foamed seal
Hidden sheet steel hinges, opening angle 180°, each door with 3 hinges
Door on both sides with reinforcing / perforated profile with attachment holes with a diameter of 4.2 mm in a 25 mm grid.
