3080-7055-12-07

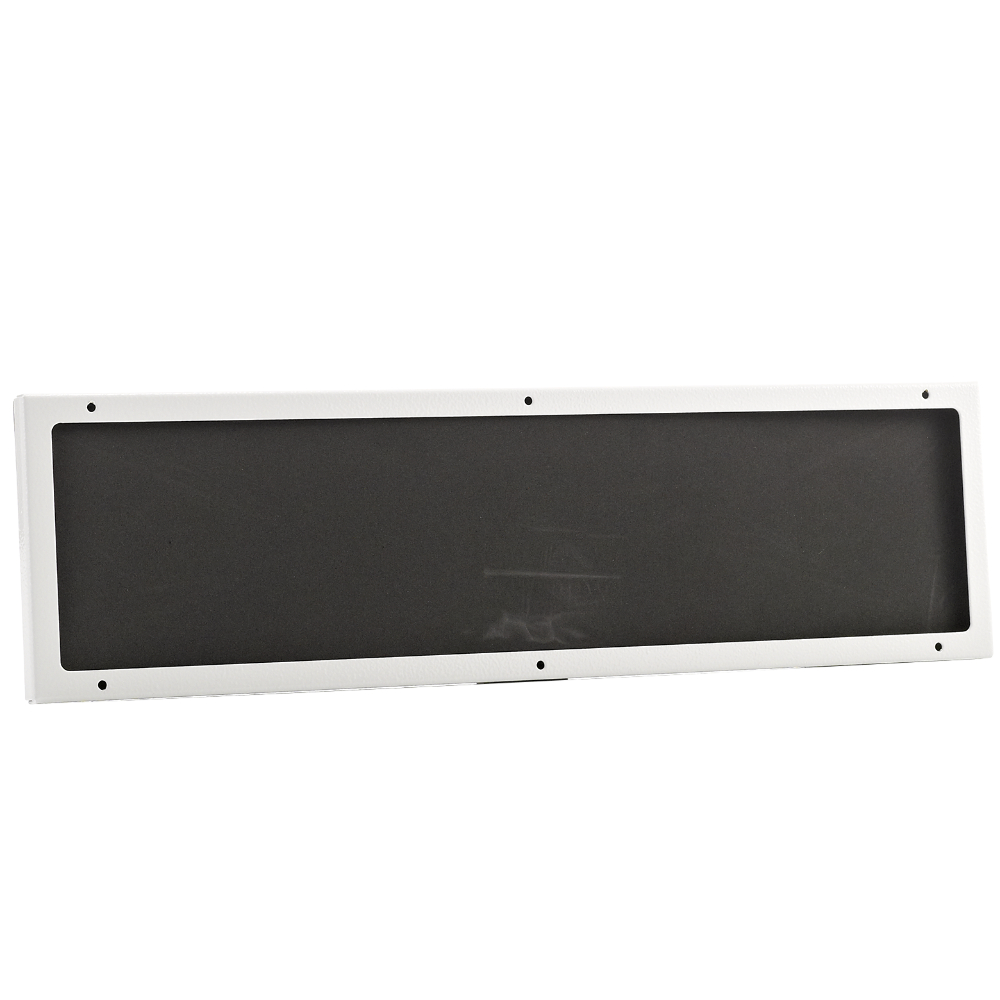

Cable entry plate for Series33 with rubber infill
- for easy cable insertion
Product description
Cable entry plate made from sheet steel with rubber infill
gasket enclosed
mounted using Gefu screws TX20
Technical Data
-
Order No.: 3080-7055-12-07
-
Sheet thickness: 1,5 mm
-
Material: Sheet steel; Rubber plate made from CR Neoprene cellular rubber
-
Surface: Powder coating RAL 7035, texture finish
-
Dimension: Width : 155 mm Length : 555 mm
- 1 cable entry plate with gasket and fixing parts
3331-1212-35-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1212-35-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1212-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1212-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1291-30-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
915 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1291-30-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
915 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-6010-35-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1000 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6010-35-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1000 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6010-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6010-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6012-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6012-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6012-35-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6012-35-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6012-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6012-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6040-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6040-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6040-35-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6040-35-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6060-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6060-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6060-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6060-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6060-35-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6060-35-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6060-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6060-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6070-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
700 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6070-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
700 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6080-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6080-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6080-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6080-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6080-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6080-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-7691-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
760 mm
Height
915 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-7691-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
760 mm
Height
915 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
CAD data and other file formats:
Contact for products
Find your personal point of contact
We are happy to help you.
The best switch cabinets and casings are not produced on an assembly line, but rather designed in close cooperation with our customers. Are you ready to begin? Then contact your personal häwa consultant.
