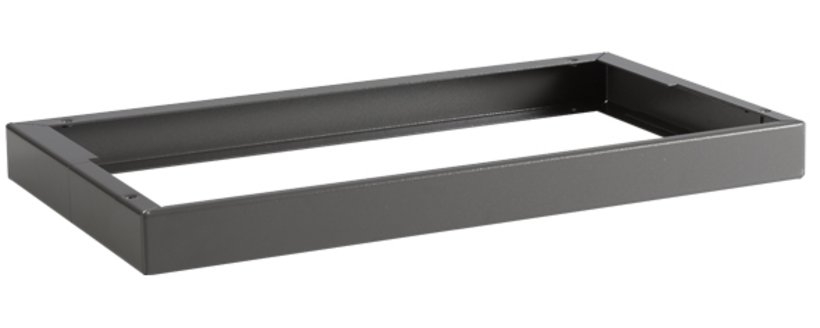

Bases
Bases

3336-6005-30-07

Bases

  • For floor installation of wall enclosures
  • welded U-profiles provide stability

Product description

Base for submounting.

4 bottom bore holes ø 8 mm for floor attachment.

4 top tapped bore holes M6 for enclosure attachment.

Technical Data

  • Order No.: 3336-6005-30-07
  • Material: Sheet steel
  • Suitabel for width: 600 mm
  • Suitable for depth: 300 mm
  • Base height: 50 mm
  • Base width: enclosure depth -17
  • Base width: = enclosure width
  • Sheet thickness: 2 mm
  • Surface: Powder coated RAL 7022, texture finish

Notice

  • The ø 6 mm attachment holes in the bottom of the enclosure must be punched by the customer.
  • 1 Base complete with fixing parts for screw mounting to the enclosure.
Wall-mount enclosures series 33 sheet steel, 1 door
3331-6012-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
further information
Wall-mount enclosures series 33 sheet steel, 1 door
3331-6012-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
further information
Wall-mount enclosures series 33 sheet steel, 1 door
3331-6060-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
further information
Wall-mount enclosures series 33 sheet steel, 1 door
3331-6060-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
further information
Wall-mount enclosures series 33 sheet steel, 1 door
3331-6080-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
further information
Wall-mount enclosures series 33 sheet steel, 1 door
3331-6080-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
further information
Wall-mount enclosures series 33 sheet steel, 1 door
R:20199_15340
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
further information
Wall-mount enclosures series 33 sheet steel, 1 door
R:20199_15342
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
further information
Wall-mount enclosures series 33 sheet steel, 1 door
R:20199_30365
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
further information
Wall-mount enclosures series 33 sheet steel, 1 door
R:20199_30366
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
further information
Wall-mount enclosures series 33 sheet steel, 1 door
R:20199_6373
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
further information
Wall-mount enclosures series 33 sheet steel, 1 door
R:20199_6374
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
further information
Wall-mount enclosure EMC, sheet steel 1 door
R:20203_15403
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate
further information
Wall-mount enclosure EMC, sheet steel 1 door
R:20203_15407
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
further information
Wall-mount enclosure EMC, sheet steel 1 door
R:20203_6414
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate
further information
Wall-mount enclosure EMC, sheet steel 1 door
R:20203_6415
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
further information
Save as PDF Save as PDF Direct enquiry
Bases
Bases
Base for submounting.
4 bottom bore holes ø 8 mm for floor attachment.
4 top tapped bore holes M6 for enclosure attachment.
notice
3336-6005-35-07
350 mm
600 mm
Sheet steel
50 mm
3336-6005-40-07
400 mm
600 mm
Sheet steel
50 mm
3336-8005-30-07
300 mm
800 mm
Sheet steel
50 mm
3336-8005-35-07
350 mm
800 mm
Sheet steel
50 mm
3336-8005-40-07
400 mm
800 mm
Sheet steel
50 mm
3336-1005-30-07
300 mm
1000 mm
Sheet steel
50 mm
3336-1005-35-07
350 mm
1000 mm
Sheet steel
50 mm
3336-1005-40-07
400 mm
1000 mm
Sheet steel
50 mm
3336-1205-30-07
300 mm
1200 mm
Sheet steel
50 mm
3336-1205-35-07
350 mm
1200 mm
Sheet steel
50 mm
3336-1205-40-07
400 mm
1200 mm
Sheet steel
50 mm
