2683-0992-03-01

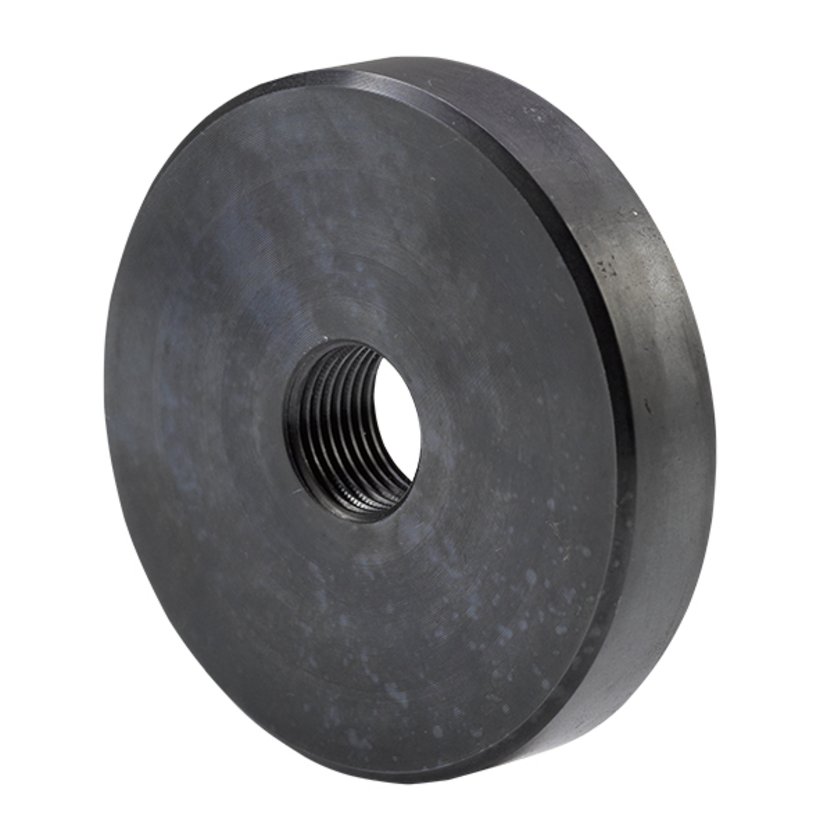

Nuts for Shaped Punches
Product description
The nut secures the punch on the draw stud.
Technical Data
-
Order No.: 2683-0992-03-01
-
Dimension: ø 75 x 15 mm
-
PRODUKTFAMILIE: for mobile devices
-
Thread: 19 mm
Notice
- For punches with a width > 76 mm
- 1 nut
2683-0125-00-02
Square Punch 125 mm / 4.92“ (ST+VA)
Product range
for mobile devices
Size
125 x 125 mm
Max. sheet metal thickness
Steel 2,5 mm + Stainless steel 2,0 mm
Draw stud
Ø 19 mm
2683-0992-00-02
Square Punch 92 mm / 3.62“
Product range
for mobile devices
Size
92 x 92 mm
Max. sheet metal thickness
Steel 3 mm + Stainless steel 2,5 mm
Draw stud
Ø 19 mm
