2683-0719-19-03

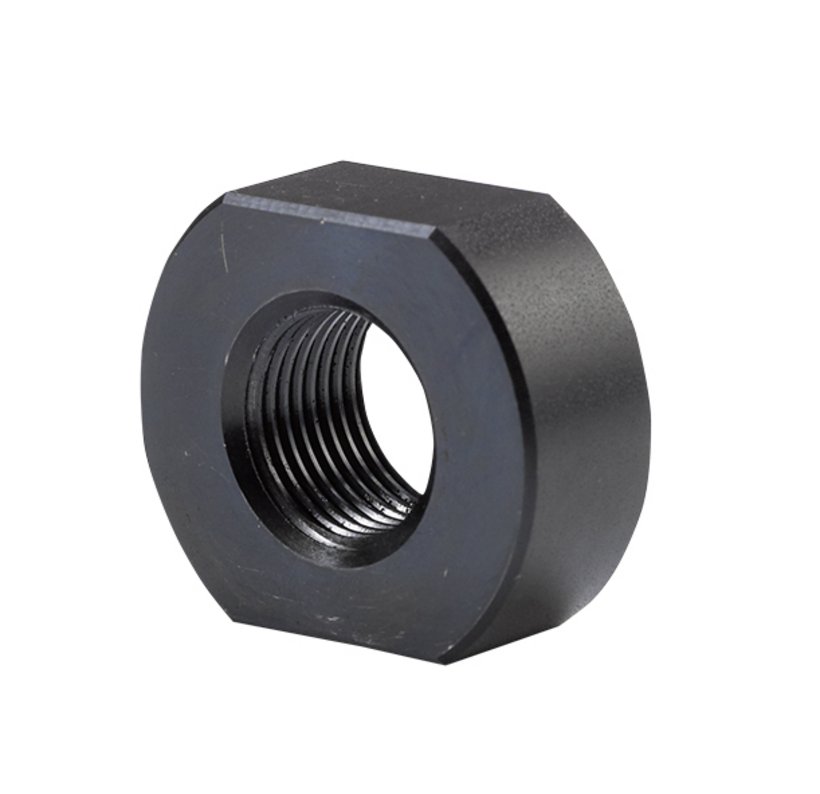

Nuts for Shaped Punches
Product description
The nut secures the punch on the draw stud.
Technical Data
-
Order No.: 2683-0719-19-03
-
Dimension: ø 40 x 16 mm with Width across flats 34 mm
-
PRODUKTFAMILIE: for mobile devices
-
Wrench size nut: 34 mm
-
Thread: 19 mm
Notice
- For punches with a width of 35 mm to 41 mm
- 1 nut
2683-0936-11-22
Rectangular Punch for Heavy Duty Connectors
Product range
for mobile devices
Size
36 x 112 mm
Max. sheet metal thickness
Steel 3 mm + Stainless steel 2,5 mm
Draw stud
Ø 19 mm
2683-0936-52-02
Rectangular Punch for Heavy Duty Connectors
Product range
for mobile devices
Size
36 x 52 mm
Max. sheet metal thickness
Steel 3 mm + Stainless steel 2,5 mm
Draw stud
Ø 19 mm
2683-0936-65-02
Rectangular Punch for Heavy Duty Connectors
Product range
for mobile devices
Size
36 x 65 mm
Max. sheet metal thickness
Steel 3 mm + Stainless steel 2,5 mm
Draw stud
Ø 19 mm
2683-0936-85-52
Rectangular Punch for Heavy Duty Connectors
Product range
for mobile devices
Size
36 x 85,5 mm
Max. sheet metal thickness
Steel 3 mm + Stainless steel 2,5 mm
Draw stud
Ø 19 mm
