Product description

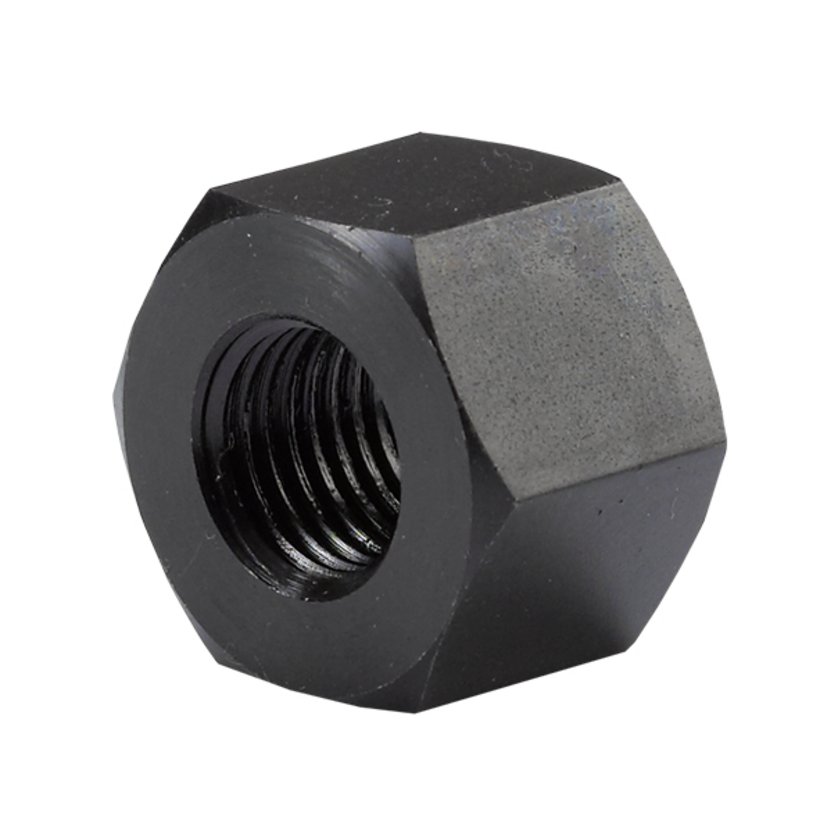

The nut secures the punch on the draw stud.
Technical Data
-
Order No.: 2683-0000-00-38
-
Product range: for mobile devices
-
Wrench size nut: 17 mm
-
Thread: 9,5 mm
- 1 nut
2683-0000-38-38
Draw Studs for Shaped Punches
Product range
for mobile devices
Draw stud
9,5/9,5 mm
Screw length
120 mm
Molding
SW 8; WAF 0.31" + 3te Fläche
R:21288_16553
Draw Studs for Shaped Punches
Product range
for mobile devices
Draw stud
9,5/9,5 mm
Screw length
120 mm
Molding
SW 8; WAF 0.31" + 3te Fläche
2683-0000-00-09
Formed punch for MinD D-Sub / IEEE
Product range
for mobile devices
Number of poles
9
Size
11,3 x 19,8 mm
Max. sheet metal thickness
Steel 1,75 mm / Stainless steel 1 mm / Aluminum 2 mm
Draw stud
ø 9,5 mm
2683-0000-00-37
Formed punch for MinD D-Sub / IEEE
Product range
for mobile devices
Number of poles
37
Size
11,3 x 58,4 mm
Max. sheet metal thickness
Steel 1,75 mm / Stainless steel 1 mm / Aluminum 2 mm
Draw stud
ø 9,5 mm
R:21251_16515
Formed punch for MinD D-Sub / IEEE
Product range
for mobile devices
Number of poles
9
Size
11,3 x 19,8 mm
Max. sheet metal thickness
Steel 1,75 mm / Stainless steel 1 mm / Aluminum 2 mm
Draw stud
ø 9,5 mm
R:21251_16767
Formed punch for MinD D-Sub / IEEE
Product range
for mobile devices
Number of poles
37
Size
11,3 x 58,4 mm
Max. sheet metal thickness
Steel 1,75 mm / Stainless steel 1 mm / Aluminum 2 mm
Draw stud
ø 9,5 mm
