2683-0000-00-12

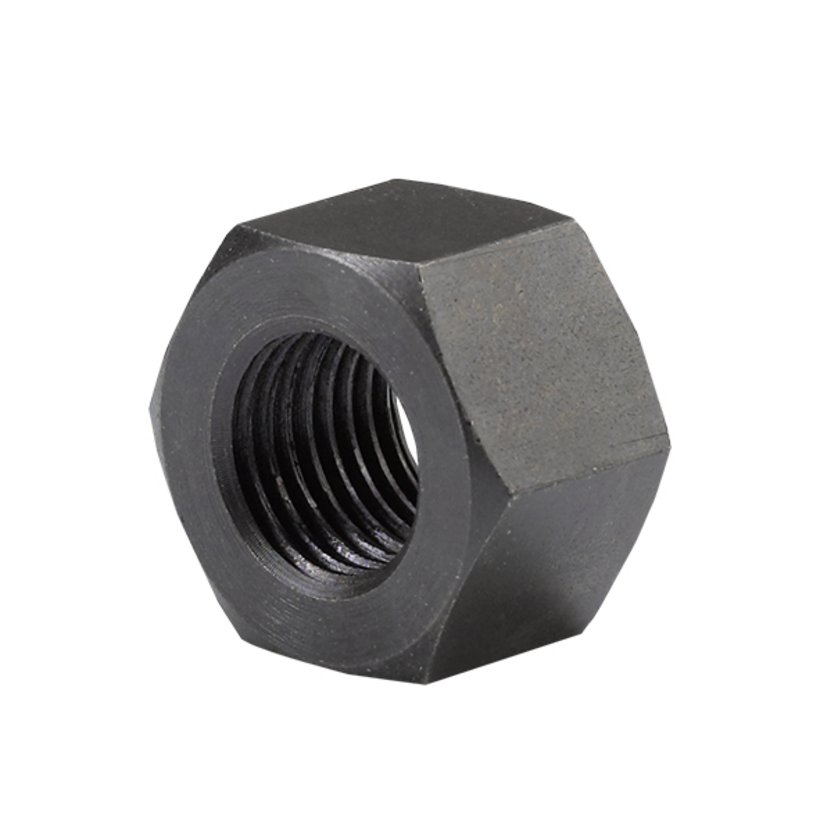

Nuts for Shaped Punches
Product description
The nut secures the punch on the draw stud.
Technical data
-
Article number: 2683-0000-00-12
-
Product family: for mobile devices
-
PRODUKTGRUPPENNAMEEBENE6: Draw studs and nuts for shaped punches
-
Width across flats nut: 19 mm
- 1 nut
2683-0000-00-50
Formed punch for MinD D-Sub / IEEE
Product range
for mobile devices
Max. sheet metal thickness
Steel 1,75 mm; 15ga / Stainless steel 1 mm; 20ga / Aluminum 2 mm; 12 ga
2683-0000-38-12
Draw Studs for Shaped Punches
Product range
for mobile devices
Draw stud
9,5/9,5 mm; 3/8"/3/8"
Screw length
110 mm
Molding
SW 12; WAF 0.47" + 3te Fläche
2683-0000-00-50
Formed punch for MinD D-Sub / IEEE
Product range
for mobile devices
Max. sheet metal thickness
Steel 1,75 mm; 15ga / Stainless steel 1 mm; 20ga / Aluminum 2 mm; 12 ga
