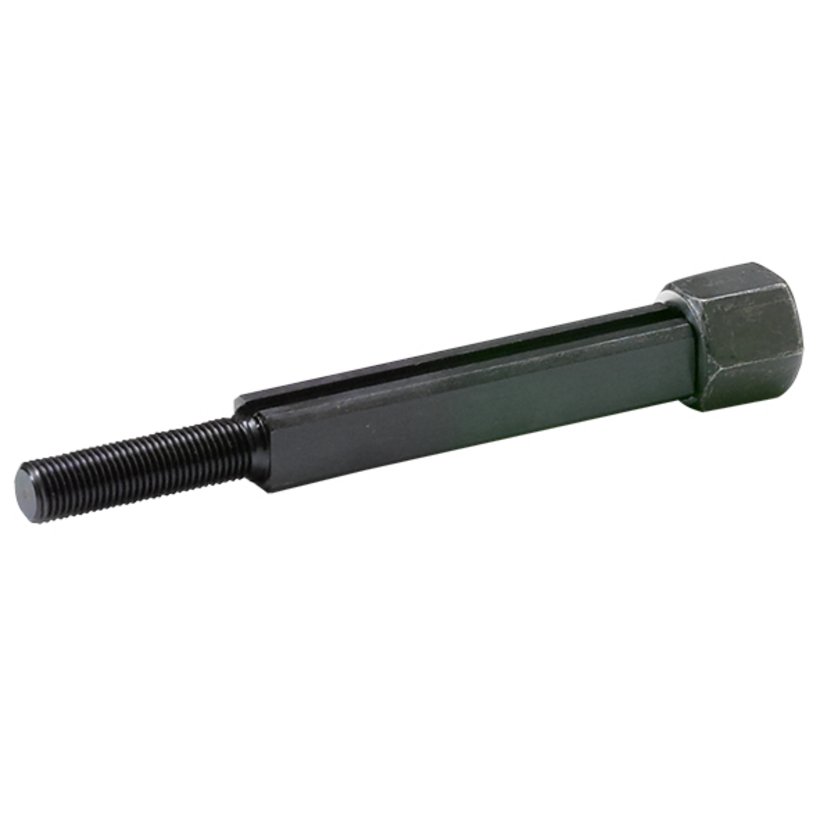

Product description
For punching cut-outs in sheet metals.
The shaped part of the draw stud prevents twisting of the punch to the die.
The nut secures the punch on the draw stud.
Technical Data
-
Order No.: 2623-0712-12-00
-
Product range: for mobile devices
-
Draw stud: 9,5 mm/M12
-
Screw length: 124 mm
-
Shaped punches: VK 12x12 mm with slot
-
Wrench size nut: 18 mm
-
Pilot hole Ø: 18.6 mm
- 1 draw stud with nut
2623-0922-20-00
Square Punch 22.2 mm / 0.87”
Product range
for mobile devices
Size
22,2 x 22,2 mm
Max. sheet metal thickness
Steel 2 mm + Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
2623-0922-30-00
Rectangular Punch 22 x 30
Product range
for mobile devices
Size
22 x 30 mm
Max. sheet metal thickness
Sheet steel 2 mm / Stainless steel 1,5 mm / Aluminium 3 mm
Draw stud
ø 9,5 mm
2623-0922-52-01
Round Punch with 2 Keyways
Product range
for mobile devices
Size
ø 22,5 mm
Max. sheet metal thickness
Steel 2 mm / Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
2623-0925-40-00
Square punch 25.4
Product range
for mobile devices
Size
25,4 x 25,4 mm
Max. sheet metal thickness
Steel 2 mm + Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
2683-0920-22-01
Turn Lock Shaped Punch
Product range
for mobile devices
Size
20,1 x 22,5 mm
Max. sheet metal thickness
Sheet steel 2 mm / Stainless steel 1,5 mm / Aluminium 3 mm
Draw stud
ø 9,5 mm
2683-0920-23-01
Turn Lock Shaped Punch
Product range
for mobile devices
Size
20,2 x 23,1 mm
Max. sheet metal thickness
Sheet steel 2 mm / Stainless steel 1,5 mm / Aluminium 3 mm
Draw stud
ø 9,5 mm
2683-0922-42-11
Rectangular Punch 22 x 42 mm
Product range
for mobile devices
Size
22 x 42 mm
Max. sheet metal thickness
Sheet steel 2 mm / Stainless steel 1,5 mm / Aluminium 3 mm
Draw stud
ø 9,5 mm
