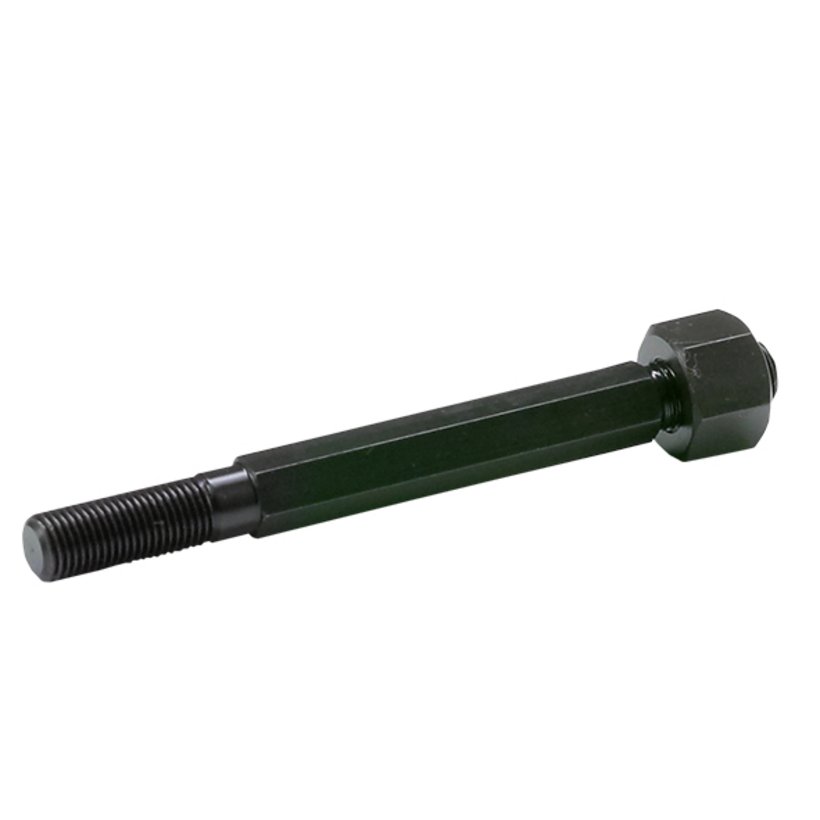

Draw Studs + Nuts for Shaped Punches
Product description
For punching cut-outs in sheet metals.
The shaped part of the draw stud prevents twisting of the punch to the die.
The nut secures the punch on the draw stud.
Technical Data
-
Order No.: 2623-0710-10-00
-
PRODUKTFAMILIE: for mobile devices
-
Draw stud: 9,5/9,5 mm
-
Screw length: 109 mm
-
Shaped punches: 7-kant, SW 10; WAF 0.39"
-
Wrench size nut: 17 mm
-
Pilot hole Ø: 9 mm
Notice
- Suitable for the already discontinued häwa square punch 15.8 mm with order number 2623-0915-80-00.
- 1 draw stud with nut
