2683-0906-52-04
Drilling Template
Product description

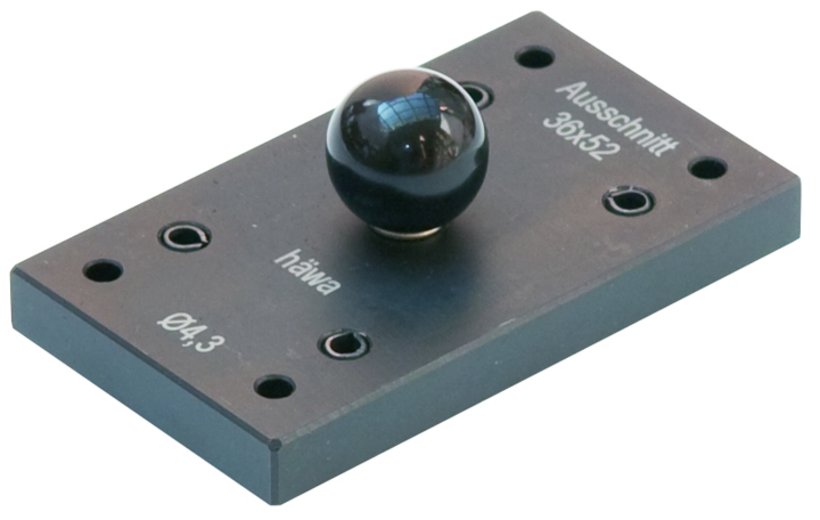

For drilling 4 attachment holes ø 4.3 mm after punching the cut-out for “heavy duty connectors“.
Technical data
-
Article number: 2683-0906-52-04
-
Product family: for mobile devices
-
PRODUKTGRUPPENNAMEEBENE4: Accessories Punching Tools
-
PRODUKTGRUPPENNAMEEBENE5: Accessories for sheet metal processing
-
Cut-out length L1: 52 mm
-
Hole spacing L2: 70 mm
-
Number of poles: 6
- 1 drilling template
2683-0936-52-02
Rectangular Punch for Heavy Duty Connectors
Product range
for mobile devices
Size
36 x 52 mm; 1.42 x 2.05"
Max. sheet metal thickness
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga

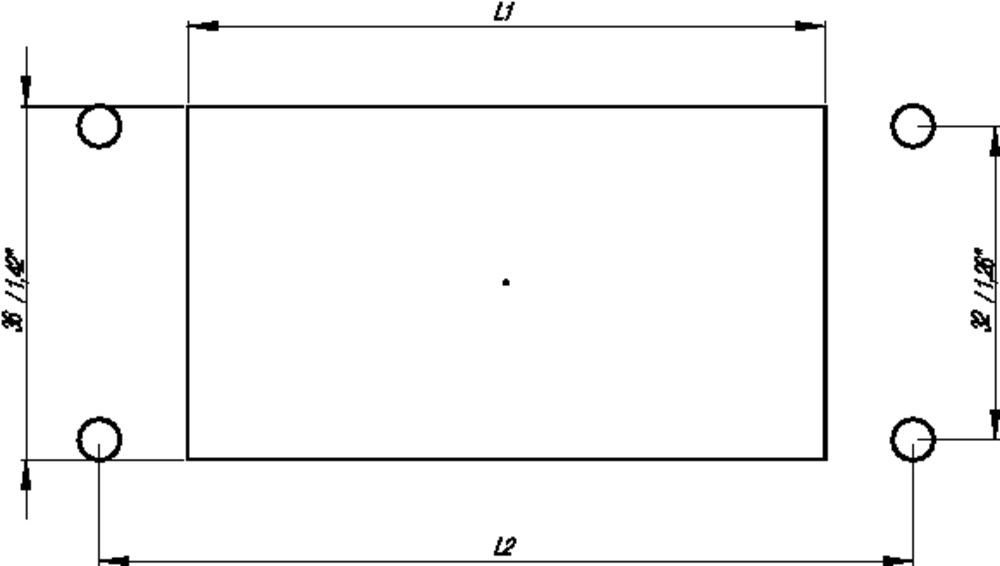

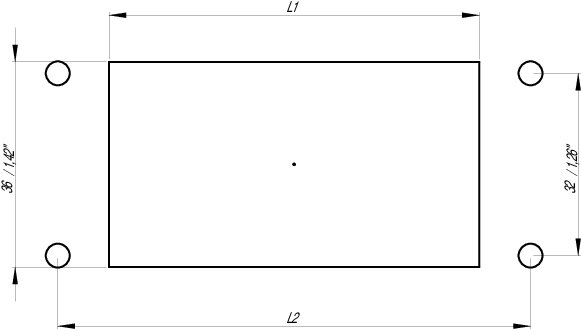

CAD data and other illustrations:
