2684-7600-01-00

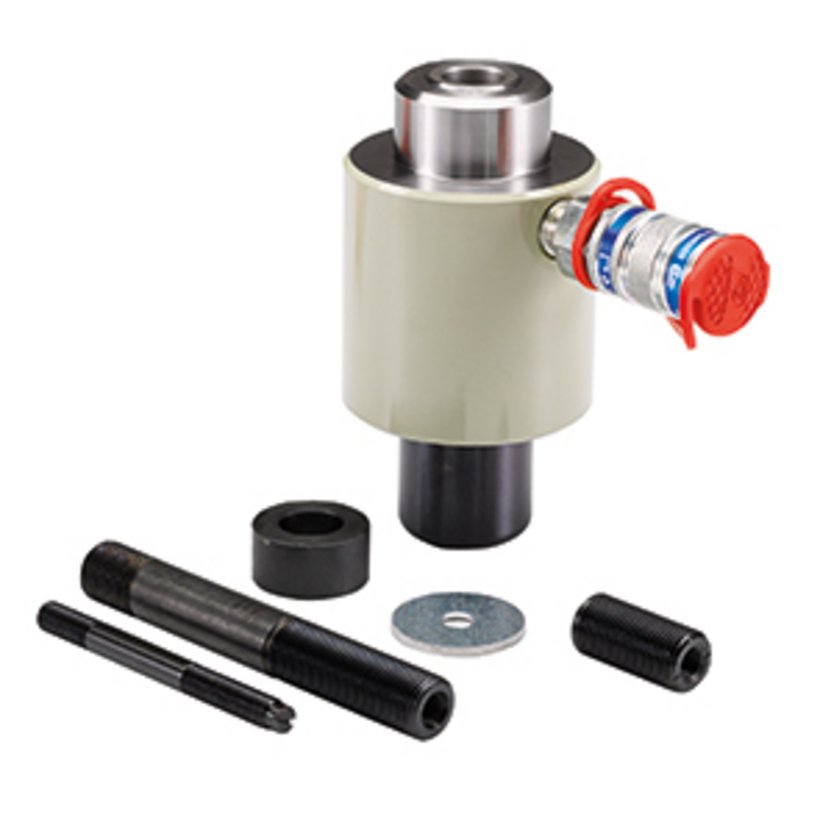

Hydraulic Cylinder 19 (3/4”)
- Designed for confined spaces
- Max. punching: ø 120 mm
Product description
For operating punches of section “Mobile Devices” with häwa electric or air hydraulic pump.
Ready for connection with quick release coupling, washer, spacer sleeve and 2 draw studs ø 9.5 mm and ø 19 mm.
Technical Data
-
Order No.: 2684-7600-01-00
-
Dimension: Punching cylinder: ø 78 x 148 mm
-
Suitable for: round punches up to ø 120 mm / square punches 92 mm / rectangular punches up to 138 mm diagonal
-
Max. sheet metal thickness: Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 4 mm
-
PRODUKTFAMILIE: for mobile devices
-
Threaded for: 19 mm draw studs
-
Weight: 2.7 kg
-
Piston stroke: 28 mm
Notice
- If the screw coupling of the pump hose is replaced by a plug-in nipple, this cylinder can also be operated with hand or foot pumps.
- 1 hydraulic cylinder
- 2 draw studs (stud with 2 x thread ø 9.5 mm and 2 x thread 19 mm)
- 1 washer
- 1 spacer sleeve
2623-0828-30-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 28,3 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Stainless steel 1,5 mm
Draw stud
Ø 19 mm
PG
PG
21
2623-0830-50-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 30,5 mm
Max. sheet metal thickness
Steel 3 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
Ø 19 mm
2623-0832-00-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 32 mm
Max. sheet metal thickness
Steel 3 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
Ø 19 mm
2623-0832-20-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 32,2 mm
Max. sheet metal thickness
Steel 3 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
Ø 19 mm
2623-0834-10-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 34,1 mm
Max. sheet metal thickness
Steel 3 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
Ø 19 mm
2623-0835-00-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 35 mm
Max. sheet metal thickness
Steel 3 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
Ø 19 mm
2623-0837-00-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 37 mm
Max. sheet metal thickness
Steel 3 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
Ø 19 mm
PG
PG
29
2623-0838-00-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 38 mm
Max. sheet metal thickness
Steel 3 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
Ø 19 mm
2623-0840-20-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 40,2 mm
Max. sheet metal thickness
Steel 3 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
Ø 19 mm
2623-0841-20-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 41,2 mm
Max. sheet metal thickness
Steel 3 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
Ø 19 mm
2623-0843-30-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 43,3 mm
Max. sheet metal thickness
Steel 3 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
Ø 19 mm
2623-0845-50-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 45,5 mm
Max. sheet metal thickness
Steel 3 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
Ø 19 mm
2623-0847-00-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 47 mm
Max. sheet metal thickness
Steel 3 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
Ø 19 mm
PG
PG
36
2623-0850-20-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 50,2 mm
Max. sheet metal thickness
Steel 3 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
Ø 19 mm
2623-0854-00-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 54 mm
Max. sheet metal thickness
Steel 3 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
Ø 19 mm
PG
PG
42
2623-0856-50-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 56,5 mm
Max. sheet metal thickness
Steel 3 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
Ø 19 mm
2623-0860-00-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 60 mm
Max. sheet metal thickness
Steel 3 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
Ø 19 mm
PG
PG
48
2623-0863-20-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 63,2 mm
Max. sheet metal thickness
Steel 3 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
Ø 19 mm
2623-0864-40-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 64,4 mm
Max. sheet metal thickness
Steel 3 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
Ø 19 mm
2623-0866-60-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 66,6 mm
Max. sheet metal thickness
Steel 3 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
Ø 19 mm
2623-0870-00-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 70 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Stainless steel 1,5 mm
Draw stud
Ø 19 mm
2623-0875-20-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 75,2 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Stainless steel 1,5 mm
Draw stud
Ø 19 mm
2623-0876-20-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 76,2 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Stainless steel 1,5 mm
Draw stud
Ø 19 mm
2623-0880-00-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 80 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Stainless steel 1,5 mm
Draw stud
Ø 19 mm
2623-0882-00-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 82 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Stainless steel 1,5 mm
Draw stud
Ø 19 mm
2623-0888-50-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 88,5 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Stainless steel 1,5 mm
Draw stud
Ø 19 mm
2623-0892-00-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 92 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1 mm
Stainless steel 1 mm
Draw stud
Ø 19 mm
2623-0810-20-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 102 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1 mm
Stainless steel 1 mm
Draw stud
Ø 19 mm
2623-0811-43-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 114,3 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1 mm
Stainless steel 1 mm
Draw stud
Ø 19 mm
2623-0812-01-00
Round Punch Threaded for Ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 120 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1 mm
Stainless steel 1 mm
Draw stud
Ø 19 mm
2682-0815-20-25
Round Punch Plus Threaded for ø 9.5 mm Draws Studs
Product range
for mobile devices
Size
ø 15,2 mm
Max. sheet metal thickness
Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
PG
PG
9
2682-0816-20-25
Round Punch Plus Threaded for ø 9.5 mm Draws Studs
Product range
for mobile devices
Size
ø 16,2 mm
Max. sheet metal thickness
Stainless steel 2 mm
Draw stud
ø 9,5 mm
2682-0818-60-25
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
Product range
for mobile devices
Size
ø 18,6 mm
Max. sheet metal thickness
Stainless steel 2 mm
Draw stud
ø 11,1 mm
PG
PG
11
2682-0820-20-25
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
Product range
for mobile devices
Size
ø 20,2 mm
Max. sheet metal thickness
Stainless steel 2 mm
Draw stud
ø 11,1 mm
PG
PG
13.5
2682-0820-40-25
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
Product range
for mobile devices
Size
ø 20,4 mm
Max. sheet metal thickness
Stainless steel 2 mm
Draw stud
ø 11,1 mm
PG
PG
13.5
2682-0822-50-25
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
Product range
for mobile devices
Size
ø 22,5 mm
Max. sheet metal thickness
Stainless steel 2 mm
Draw stud
ø 11,1 mm
PG
PG
16
2682-0825-20-25
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
Product range
for mobile devices
Size
ø 25,2 mm
Max. sheet metal thickness
Stainless steel 2 mm
Draw stud
ø 11,1 mm
2682-0828-50-25
Round Punch Plus Threaded for ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 28,5 mm
Max. sheet metal thickness
Stainless steel 2 mm
Draw stud
Ø 19 mm
PG
PG
21
2682-0830-50-25
Round Punch Plus Threaded for ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 30,5 mm
Max. sheet metal thickness
Stainless steel 2,5 mm
Draw stud
Ø 19 mm
2682-0832-20-25
Round Punch Plus Threaded for ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 32,2 mm
Max. sheet metal thickness
Stainless steel 2,5 mm
Draw stud
Ø 19 mm
2682-0837-00-25
Round Punch Plus Threaded for ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 37 mm
Max. sheet metal thickness
Stainless steel 2,5 mm
Draw stud
Ø 19 mm
PG
PG
29
2682-0840-20-25
Round Punch Plus Threaded for ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 40,2 mm
Max. sheet metal thickness
Stainless steel 2,5 mm
Draw stud
Ø 19 mm
2682-0847-00-25
Round Punch Plus Threaded for ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 47 mm
Max. sheet metal thickness
Stainless steel 2,5 mm
Draw stud
Ø 19 mm
PG
PG
36
2682-0850-20-25
Round Punch Plus Threaded for ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 50,2 mm
Max. sheet metal thickness
Stainless steel 2,5 mm
Draw stud
Ø 19 mm
2682-0854-00-25
Round Punch Plus Threaded for ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 54 mm
Max. sheet metal thickness
Stainless steel 2,5 mm
Draw stud
Ø 19 mm
PG
PG
42
2682-0860-00-25
Round Punch Plus Threaded for ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 60 mm
Max. sheet metal thickness
Stainless steel 2,5 mm
Draw stud
Ø 19 mm
PG
PG
48
2682-0863-20-25
Round Punch Plus Threaded for ø 19 mm Draw Studs
Product range
for mobile devices
Size
ø 63,2 mm
Max. sheet metal thickness
Stainless steel 2,5 mm
Draw stud
Ø 19 mm
2623-0812-20-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 12,2 mm
Max. sheet metal thickness
Steel 1,5 mm
Draw stud
ø 9,5 mm
2623-0812-70-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 12,7 mm
Max. sheet metal thickness
Steel 1,5 mm
Draw stud
ø 9,5 mm
PG
PG
7
2623-0814-00-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 14 mm
Max. sheet metal thickness
Steel 1,5 mm
Stainless steel 1 mm
Stainless steel 1 mm
Draw stud
ø 9,5 mm
2623-0815-20-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 15,2 mm
Max. sheet metal thickness
Steel 1,5 mm
Stainless steel 1 mm
Stainless steel 1 mm
Draw stud
ø 9,5 mm
PG
PG
9
2623-0816-20-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 16,2 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
2623-0817-30-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 17,3 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
2623-0818-60-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 18,6 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
PG
PG
11
2623-0819-00-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
Ø 19 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
2623-0820-20-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 20,2 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
ø 9,5 mm
2623-0820-40-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 20,4 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
ø 9,5 mm
PG
PG
13.5
2623-0821-30-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 21,3 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
ø 9,5 mm
2623-0822-50-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 22,5 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
ø 9,5 mm
PG
PG
16
2623-0823-80-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 23,8 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
ø 9,5 mm
2623-0824-50-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 24,5 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
ø 9,5 mm
2623-0825-20-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 25,2 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
ø 9,5 mm
2623-0827-00-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 27 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 2 mm
Stainless steel 2 mm
Draw stud
ø 9,5 mm
2623-0828-50-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 28,5 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
PG
PG
21
2623-0830-51-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 30,5 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
2623-0832-21-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 32,2 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
2623-0833-30-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 33,3 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
2623-0835-01-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 35 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
2623-0838-11-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 38,1 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
2682-7816-50-26
Round Punch Plus Kit, Metric from M16 to M50
Product range
for mobile devices
Size
metric round punch in mm: ø 16.2; ø 20.2; ø 25.2; ø 32.2; ø 40.2; ø 50.2
Max. sheet metal thickness
Stainless steel 2,5 mm
Draw stud
ø 9,5 mm / ø 11,1 mm und ø 19 mm
2623-7812-50-00
Round Punch Kit, Metric from M12 to M50
Product range
for mobile devices
Diameter dimensions
metric: metric round punches in mm: ø 12,2; 16,2; 20,2; 25,2; 32,2; 40,2; 50,2
Max. sheet metal thickness
Steel 3 mm
Draw stud
ø 9,5 mm / ø 19 mm
Type
without draw studs
2683-7812-50-20
Round Punch Kit, Metric from M12 to M50
Product range
for mobile devices
Diameter dimensions
metric: metric round punches in mm: ø 12,2; 16,2; 20,2; 25,2; 32,2; 40,2; 50,2
Max. sheet metal thickness
Steel 3 mm
Draw stud
ø 9,5 mm / ø 19 mm
Type
with draw studs
2623-7812-30-00
Round Punch Kit, from PG7 to PG21 + ø 30.5 mm
Product range
for mobile devices
Diameter dimensions
PG round punch in PG: 7;9;11;13;16;21 and ø 30.5 mm
Max. sheet metal thickness
Steel 3 mm
Draw stud
ø 9,5 mm
Type
without draw studs
2683-7812-30-20
Round Punch Kit, from PG7 to PG21 + ø 30.5 mm
Product range
for mobile devices
Diameter dimensions
PG round punch in PG: 7;9;11;13;16;21 and ø 30.5 mm
Max. sheet metal thickness
Steel 3 mm
Draw stud
ø 9,5 mm
Type
with draw studs
2623-7812-60-00
Round Punch Kit from PG7 to PG48 + ø 30.5 mm
Product range
for mobile devices
Diameter dimensions
PG round punches in PG: 7;9;11;13;16;21;29;36;42;48 and ø 30.5 mm
Max. sheet metal thickness
Steel 3 mm
Draw stud
ø 9,5 mm / ø 19 mm
Type
without draw studs
2683-7812-60-30
Round Punch Kit from PG7 to PG48 + ø 30.5 mm
Product range
for mobile devices
Diameter dimensions
PG round punches in PG: 7;9;11;13;16;21;29;36;42;48 and ø 30.5 mm
Max. sheet metal thickness
Steel 3 mm
Draw stud
ø 9,5 mm / ø 19 mm
Type
with draw studs
2623-0922-20-00
Square Punch 22.2 mm / 0.87”
Product range
for mobile devices
Size
22,2 x 22,2 mm
Max. sheet metal thickness
Steel 2 mm + Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
2623-0925-40-00
Square punch 25.4
Product range
for mobile devices
Size
25,4 x 25,4 mm
Max. sheet metal thickness
Steel 2 mm + Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
2683-0945-00-02
Square Punch 45 mm
Product range
for mobile devices
Size
45 x 45 mm
Max. sheet metal thickness
Steel 3 mm + Stainless steel 2,5 mm
Draw stud
Ø 19 mm
2683-0946-00-02
Square Punch 46 mm/9.5 (3/8”)
Product range
for mobile devices
Size
46 x 46 mm
Max. sheet metal thickness
Steel 3 mm + Stainless steel 2,5 mm
Draw stud
Ø 19 mm
2683-0968-00-02
Square Punch 68 mm / 2.68“
Product range
for mobile devices
Size
68 x 68 mm
Max. sheet metal thickness
Steel 3 mm + Stainless steel 2,5 mm
Draw stud
Ø 19 mm
2683-0992-00-02
Square Punch 92 mm / 3.62“
Product range
for mobile devices
Size
92 x 92 mm
Max. sheet metal thickness
Steel 3 mm + Stainless steel 2,5 mm
Draw stud
Ø 19 mm
2623-0922-30-00
Rectangular Punch 22 x 30
Product range
for mobile devices
Size
22 x 30 mm
Max. sheet metal thickness
Sheet steel 2 mm / Stainless steel 1,5 mm / Aluminium 3 mm
Draw stud
ø 9,5 mm
2683-0922-42-11
Rectangular Punch 22 x 42 mm
Product range
for mobile devices
Size
22 x 42 mm
Max. sheet metal thickness
Sheet steel 2 mm / Stainless steel 1,5 mm / Aluminium 3 mm
Draw stud
ø 9,5 mm
2683-0925-50-00
Rectangular Punch 25 x 50 mm
Product range
for mobile devices
Size
25 x 50 mm
Max. sheet metal thickness
Steel 2 mm + Stainless steel 1,5 mm
Draw stud
Ø 19 mm
2683-0946-92-02
Rectangular punch 46 x 92 mm
Product range
for mobile devices
Size
46 x 92 mm
Max. sheet metal thickness
Steel 3 mm + Stainless steel 2,5 mm
Draw stud
Ø 19 mm
2683-0936-52-02
Rectangular Punch for Heavy Duty Connectors
Product range
for mobile devices
Size
36 x 52 mm
Max. sheet metal thickness
Steel 3 mm + Stainless steel 2,5 mm
Draw stud
Ø 19 mm
2683-0936-65-02
Rectangular Punch for Heavy Duty Connectors
Product range
for mobile devices
Size
36 x 65 mm
Max. sheet metal thickness
Steel 3 mm + Stainless steel 2,5 mm
Draw stud
Ø 19 mm
2683-0936-85-52
Rectangular Punch for Heavy Duty Connectors
Product range
for mobile devices
Size
36 x 85,5 mm
Max. sheet metal thickness
Steel 3 mm + Stainless steel 2,5 mm
Draw stud
Ø 19 mm
2683-0936-11-22
Rectangular Punch for Heavy Duty Connectors
Product range
for mobile devices
Size
36 x 112 mm
Max. sheet metal thickness
Steel 3 mm + Stainless steel 2,5 mm
Draw stud
Ø 19 mm
2623-0922-52-01
Round Punch with 2 Keyways
Product range
for mobile devices
Size
ø 22,5 mm
Max. sheet metal thickness
Steel 2 mm / Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
2683-0000-00-37
Formed punch for MinD D-Sub / IEEE
Product range
for mobile devices
Number of poles
37
Size
11,3 x 58,4 mm
Max. sheet metal thickness
Steel 1,75 mm / Stainless steel 1 mm / Aluminum 2 mm
Draw stud
ø 9,5 mm
2683-0000-00-09
Formed punch for MinD D-Sub / IEEE
Product range
for mobile devices
Number of poles
9
Size
11,3 x 19,8 mm
Max. sheet metal thickness
Steel 1,75 mm / Stainless steel 1 mm / Aluminum 2 mm
Draw stud
ø 9,5 mm
2683-0000-00-50
Formed punch for MinD D-Sub / IEEE
Product range
for mobile devices
Number of poles
50
Size
11,3 x 58,4 mm
Max. sheet metal thickness
Steel 1,75 mm / Stainless steel 1 mm / Aluminum 2 mm
Draw stud
ø 9,5 mm
2683-0920-22-01
Turn Lock Shaped Punch
Product range
for mobile devices
Size
20,1 x 22,5 mm
Max. sheet metal thickness
Sheet steel 2 mm / Stainless steel 1,5 mm / Aluminium 3 mm
Draw stud
ø 9,5 mm
2683-0920-23-01
Turn Lock Shaped Punch
Product range
for mobile devices
Size
20,2 x 23,1 mm
Max. sheet metal thickness
Sheet steel 2 mm / Stainless steel 1,5 mm / Aluminium 3 mm
Draw stud
ø 9,5 mm
2683-0710-00-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 9,5/9,5 mm
Screw length
72 mm
2684-0711-19-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 11,1/19 mm
Screw length
112 mm
2624-0719-10-01
Reduction Sleeve 19-9.5 (3/4”- 3/8”)
Product range
for mobile devices
Thread
19/9,5 mm
Length
40 mm
2622-0719-03-00
Spacer Sleeve
Product range
for mobile devices
Outer diameter
36 mm
Inner diameter
19.5 mm
Length
18 mm
2626-7200-20-00
Washer
Product range
for mobile devices
Outer diameter
40 mm
Inner diameter
10 mm
Thickness
3 mm
2622-0719-03-00
Spacer Sleeve
Product range
for mobile devices
Outer diameter
36 mm
Inner diameter
19.5 mm
Length
18 mm
2626-7200-20-00
Washer
Product range
for mobile devices
Outer diameter
40 mm
Inner diameter
10 mm
Thickness
3 mm
2623-0710-00-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 9,5/9,5 mm
Screw length
100 mm
2683-0719-00-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 19/19 mm
Screw length
135 mm
Assembly instructions:
Contact for products
Find your personal point of contact
We are happy to help you.
The best switch cabinets and casings are not produced on an assembly line, but rather designed in close cooperation with our customers. Are you ready to begin? Then contact your personal häwa consultant.
