Product description

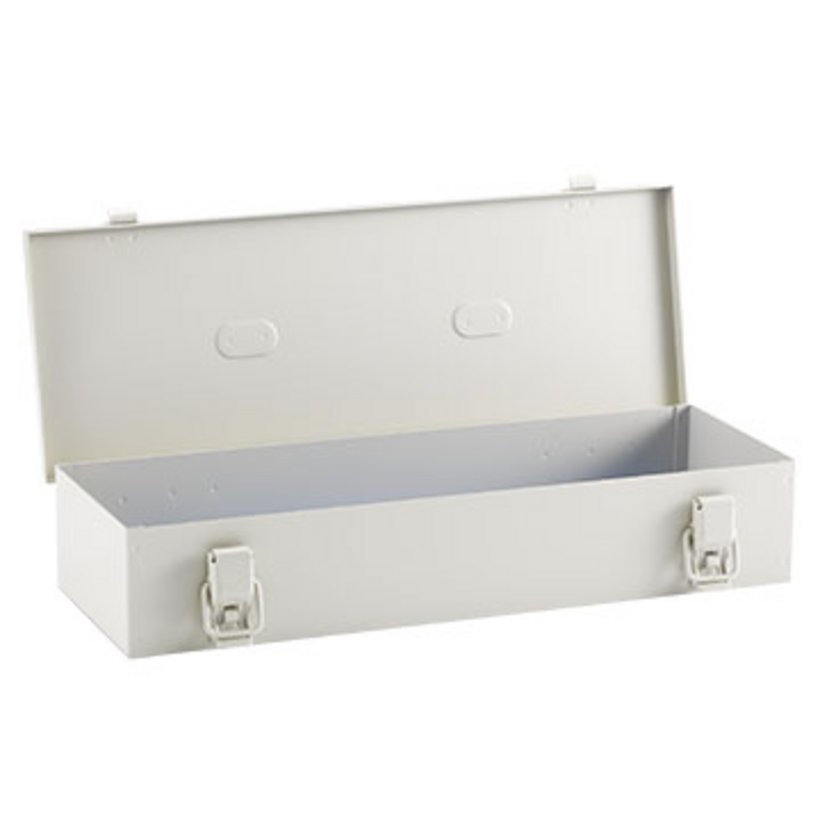

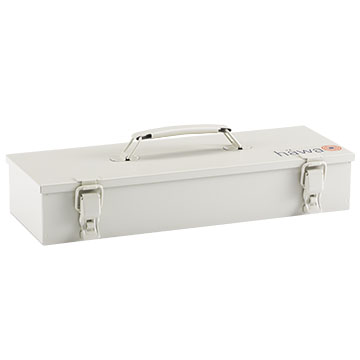

Case for safe storage of pumps.
Technical Data
-
Order No.: 2626-0000-01-00
-
Dimension: 390 x 150 x 85 mm
-
Product range: for mobile devices
-
Type: Empty sheet metal case
-
Weight: 1650 g
-
Type: Powerman Vario
- 1 piece
2626-7200-01-00
Powerman Vario
Type
without punching tools in sheet metal case
Suitable for
round punches up to ø 80 mm / square punches up to 60 mm / rectangular punches up to 85 mm diagonal
Material thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 4 mm
Threaded for
19 mm draw studs
2623-7812-30-00
Round Punch Kit, from PG7 to PG21 + ø 30.5 mm
Product range
for mobile devices
Diameter dimensions
PG round punch in PG: 7;9;11;13;16;21 and ø 30.5 mm
Max. sheet metal thickness
Steel 3 mm
Draw stud
ø 9,5 mm
Type
without draw studs
2623-7812-50-00
Round Punch Kit, Metric from M12 to M50
Product range
for mobile devices
Diameter dimensions
metric: metric round punches in mm: ø 12,2; 16,2; 20,2; 25,2; 32,2; 40,2; 50,2
Max. sheet metal thickness
Steel 3 mm
Draw stud
ø 9,5 mm / ø 19 mm
Type
without draw studs
2623-7812-60-00
Round Punch Kit from PG7 to PG48 + ø 30.5 mm
Product range
for mobile devices
Diameter dimensions
PG round punches in PG: 7;9;11;13;16;21;29;36;42;48 and ø 30.5 mm
Max. sheet metal thickness
Steel 3 mm
Draw stud
ø 9,5 mm / ø 19 mm
Type
without draw studs
2626-7200-01-00
Powerman Vario
Type
without punching tools in sheet metal case
Suitable for
round punches up to ø 80 mm / square punches up to 60 mm / rectangular punches up to 85 mm diagonal
Material thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 4 mm
Threaded for
19 mm draw studs
2682-7816-50-26
Round Punch Plus Kit, Metric from M16 to M50
Product range
for mobile devices
Size
metric round punch in mm: ø 16.2; ø 20.2; ø 25.2; ø 32.2; ø 40.2; ø 50.2
Max. sheet metal thickness
Stainless steel 2,5 mm
Draw stud
ø 9,5 mm / ø 11,1 mm und ø 19 mm
2683-7812-30-20
Round Punch Kit, from PG7 to PG21 + ø 30.5 mm
Product range
for mobile devices
Diameter dimensions
PG round punch in PG: 7;9;11;13;16;21 and ø 30.5 mm
Max. sheet metal thickness
Steel 3 mm
Draw stud
ø 9,5 mm
Type
with draw studs
2683-7812-50-20
Round Punch Kit, Metric from M12 to M50
Product range
for mobile devices
Diameter dimensions
metric: metric round punches in mm: ø 12,2; 16,2; 20,2; 25,2; 32,2; 40,2; 50,2
Max. sheet metal thickness
Steel 3 mm
Draw stud
ø 9,5 mm / ø 19 mm
Type
with draw studs
2683-7812-60-30
Round Punch Kit from PG7 to PG48 + ø 30.5 mm
Product range
for mobile devices
Diameter dimensions
PG round punches in PG: 7;9;11;13;16;21;29;36;42;48 and ø 30.5 mm
Max. sheet metal thickness
Steel 3 mm
Draw stud
ø 9,5 mm / ø 19 mm
Type
with draw studs
