2665-0000-10-04

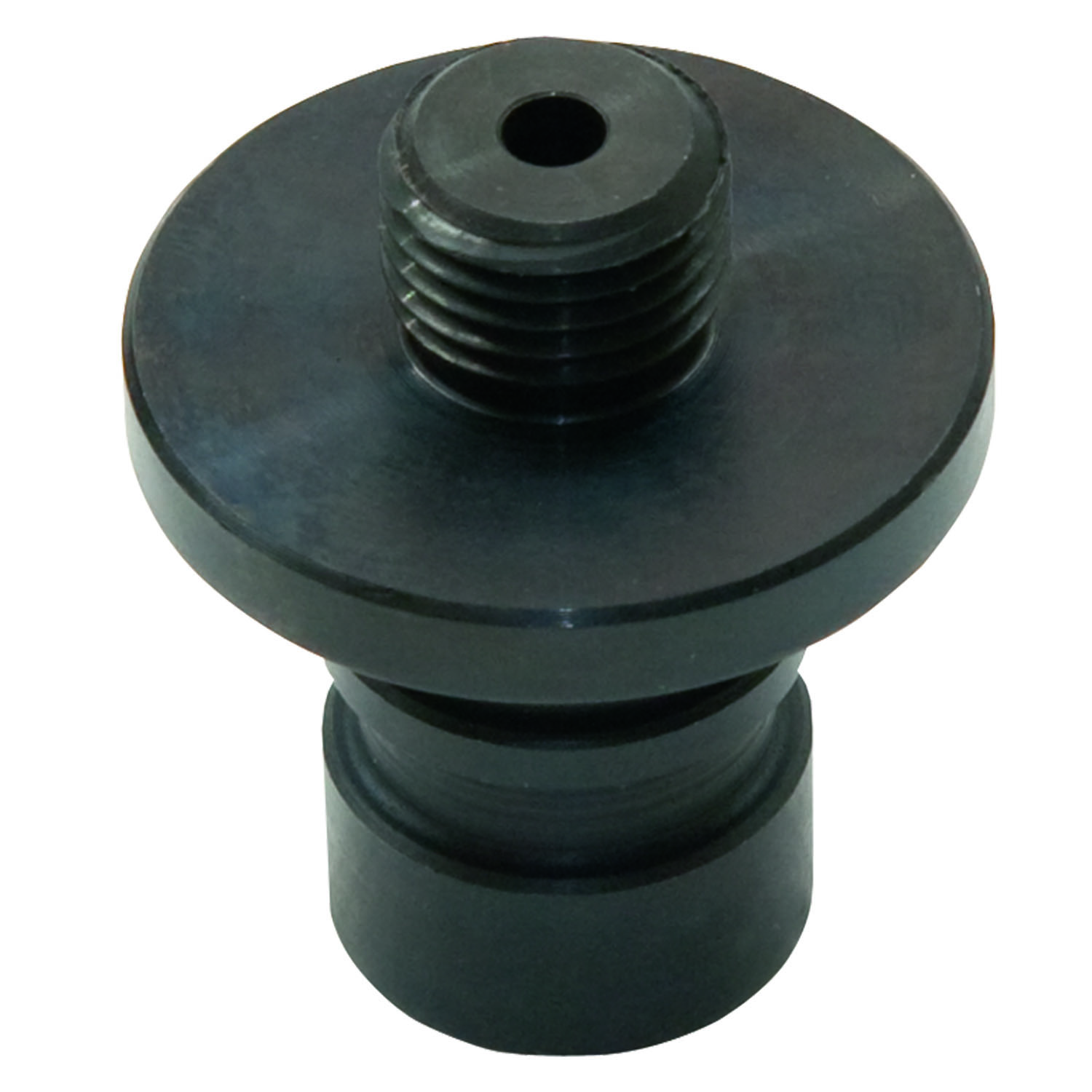

Adapter for Quick-Press 400
Product description
For holding round punches from ø 20.4 mm in bow punch Quick-Press 400
The adapter in the bow punch is aligned via a ø 20 mm clamping pin
Clamping pin with two recesses
Adapter with M14x1.5 thread to hold the punch
The adapter can either be inserted at the bottom of the bow punch or at the top of the hydraulic cylinder
Technical data
-
Article number: 2665-0000-10-04
-
Product family: For workshop equipment
-
PRODUKTGRUPPENNAMEEBENE6: Accessories Quick-Press 400
-
Clamping spigot: ø 20 mm/0,79"
-
Thread punch holder: M14x1,5
- 1 adapter
2665-0000-10-00
Quick-Press 400
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2,5 mm; 13 ga / Stainless steel to 1,75 mm; 15 ga / Aluminum to 3 mm; 9 ga
Processing depth
400 mm
Punch holder (diameter)
20 mm
2665-0000-10-00
Quick-Press 400
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2,5 mm; 13 ga / Stainless steel to 1,75 mm; 15 ga / Aluminum to 3 mm; 9 ga
Processing depth
400 mm
Punch holder (diameter)
20 mm
