2643-7100-81-05

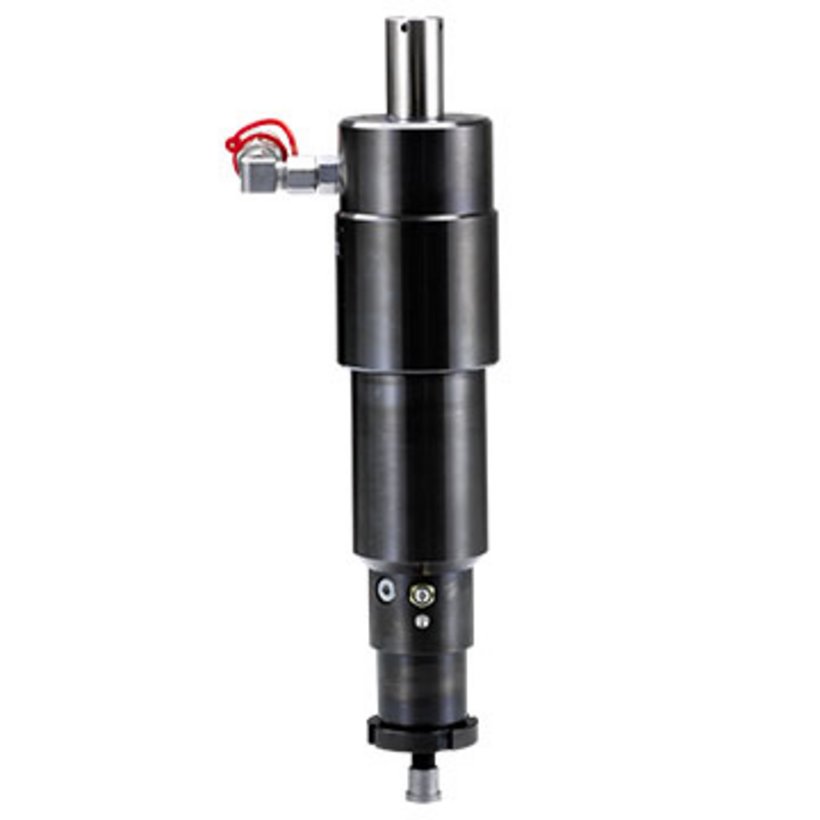

Hydraulic Cylinder for Maxi-Press 500
Product description
Hydraulic cylinder for bow punch Maxi-Press 500.
Equipped with a quick release coupling for connection to häwa hydraulic pumps.
Our product does work with other manufacturers pumps.
Punch adapter with 20 mm diameter clamping pin.
Technical data
-
Article number: 2643-7100-81-05
-
Product family: For workshop equipment
-
PRODUKTGRUPPENNAMEEBENE6: Accessories Maxi-Press 500
-
Stamp recording: ø 20 mm; 0.79“
Notice
- For all Maxi-Press Plus and Maxi-Press 500 bow punches.A laser punch center point indicator (type 2662-7105-80-02) can be retrofitted.
- 1 hydraulic cylinder with quick release coupling and adapter for Maxi-Press 500.
2643-7105-00-00
Hydraulic Maxi-Press 500
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Processing depth
500 mm
Punch holder (diameter)
20 mm
2643-7106-00-00
Hydraulic Maxi-Press 500 with center point indicator
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Processing depth
500 mm
Punch holder (diameter)
20 mm
2643-7105-00-00
Hydraulic Maxi-Press 500
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Processing depth
500 mm
Punch holder (diameter)
20 mm
2643-7106-00-00
Hydraulic Maxi-Press 500 with center point indicator
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Processing depth
500 mm
Punch holder (diameter)
20 mm
